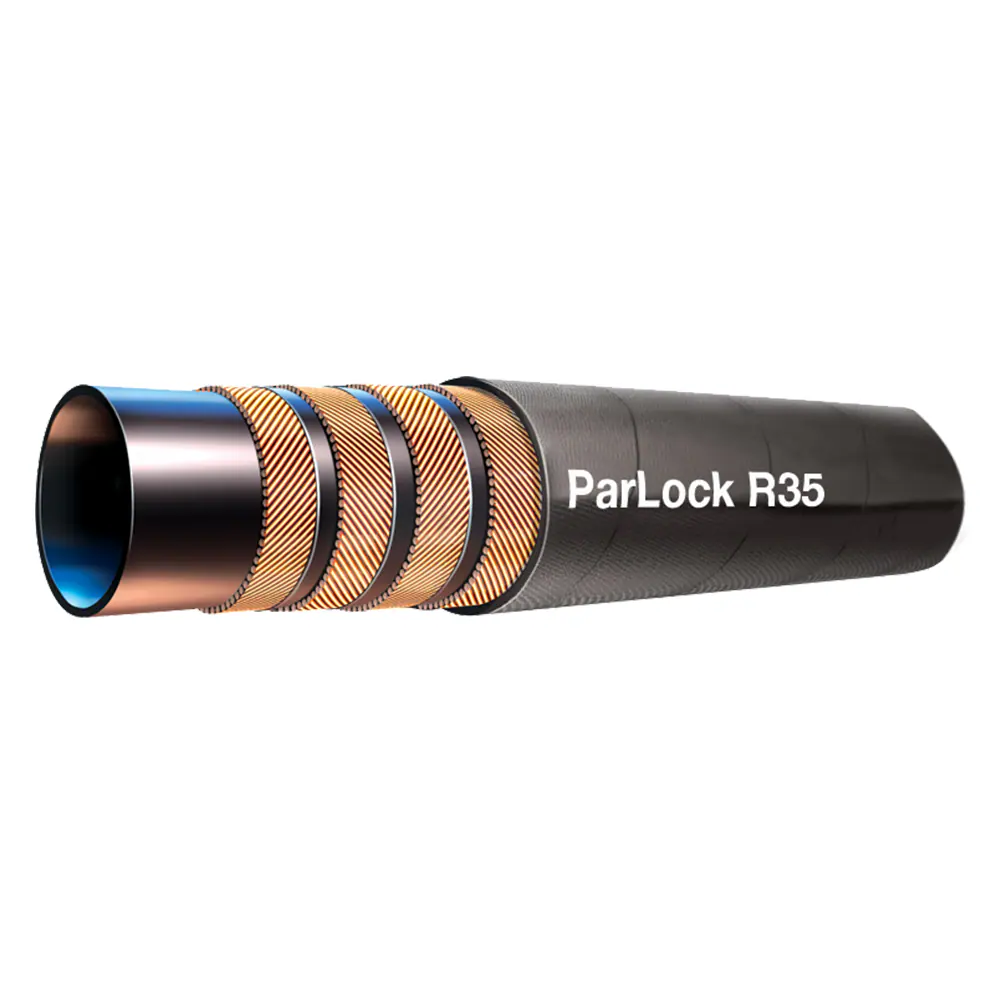

R35/R35TC/RS35TC
Certification: ISO 3862, Type R13 (Parker Specifications), ISO 3862, Type R13
Description
Technical Specifications
| Weight: | 1.00 to 6.72 lb/ft, 1.5 to 10.0 kg/m |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Hose Inner Tube Material: | Synthetic Rubber |
| Brand: | Parker |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Maximum Operating Pressure: | 210 to 350 bar, 3040 to 5000 psi, 21.0 to 35.0 MPa |
| Product Type: | Constant Working Pressure Hose, Hydraulic Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Synthetic Rubber, Synthetic Rubber High Abrasion Resistant, MSHA approved |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Product Style: | ParLock Multispiral |
| Minimum Bend Radius: | 220 to 900 mm, 8.661 to 35.433 inch |
| Materials of Construction: | Rubber |
| Specifications Met: | ISO 3862, Type R13 (Parker Specifications), ISO 3862, Type R13 |
| Compatible Fitting: | V4 Series (internal and external skiving; sizes -12 up to -20), V6 Series (internal and external skiving; sizes -24 up to -48) |
| Inside Diameter: | 3/4 to 3 inch, 19.1 to 76.2 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | High Pressure Hydraulics |
| Hose Reinforcement Material: | 4 or 6 Spirals of High Tensile Steel Wire |
| Outside Diameter: | 1.260 to 3.779 inch, 32.00 to 96.00 mm |
| Media: | Air (General Industrial Air), Coolants (Glycol, Coolants (Glycol), Fuels – Check fuel type with our catalogue chart., Petroleum Hydraulic Fluids |
Additional information
| Part Number | R35-12, R35-16, R35-20, R35-24, R35-32 |
|---|
