126
NSF 51 Listed Certified to 180°F (80°C), USP Class VI
Description

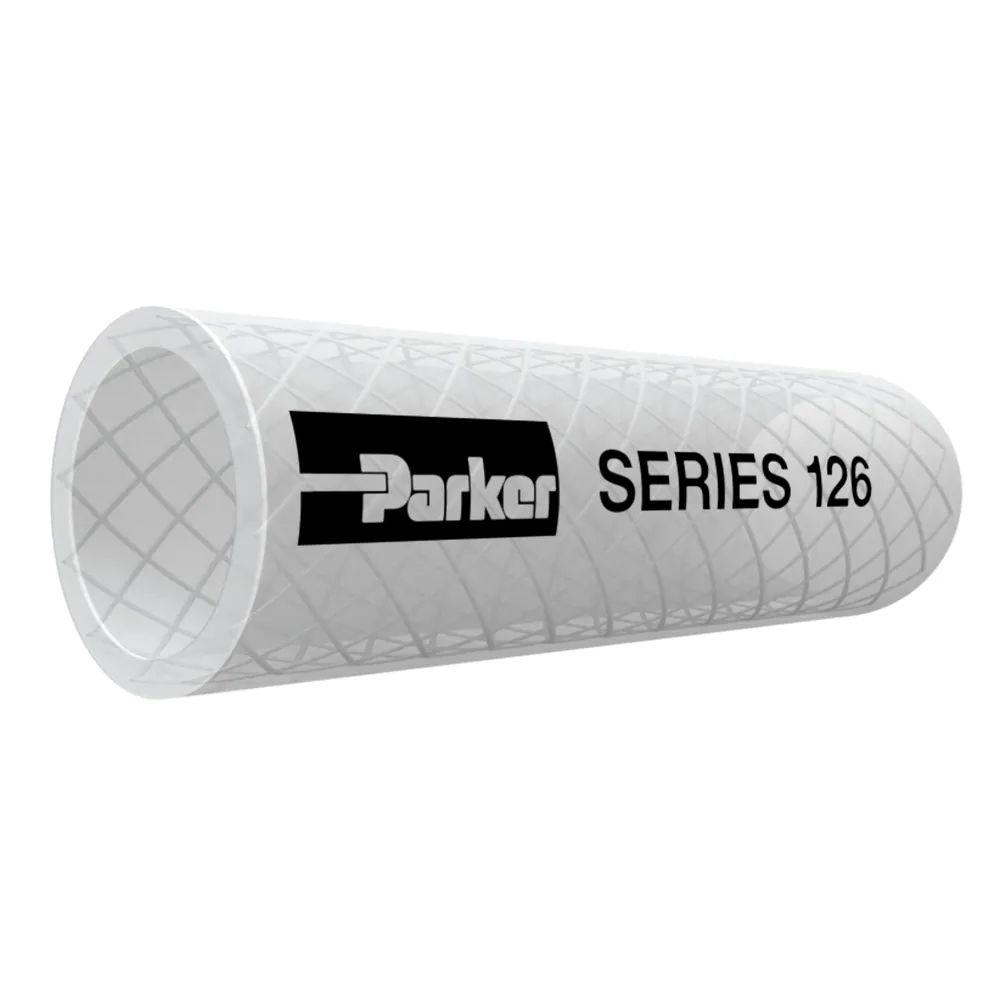

Nexbraid PVC Clear Heavy Duty General Service Hose is designed for transfer of abrasives, air, food particulates, sanitary products and potable water in applications to 150°F and 350 psi, Series 126
Technical Specifications
| Cover Material: | PVC |
| Maximum Operating Pressure: | 100 to 350 psi, 0.7 to 2.4 MPa, 100 to 350 inch |
| Length per Package: | 100 to 300 ft, 100 to 300 mm |
| Cover Color: | Transparent, Blue |
| Media: | Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water |
| Inside Diameter: | 1/4 to 1-1/2 inch, 6.4 to 38.1 mm |
| Weight: | 0.01 to 0.11, 0.08 to 0.77 lb/ft, 0.01 to 0.11 kg/m |
| Outside Diameter: | 0.500 to 2.000 inch, 12.7 to 50.8 mm |
| Specifications Met: | NSF 51 Listed Certified to 180°F (80°C), USP Class VI |
| Nominal Hose Inside Diameter: | 8 to 40 mm |
| Hose Reinforcement Material: | 2 Plies of Textile |
| Application: | Air, Multipurpose |
| Size: | -4 to -20 |
| Package Type: | Coil |
| Division: | Hose Products Division |
| Minimum Bend Radius: | n/a |
| Cover Structure: | Smooth |
| Minimum Operating Temperature: | 25 °F, -5 °C |
| Maximum Operating Temperature: | 150 °F, 65 °C |
| Vacuum Pressure Rating: | Light |
| Hose Inner Tube Material: | Clear, PVC |
Additional information
| Part Number | 126-04000300, 126-08000300, 126-12000200 |
|---|
