128
NSF, FDA
Description

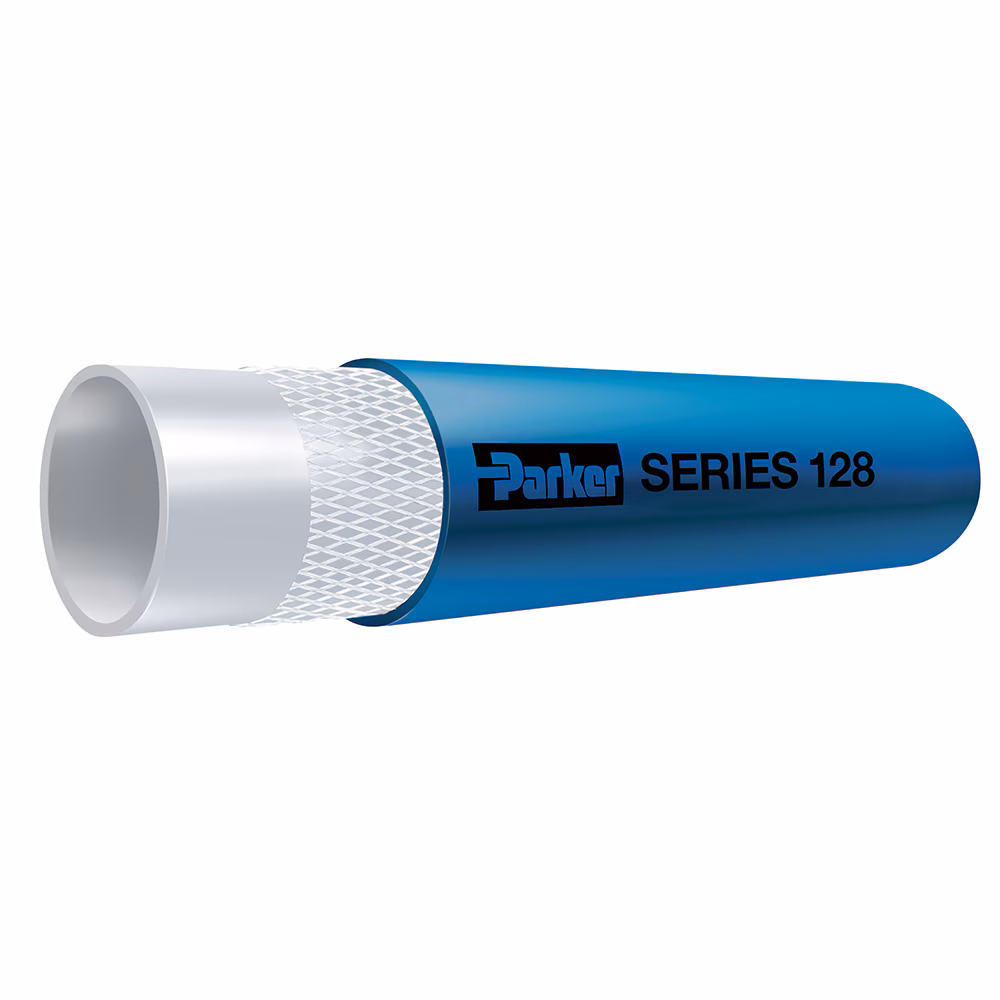

Nexbraid PVC Potable Water By-Pass Hose is designed as a temporary conduit for water supply during construction, maintenance and repair of pipe to 150°F and 250 psi, Series 128
Technical Specifications
| Cover Material: | PVC |
| Maximum Operating Pressure: | 75 to 250 psi, 0.5 to 1.7 MPa |
| Application: | Water |
| Weight: | 0.03 to 0.13 kg/m, 0.21 to 0.97 lb/ft |
| Nominal Hose Inside Diameter: | 17.5 to 50 mm |
| Specifications Met: | NSF, FDA |
| Inside Diameter: | 15.9 to 50.8 mm, 5/8 to 2 inch |
| Outside Diameter: | 23.6 to 63.3 mm, 0.931 to 2.490 inch |
| Hose Reinforcement Material: | 2 Plies of Textile |
| Package Type: | Coil |
| Size: | -10 to -32 |
| Hose Inner Tube Material: | Clear/Blue Tint, PVC |
| Cover Color: | Blue |
| Cover Structure: | Smooth |
| Minimum Operating Temperature: | -13 °F, -25 °C |
| Maximum Operating Temperature: | 150 °F, 65 °C |
| Length per Package: | 100 to 300 ft |
| Minimum Bend Radius: | n/a |
Additional information
| Part Number | 128-10006200, 128-20006100 |
|---|
