2022N (High pressure aramid EU)
API 17E, API 17En, ISO 13628-5
Description

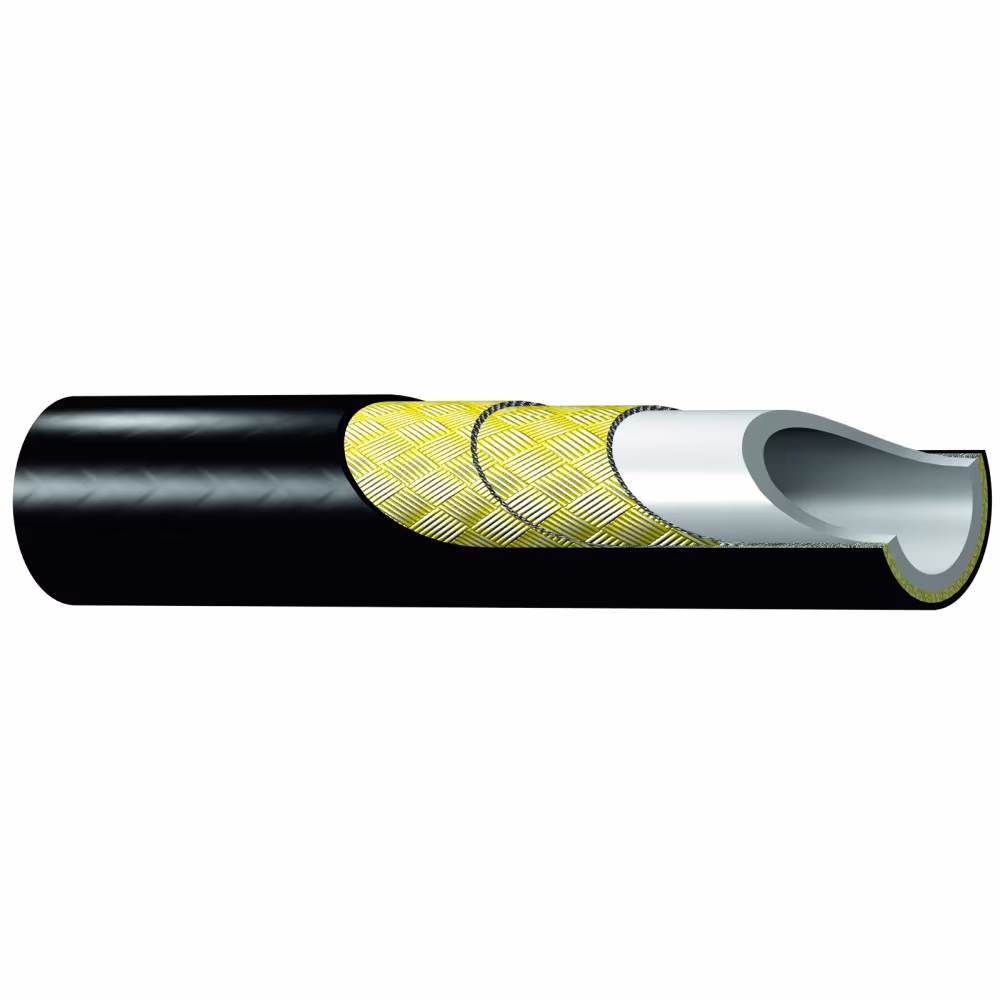

Parker 2022N Hoses for the Oil & Gas industry are designed for safety, versatility and efficiency, matching the tough requirements and expectations of the market place. For working pressure up to 103.5MPa, 15000 psi.
Technical Specifications
| Weight: | 0.07 to 0.22 lb/ft, 0.10 to 0.33 kg/m |
| Industry: | General Industrial, Oil & Gas |
| Hose Inner Tube Material: | Methanol Washed Polyamide 11 |
| Brand: | Parker |
| Maximum Operating Temperature: | 131 °F, 55 °C |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Product Type: | Hydraulic Hose, Transfer Hose, Water Blast Hose, Water Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Polyamide |
| Design Factor: | 3.33 to 4:1 |
| Division: | Polymer Hose Division Europe |
| Product Style: | High Pressure Aramid Hose |
| Materials of Construction: | Thermoplastic |
| Minimum Bend Radius: | 2 to 8 inch, 50 to 200 mm |
| Media: | Petroleum Hydraulic Fluids |
| Specifications Met: | API 17E, API 17En, ISO 13628-5 |
| Compatible Fitting: | AH Series, 8X Series, LX Series, AM Series, LX Series, AH Series |
| Inside Diameter: | 1/4 to 1/2 inch, 6.3 to 12.8 mm |
| Maximum Operating Pressure: | 345 to 1035 bar, 34.5 to 103.5 MPa, 5000 to 15000 psi |
| Application: | Offshore, Oil & Gas |
| Hose Reinforcement Material: | Braid of high tensile aramid fiber |
| Outside Diameter: | 0.46 to 0.91 inch, 11.8 to 23.2 mm |
Additional information
| Part Number | 2022N-04V91-5K-PA, 2022N-04V91-10K-PA, 2022N-04V91-15K-PA, 2022N-06V91-5K-PA, 2022N-06V91-10K-PA, 2022N-08V91-5K-PA, 2022N-08V91-10K-PA |
|---|
