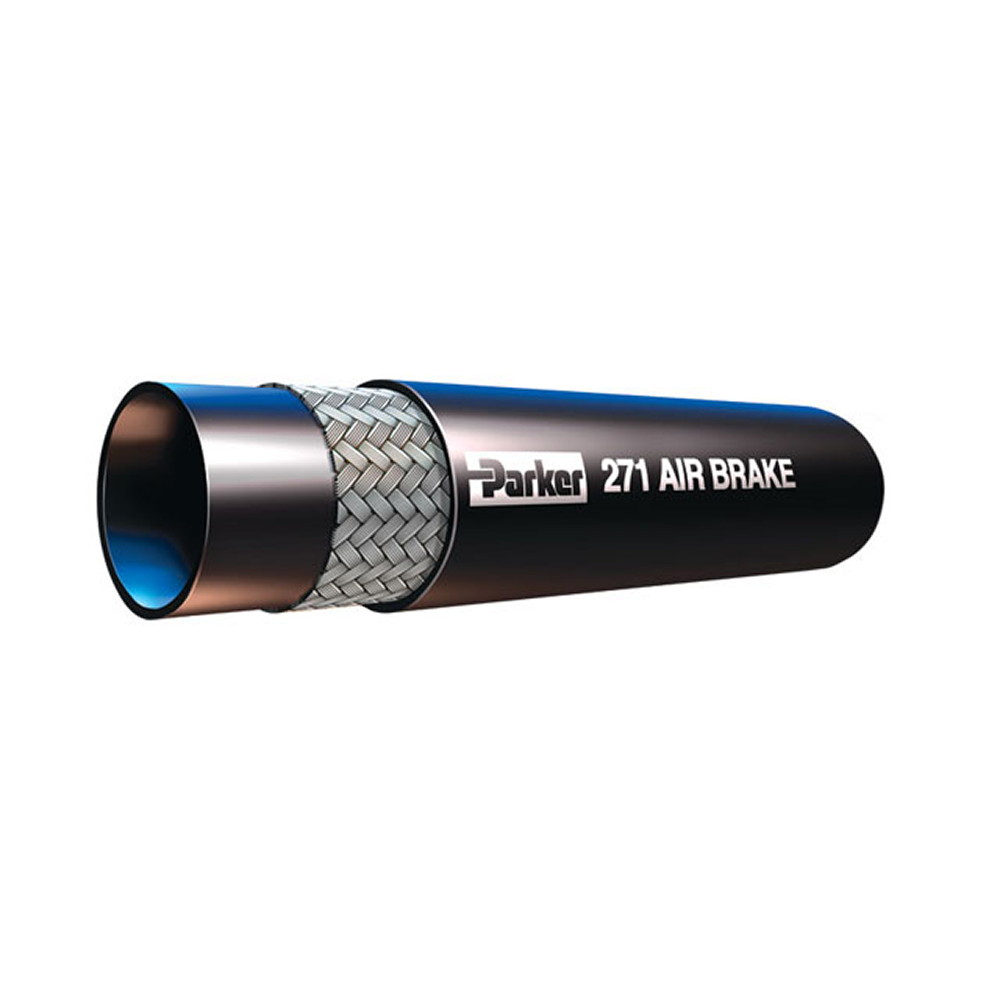

271
Certification: D.O.T. FMVSS 106, Class A Air Brake, SAE J1402, Class A
Description
Parker’s 271 hose is a transportation air brake hose is capable of being crimped in the field as a replacement for factory-only made hose assemblies.
Technical Specifications
| Media: | Air (Compressed Air with traces of Oil) |
| Specifications Met: | D.O.T. FMVSS 106, Class A Air Brake, SAE J1402, Class A |
| Compatible Fitting: | 25 Series |
| Maximum Operating Pressure: | 16 bar, 1.6 MPa, 225 psi |
| Weight: | 0.30 to 0.39 kg/m, 0.20 to 0.26 lb/ft |
| Inside Diameter: | 3/8 to 1/2 inch, 10 to 12.5 mm |
| Application: | Agriculture Equipment, Forestry, Hydraulics, Transportation |
| Hose Reinforcement Material: | 1 or Multiple Braids of Fiber |
| Size: | -6 to -8 |
| Outside Diameter: | 0.75 to 0.88 inch, 19 to 22 mm |
| Hose Inner Tube Material: | Synthetic Rubber |
| Cover Material: | Synthetic Rubber |
| Minimum Operating Temperature: | -50 °F, -46 °C |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Hose Cover Type: | Standard Cover |
| Minimum Bend Radius: | 1-3/4 to 2 inch, 45 to 50 mm |
Additional information
| Part Number | 271-6, 271-8 |
|---|
