450

RoHS 2011/65/EC

Category:

Description

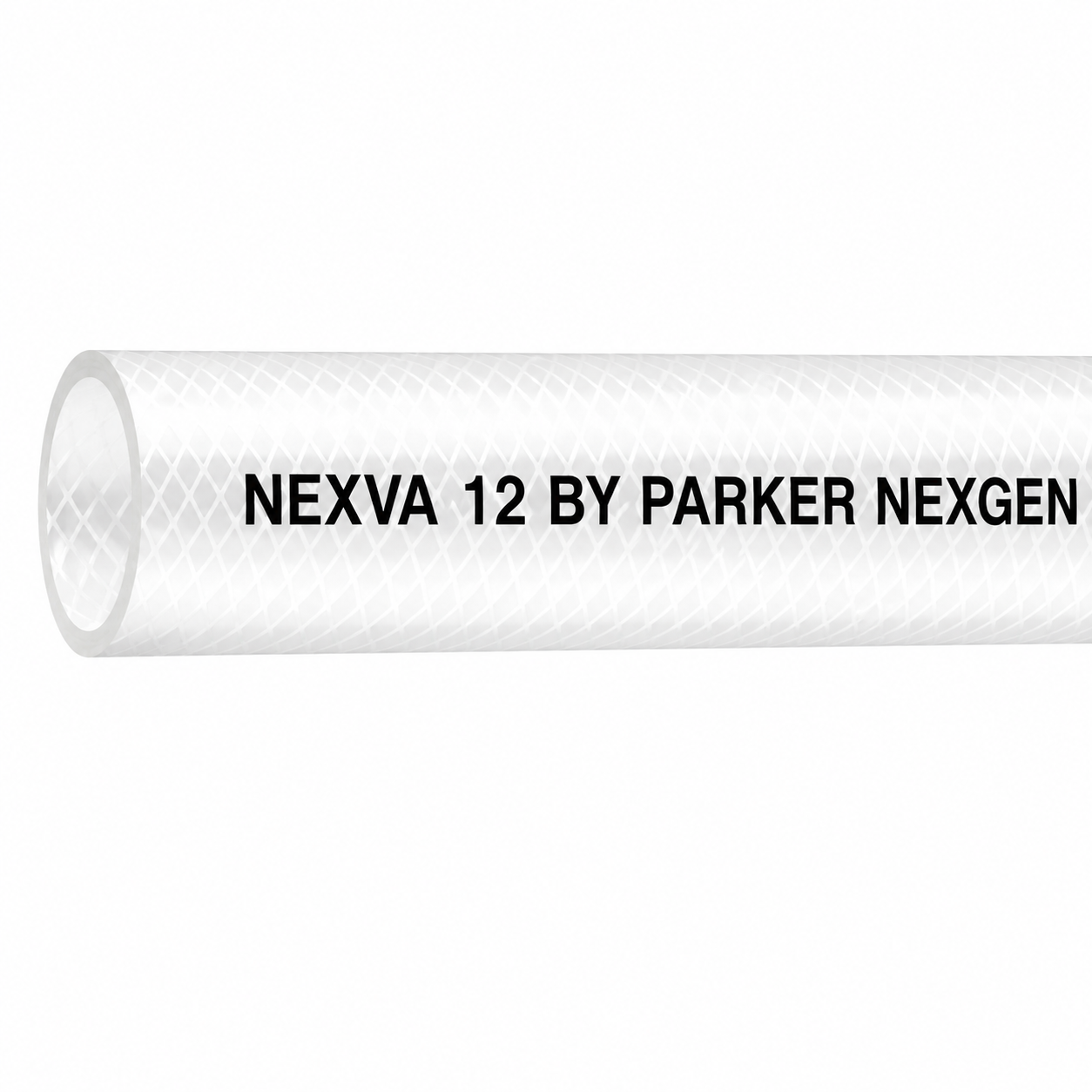

Nexva EVA Clear General Service Hose is designed for transfer of abrasives, anhydrous ammonia, chemicals, herbicides, insecticides, water and various media in applications to 125°F and 300 psi, Series 450

Technical Specifications

Cover Material: Ethyl Vinyl Acetate (EVA)
Maximum Operating Pressure: 150 to 300 psi, 10.3 to 20.7 bar at 20°C
Application: Chemical Transfer
Cover Color: Transparent, Semi-Translucent Natural
Media: Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water
Specifications Met: RoHS 2011/65/EC
Nominal Hose Inside Diameter: 8 to 25 mm
Compatible Fitting: n/a
Inside Diameter: 6.4 to 25.4 mm, 1/4 to 1 inch
Outside Diameter: 9.9 to 33.3 mm, 0.390 to 1.310 inch
Size: -4 to -16
Hose Reinforcement Material: 2 Plies of Textile
Package Type: Coil
Hose Inner Tube Material: Semi-translucent Natural, Ethyl Vinyl Acetate (EVA)
Minimum Operating Temperature: -50 °F, -45 °C
Maximum Operating Temperature: 125 °F, 52 °C
Vacuum Pressure Rating: Light
Weight: 0.03 to 0.25 lb/ft, 0.04 to 0.37 kg/m
Length per Package: 200 to 500 ft
Minimum Bend Radius: n/a

Additional information

Part Number

450-04000500, 450-06000300, 450-08000300, 450-10000300, 450-12000300, 450-16000200
