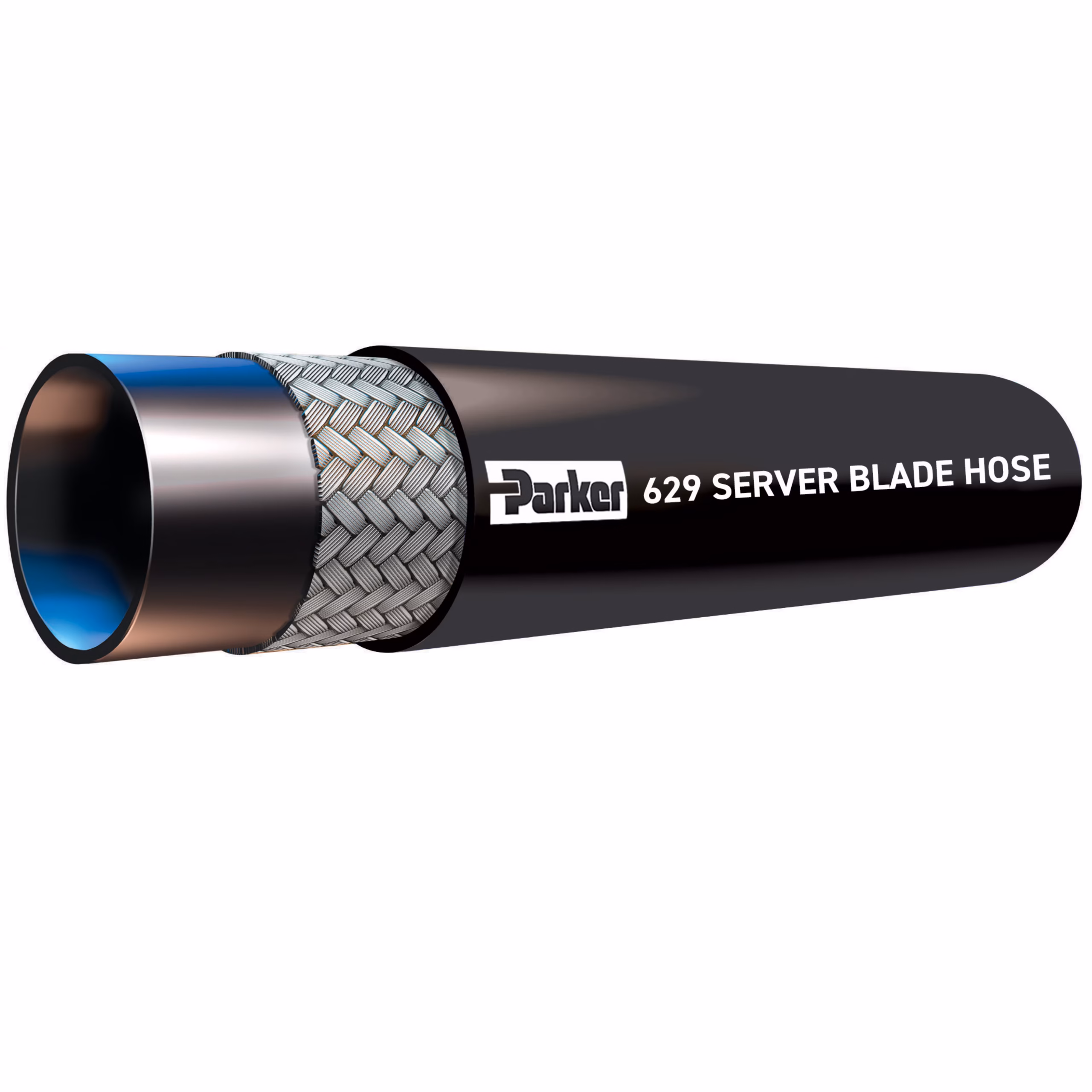

629
Certification: UL94 V-0 Flame Resistance Rating
Description
Parker’s 629 hose has a working pressure of 150 PSI and is the latest addition to our thermal cooling product line. Featuring a peroxide cured EPDM tube, it is ideal for use in thermal management systems.
Technical Specifications
| Cover Material: | Synthetic rubber |
| Hose Cover Type: | Smooth |
| Hose Inner Tube Material: | Black EPDM Peroxide cured |
| Hose Reinforcement Material: | One fiber braid |
| Maximum Operating Pressure: | Up to 150 psi, Up to 1.03 MPa |
| Minimum Bend Radius: | .6, .8 inch, 16.0, 19.1 mm |
| Specifications Met: | UL94 V-0 Flame Resistance Rating |
| Compatible Fitting: | N/A |
| Design Factor: | 4:1 |
| Weight: | .05-.08 lb/ft, .07-.12 kg/m |
Additional information
| Part Number | 629-4-RL, 629-3.5-RL |
|---|
