6724
SAE J20R3 Class A
Description

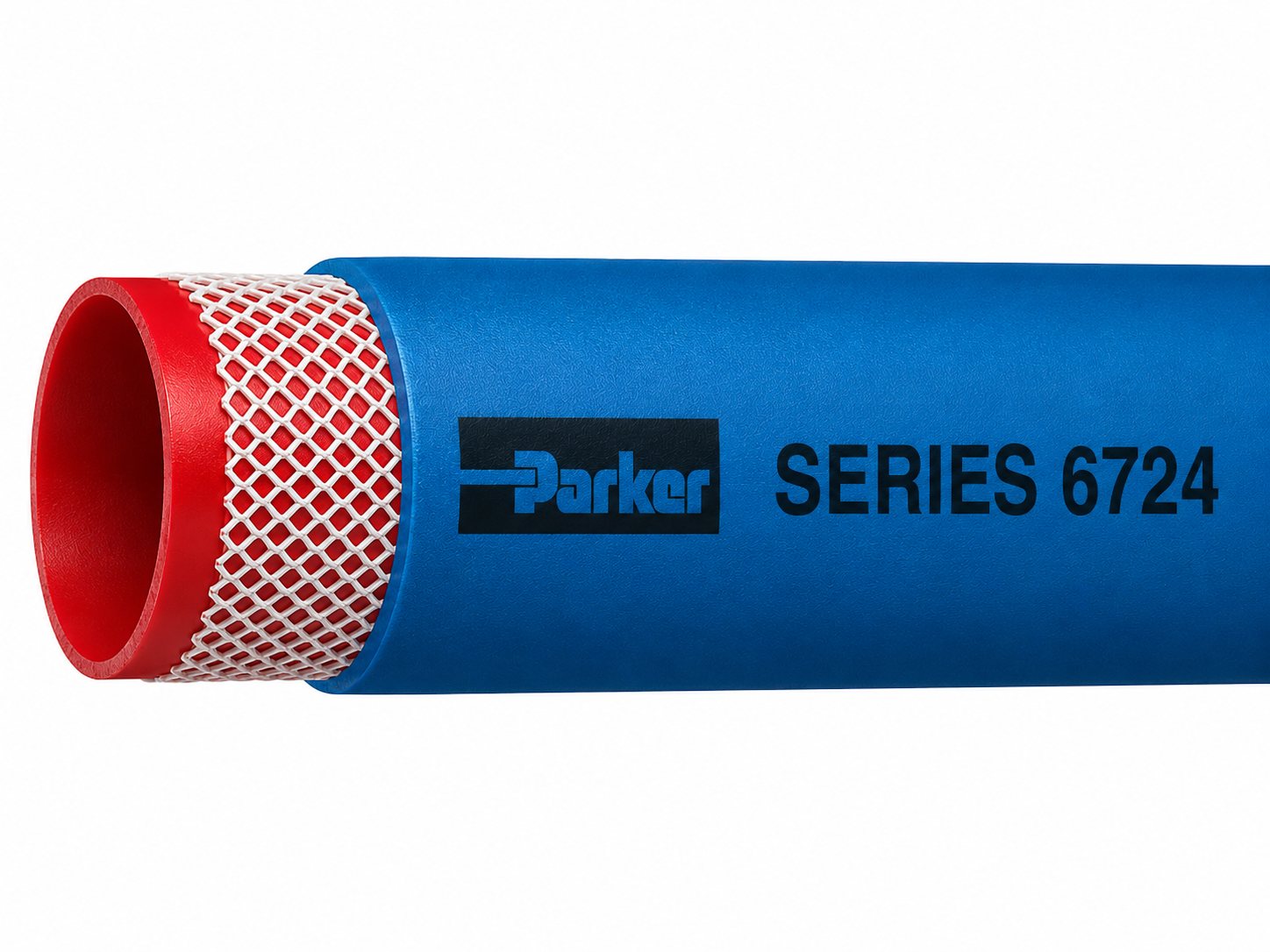

Silicone Extreme High Temperature Heater Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 500°F and 83 psi, Series 6724
Technical Specifications
| Cover Material: | Silicone |
| Application: | Engine |
| Media: | Coolants |
| Inside Diameter: | 0.250 to 0.375 inch, 6.4 to 9.5 mm |
| Maximum Operating Pressure: | 4 to 5.7 bar, 0.4 to 0.6 MPa, 58 to 83 psi |
| Hose Reinforcement Material: | Multiple Plies of High Temperature Textile |
| Package Type: | Carton |
| Outside Diameter: | 0.50 to 0.70 inch, 13.4 to 17.5 mm |
| Size: | -4 to -16 |
| Nominal Hose Inside Diameter: | 8 to 25 mm |
| Hose Inner Tube Material: | Brick Red, Silicone |
| Cover Color: | Blue |
| Cover Structure: | Glossy |
| Minimum Operating Temperature: | -65 °F, -53 °C |
| Maximum Operating Temperature: | 392 °F, 200 °C |
| Weight: | 0.10 to 0.13 lb/ft, 0.15 to 0.19 kg/m |
| Minimum Bend Radius: | 1 inch, 13 to 19 mm |
| Minimum Burst Pressure: | 250 psi, 17 bar |
Additional information
| Part Number | 6724-0250250, 6724-0375250 |
|---|
