6823
SAE J20R5
Description

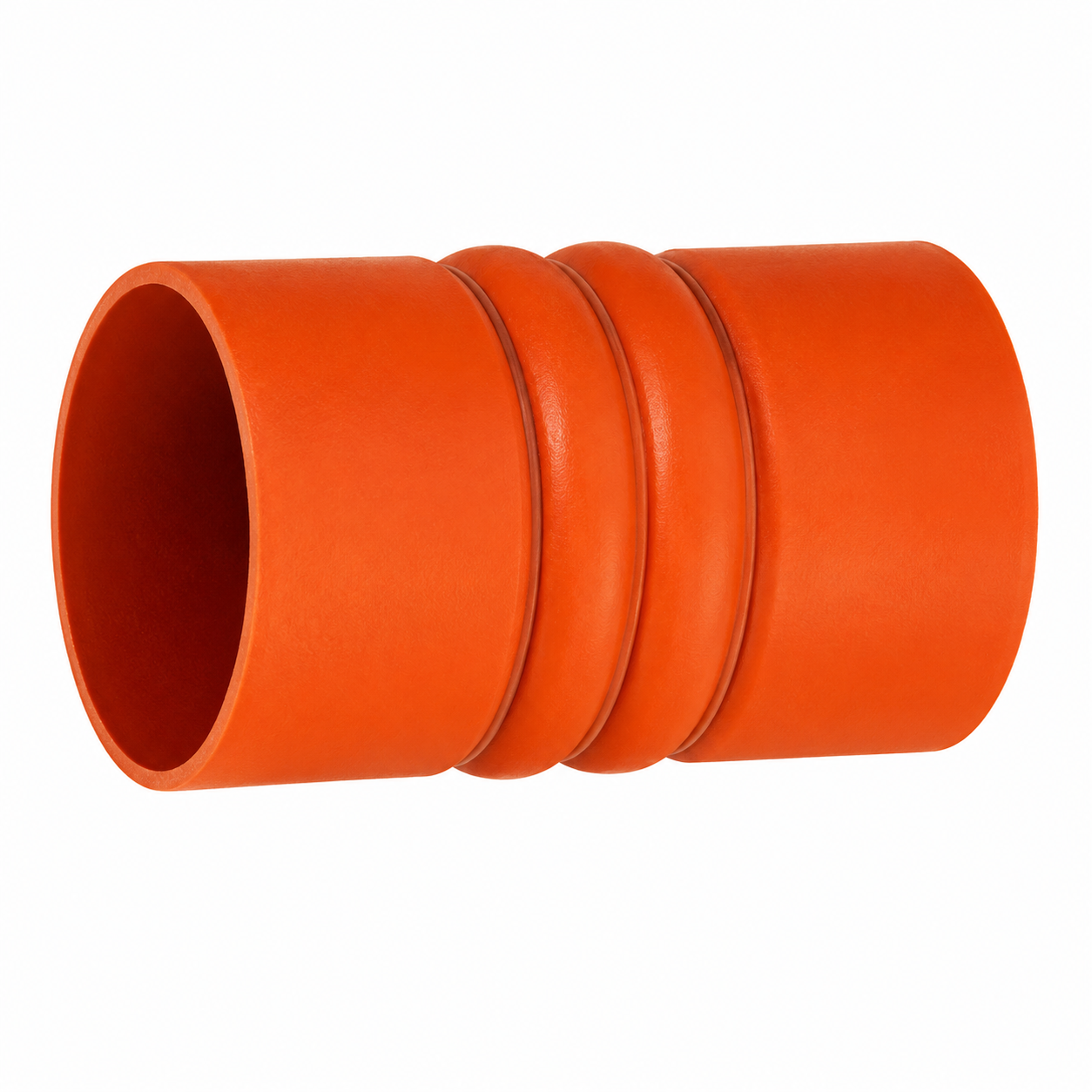

Silicone Extreme High Temperature Charge Air Cooler Hose is designed to connect, align and transfer the hot exhaust air from the charging system of heavy duty engine applications to 500°F and 25 psi, Series 6823
Technical Specifications
| Maximum Operating Temperature: | 200 °C, 392 °F |
| Application: | Engine |
| Maximum Operating Pressure: | 0.6 MPa, 5.5 bar, 80 psi |
| Media: | Coolants |
| Specifications Met: | SAE J20R5 |
| Outside Diameter: | 3.22 to 4.22 inch, 81.8 to 107.2 mm |
| Inside Diameter: | 3 to 4 inch, 76.2 to 101.6 mm |
| Hose Reinforcement Material: | 4 Plies of High Temperature Aramid (with external Stainless Steel Retaining Rings) |
| Hose Inner Tube Material: | Brick Red, Silicone |
| Cover Material: | Silicone |
| Minimum Operating Temperature: | -65 °F, -54 °C |
| Weight: | 0.37 to 0.74 lb/ft, 0.55 to 1.01 kg/m |
| Minimum Burst Pressure: | 80 psi, 5.5 bar |
| Minimum Bend Radius: | n/a |
Additional information
| Part Number | 6823-30006000, 6823-35006000, 6823-40006000, 6823-40008000 |
|---|
