6824

SAE J20R5

Category:

Description

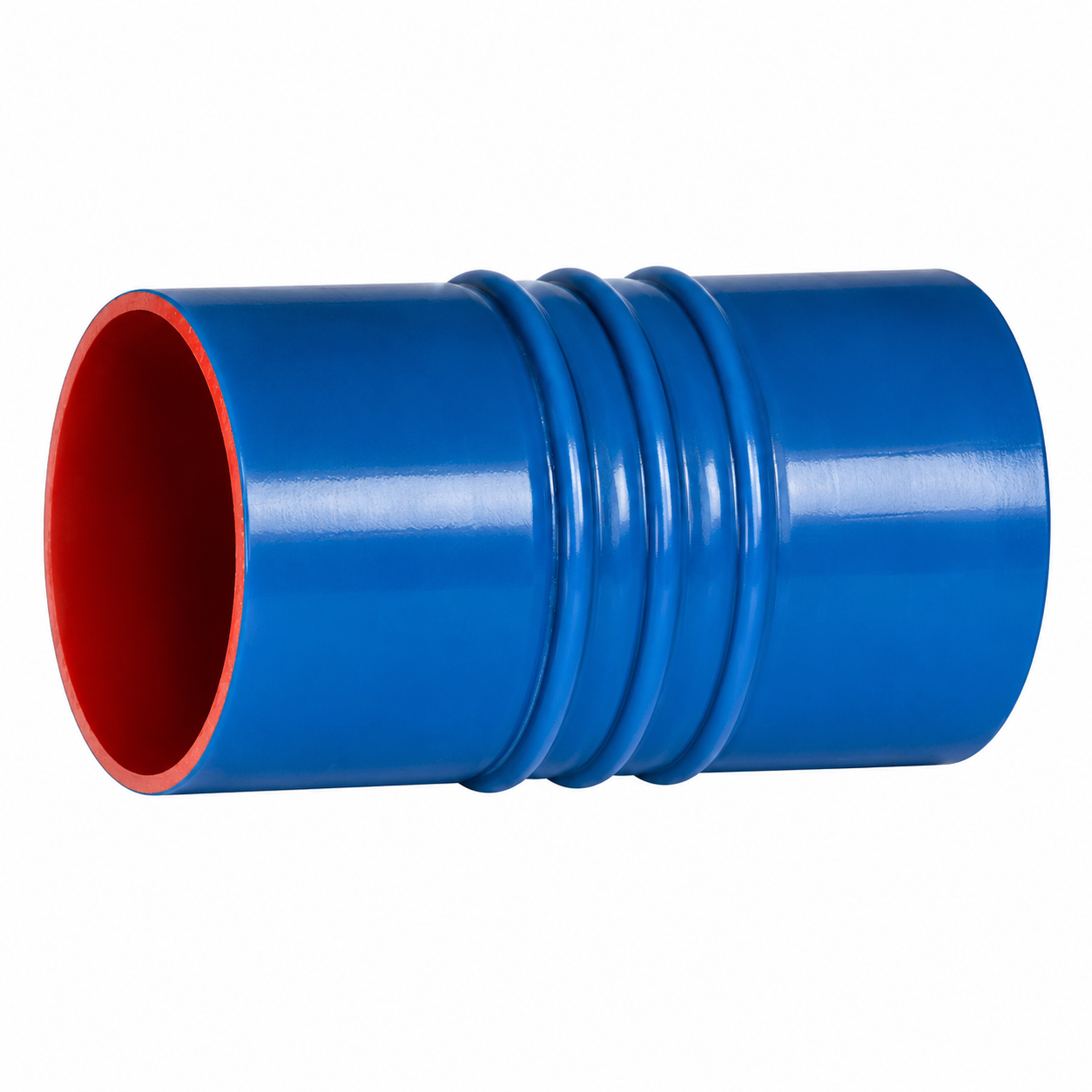

Silicone High Temperature Charge Air Cooler Hose is designed to connect, align and transfer the intake air from the charging system of heavy duty engine applications to 350°F and 25 psi, Series 6824

Technical Specifications

Cover Material: Silicone
Maximum Operating Temperature: 200 °C, 392 °F
Media: Coolants
Application: Engine
Maximum Operating Pressure: 0.6 MPa, 5.5 bar, 80 psi
Inside Diameter: 76.2 to 101.6 mm, 3 to 4 inch
Outside Diameter: 84.3 to 109.7 mm, 3.320 to 4.320 inch
Nominal Hose Inside Diameter: 60 to 100 mm
Size: -48 to -64
Specifications Met: SAE J20R5
Hose Reinforcement Material: 4 Plies of High Temperature Textile (with external Stainless Steel Retaining Rings)
Hose Inner Tube Material: Brick Red, Silicone
Cover Color: Blue
Minimum Operating Temperature: -65 °F, -54 °C
Weight: 0.37 to 0.74 lb/ft, 0.05 to 0.10 kg/m
Minimum Burst Pressure: 80 psi, 5.5 bar
Minimum Bend Radius: n/a

Additional information

Part Number

6824-30006000, 6824-35006000, 6824-40006000, 6824-40008000
