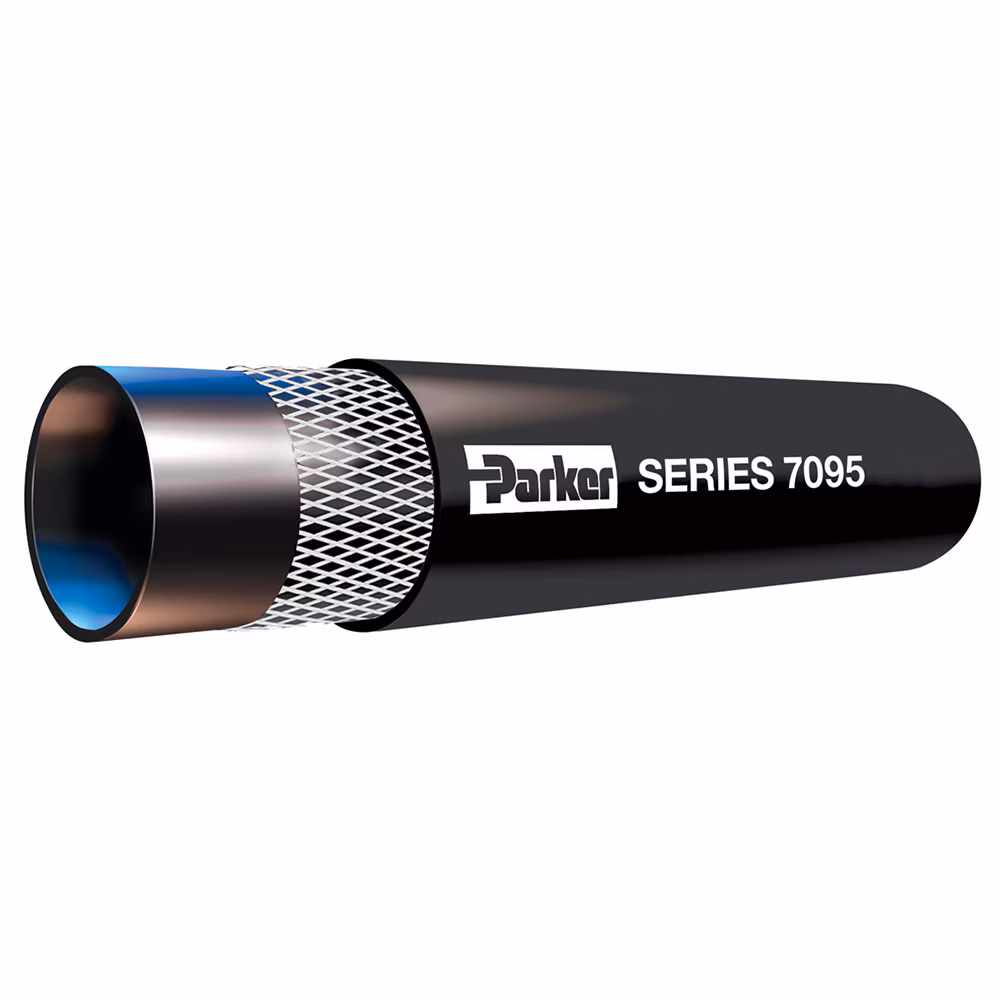

7095

ISO 6134, Type 2

Category:

Description

MPT II Nonconductive Multipurpose Oil Resistant Hose is designed for transfer of air, mild chemicals, oil and water in applications to 212°F and 300 psi

Technical Specifications

Cover Color: Black, Red
Media: Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water
Specifications Met: n/a
Inside Diameter: 1/4 to 1-1/2 inch, 6.4 to 31.8 mm
Maximum Operating Temperature: 100 °C (Other Media), 70 °C (Air), 158 °F (Air), 212 °F (Other Media)
Application: Air, Multipurpose, Non-conductive
Hose Reinforcement Material: Mutiple Plies of Textile
Minimum Bend Radius: 2 to 10 inch, 50.8 to 254 mm
Outside Diameter: 0.50 to 2.03 inch, 12.7 to 51.6 mm
Size: -4 to -24
Hose Inner Tube Material: Black (ARPM Class A Oil Resistance), Nitrile (ARPM Class A Oil Resistance)
Cover Material: Chloroprene Rubber (CR)
Minimum Operating Temperature: -20 °F, -29 °C
Nominal Hose Inside Diameter: 8 to 40 mm
Weight: 0.10 to 0.90 lb/ft, 0.18 to 10.34 kg/m
Maximum Operating Pressure: 200 to 300 psi, 13.8 to 20.7 bar, 1.4 to 2.1 MPa

Additional information

Part Number

7094-25200, 7094-25300, 7094-31300, 7094-38200, 7094-38300, 7094-50200, 7094-50304, 7094-63304, 7094-75200, 7094-75304, 7094-100200, 7094-100304, 7094-125204, 7094-150204
7095-25300, 7095-31300, 7095-38200, 7095-38300, 7095-50200, 7095-50304, 7095-63304, 7095-75200, 7095-75304, 7095-100200, 7095-100304, 7095-125204, 7095-150204
