Humcer

REACH, RoHS 2011/65/EC

Category:

Description

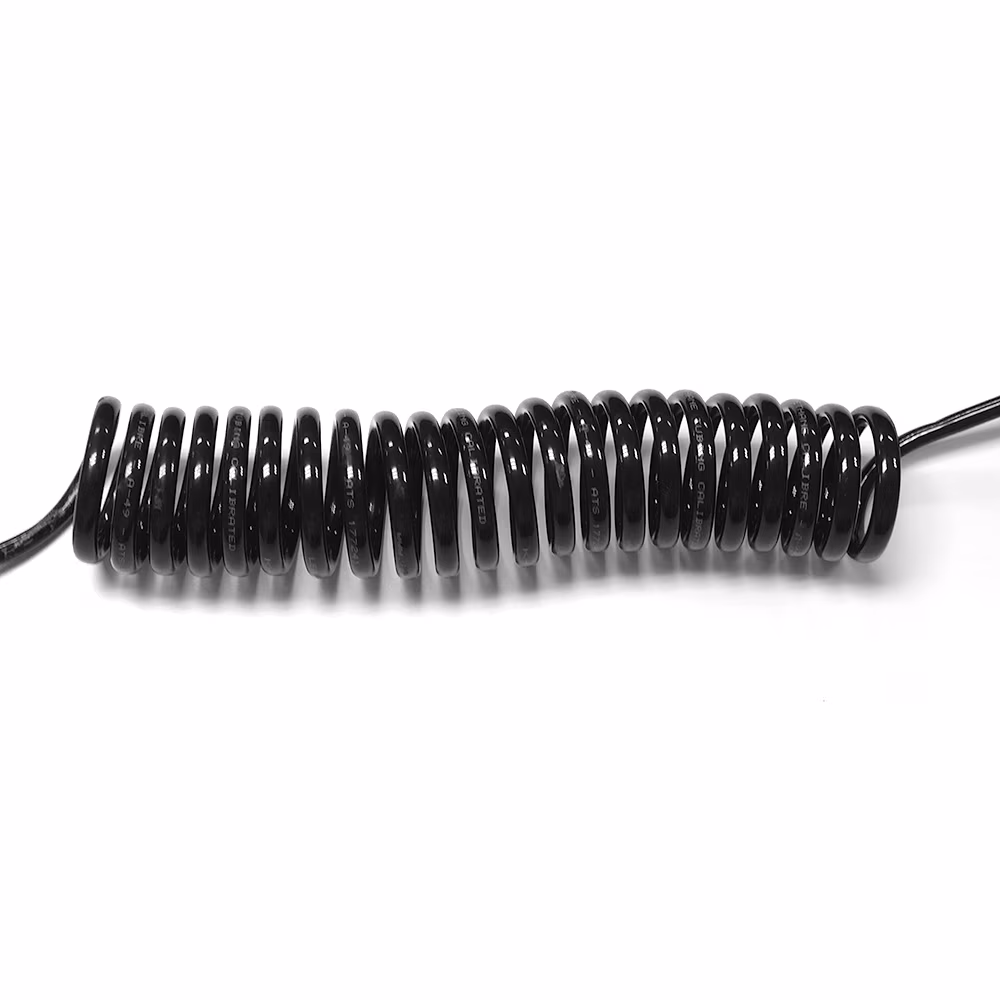

Parker HUMCE Recoil hose is polyurethane recoil with small recoil diameter and good impact resistance.

Technical Specifications

Application: Pneumatics
Maximum Operating Pressure: 1 MPa, 145 psi, 10 bar
Maximum Operating Temperature: 158 °F, 70 °C
Minimum Operating Temperature: -4 °F, -20 °C
Cover Color: Black, Blue
Media: Air (Compressed Air with traces of Oil)
Specifications Met: REACH, RoHS 2011/65/EC
Compatible Fitting: Barbed Fittings
Inside Diameter: 2.5 to 8 mm
Hose Reinforcement Material: n/a
Minimum Bend Radius: 10 to 35 mm
Outside Diameter: 4 to 12 mm
Working Length: 2 to 10 m
Weight: 0.0175 to 0.14 kg/m
Diameter: 28 to 84 mm
Cover Material: Polyurethane
Hose Inner Tube Material: Polyurethane

Additional information

Part Number

HUMCE-040201R, HUMCE-040401R, HUMCE-040601R, HUMCE-040801R, HUMCE-041001R, HUMCE-060201R, HUMCE-060401R, HUMCE-060601R, HUMCE-060801R, HUMCE-061001R, HUMCE-080201R, HUMCE-080401R, HUMCE-080601R, HUMCE-080801R, HUMCE-081001R, HUMCE-100201R, HUMCE-100401R, HUMCE-100601R, HUMCE-100801R, HUMCE-101001R, HUMCE-120201R, HUMCE-120401R, HUMCE-120601R, HUMCE-120801R, HUMCE-121001R
HUMCE-040204R, HUMCE-040404R, HUMCE-040604R, HUMCE-040804R, HUMCE-041004R, HUMCE-060204R, HUMCE-060404R, HUMCE-060604R, HUMCE-060804R, HUMCE-061004R, HUMCE-080204R, HUMCE-080404R, HUMCE-080604R, HUMCE-080804R, HUMCE-081004R, HUMCE-100204R, HUMCE-100404R, HUMCE-100604R, HUMCE-100804R, HUMCE-101004R, HUMCE-120204R, HUMCE-120404R, HUMCE-120604R, HUMCE-120804R, HUMCE-121004R
