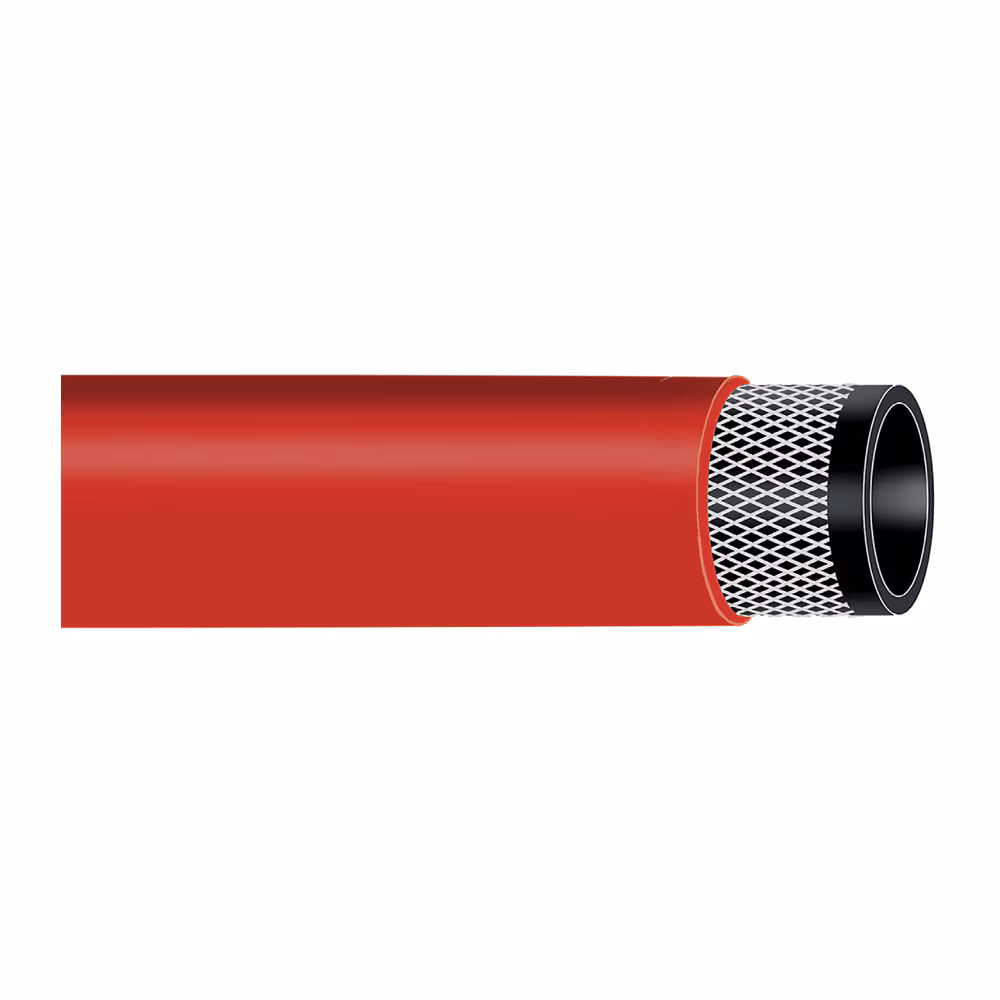

GST II Red 15
Parker Specifications
Description
GST II Red 15 bar is a multipurpose hose extremely versatile and operational.
Technical Specifications
| Weight: | 0.09 to 1.85 lb/ft, 0.13 to 2.76 kg/m |
| Industry: | General Industrial, Off-road Machinery |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Brand: | Parker |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Minimum Operating Temperature: | -40 °F |
| Maximum Operating Pressure: | 1.5 MPa, 15 bar, 200 psi |
| Application: | Air, Multipurpose |
| Product Type: | Air Hose, Transfer Hose, Water Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Design Factor: | 4:1 |
| Division: | Polymer Hose Division Europe |
| Materials of Construction: | Rubber |
| Product Style: | Delivery |
| Minimum Bend Radius: | 2 to 9.843 inch, 50 to 250 mm |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | Refer to www.parker.com/crimpsource-euro |
| Inside Diameter: | 0.256 to 1-1/2 inch, 6.5 to 38 mm |
| Hose Reinforcement Material: | Synthetic Textile Yarn |
| Outside Diameter: | 0.512 to 2.047 inch, 13 to 52 mm |
| Media: | Air (General Industrial Air), Mild Chemicals – Check your fluid compatibility with our catalogue chart. |
Additional information
| Part Number | IH709225200/40, IH709231200/40, IH709250200/40, IH709263200/40, IH709275200/40, IH7092100200/40, IH7092125204/40, IH7092150204/40 |
|---|
