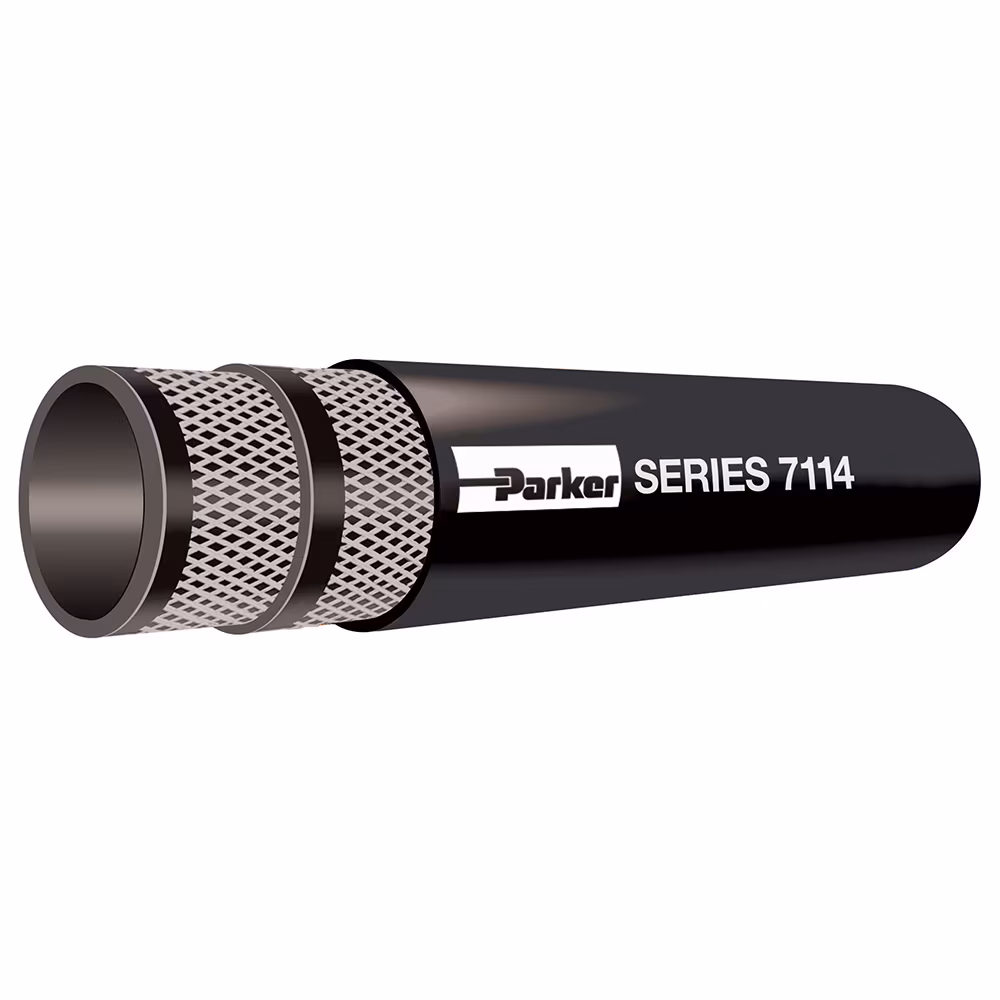

7114
UL330/ULC
Description
Soft-Flex 2000 Softwall Gasoline Dispenser Hose is designed to transfer refined fuels from powered dispensers to 180°F and 50 psi, Series 7114
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Material: | Chloroprene Rubber (CR) |
| Media: | Chemicals (Ethanol), Fuels (Diesel), Fuels (Gasoline), Lubricants (Oils) |
| Application: | Fuel Transfer |
| Specifications Met: | UL, ULC |
| Maximum Operating Pressure: | 0.3447 MPa, 50 psi, 3 bar |
| Inside Diameter: | 5/8 to 1 inch, 15.9 to 25.4 mm |
| Nominal Hose Inside Diameter: | 17.5 to 25 mm |
| Outside Diameter: | 24.4 to 35.3 mm, 0.960 to 1.390 inch |
| Hose Reinforcement Material: | 4 Plies of Textile with Static Wire |
| Package Type: | Reel |
| Minimum Bend Radius: | 127 to 203.2 mm, 5 to 8 inch |
| Size: | -10 to -16 |
| Cover Color: | Black |
| Cover Structure: | Smooth |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Weight: | 0.27 to 0.47 lb/ft, 0.40 to 0.70 kg/m |
| Length per Package: | 250 to 475 ft |
| Hose Inner Tube Material: | Nitrile Butadiene Rubber (NBR) |
Additional information
| Part Number | 7114-75154A, 7114-100154A |
|---|
