7124
UL, ULC
Description

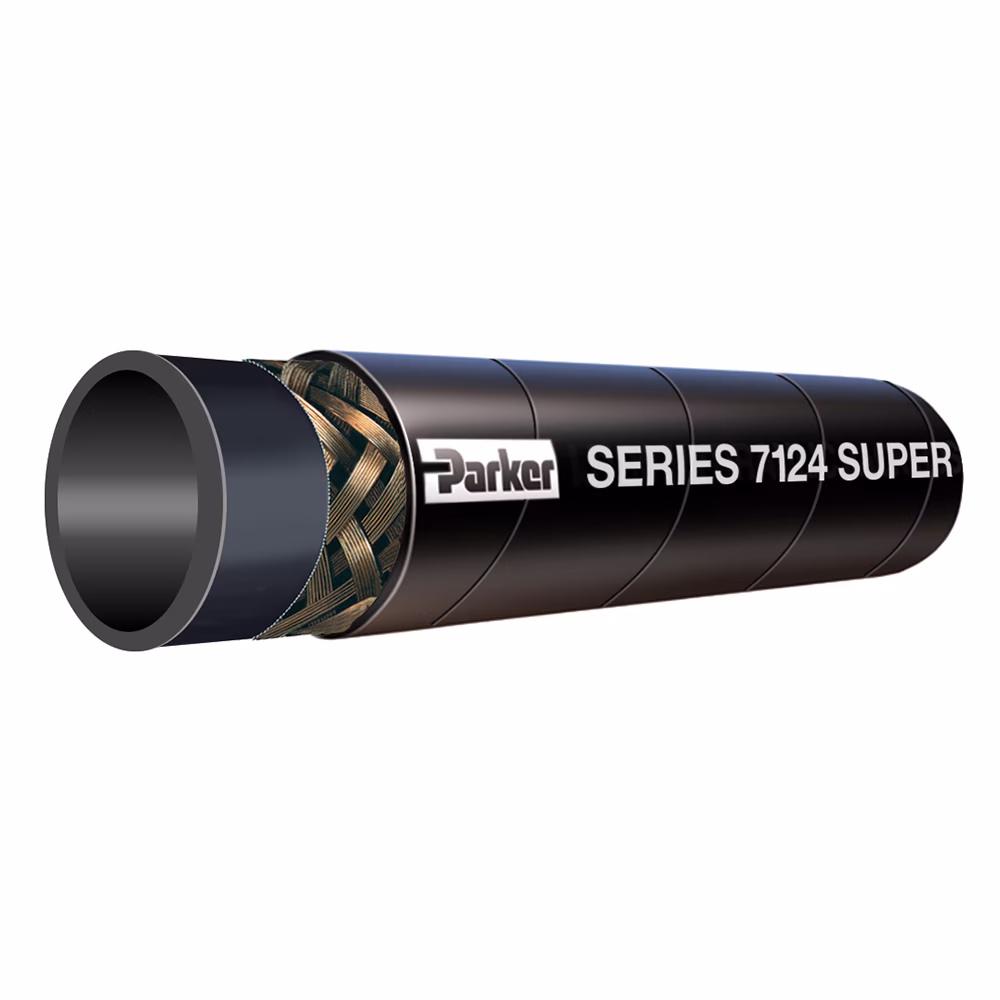

Super-Flex 2000 Semi-Hardwall Gasoline Dispenser Hose is designed to transfer refined fuels from powered dispensers to 180°F and 50 psi, Series 7124
Technical Specifications
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Cover Material: | Chloroprene Rubber (CR) |
| Application: | Fuel Transfer |
| Media: | Chemicals (Ethanol), Fuels (Diesel), Fuels (Gasoline), Lubricants (Oils) |
| Maximum Operating Pressure: | 0.3447 MPa, 50 psi, 3 bar |
| Specifications Met: | UL, ULC |
| Nominal Hose Inside Diameter: | 17.5 to 25 mm |
| Inside Diameter: | 15.9 to 25.4 mm, 5/8 to 1 inch |
| Outside Diameter: | 24.6 to 34.0 mm, 0.969 to 1.340 inch |
| Hose Reinforcement Material: | 1 Braid of Wire |
| Package Type: | Reel |
| Minimum Bend Radius: | 76.2 to 127 mm, 3 to 5 inch |
| Size: | -10 to -16 |
| Hose Inner Tube Material: | Black, Nitrile |
| Cover Color: | Black |
| Cover Structure: | Wrapped |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Weight: | 0.35 to 0.50 lb/ft, 0.52 to 0.75 kg/m |
| Length per Package: | 500 ft |
Additional information
| Part Number | 7124-631A, 7124-751A, 7124-1001A |
|---|
