7175
N/A
Description

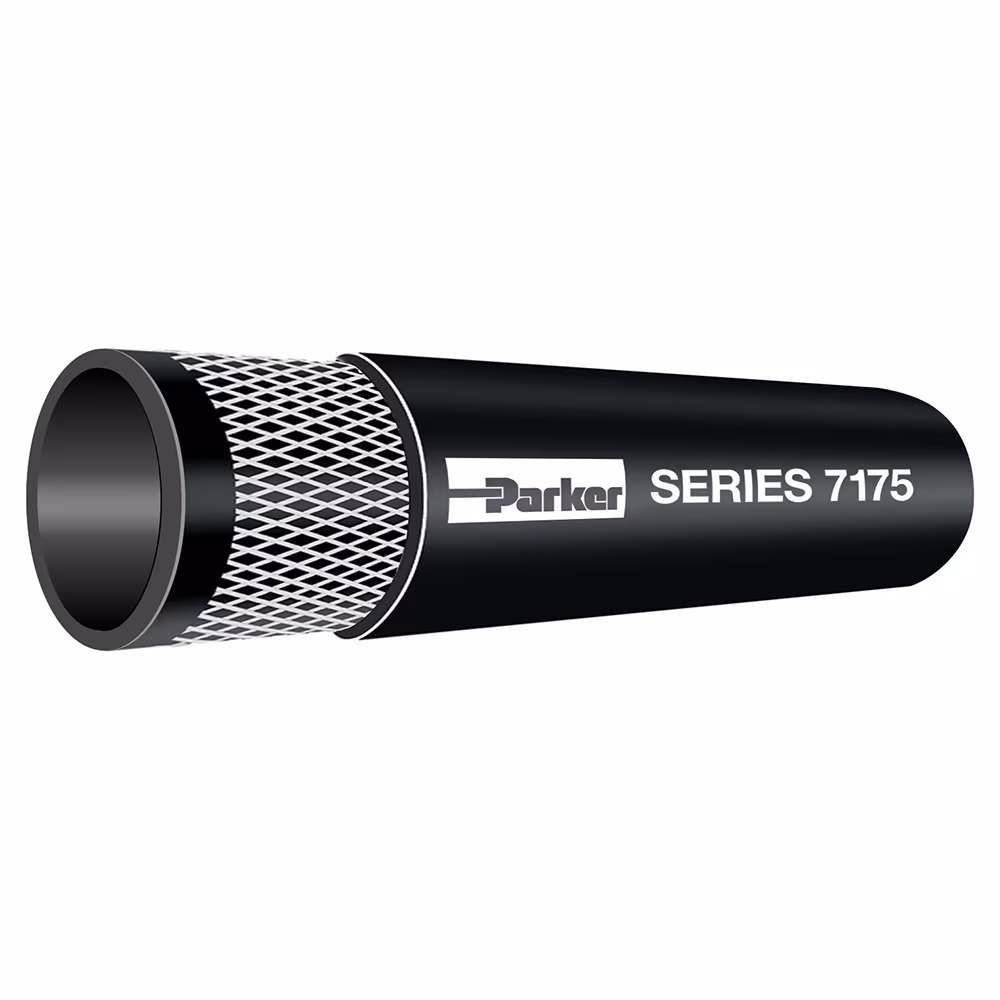

Softwall Farm Pump Hose is designed to transfer refined fuels from gravity-feed storage tanks or powered dispensers to 180°F and 50 psi, Series 7175
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Material: | Chloroprene Rubber (CR) |
| Media: | Fuels – Check fuel type with our catalogue chart. |
| Application: | Fuel Transfer |
| Maximum Operating Pressure: | 0.3 MPa, 50 psi, 3.4 bar |
| Specifications Met: | n/a |
| Nominal Hose Inside Diameter: | 20 to 25 mm |
| Inside Diameter: | 19.1 to 25.4 mm, 3/4 to 1 inch |
| Outside Diameter: | 28.2 to 35.3 mm, 1.112 to 1.390 inch |
| Hose Reinforcement Material: | Multiple Plies of Textile with Static Wire |
| Package Type: | Reel |
| Minimum Bend Radius: | 127 to 203.2 mm, 5 to 8 inch |
| Size: | -12 to -16 |
| Hose Inner Tube Material: | Black, Nitrile |
| Cover Color: | Black |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Weight: | 0.35 to 0.48 lb/ft, 0.05 to 0.07 kg/m |
| Length per Package: | 300 to 400 ft |
Additional information
| Part Number | 7175-75052, 7175-100052 |
|---|
