7204
N/A
Description

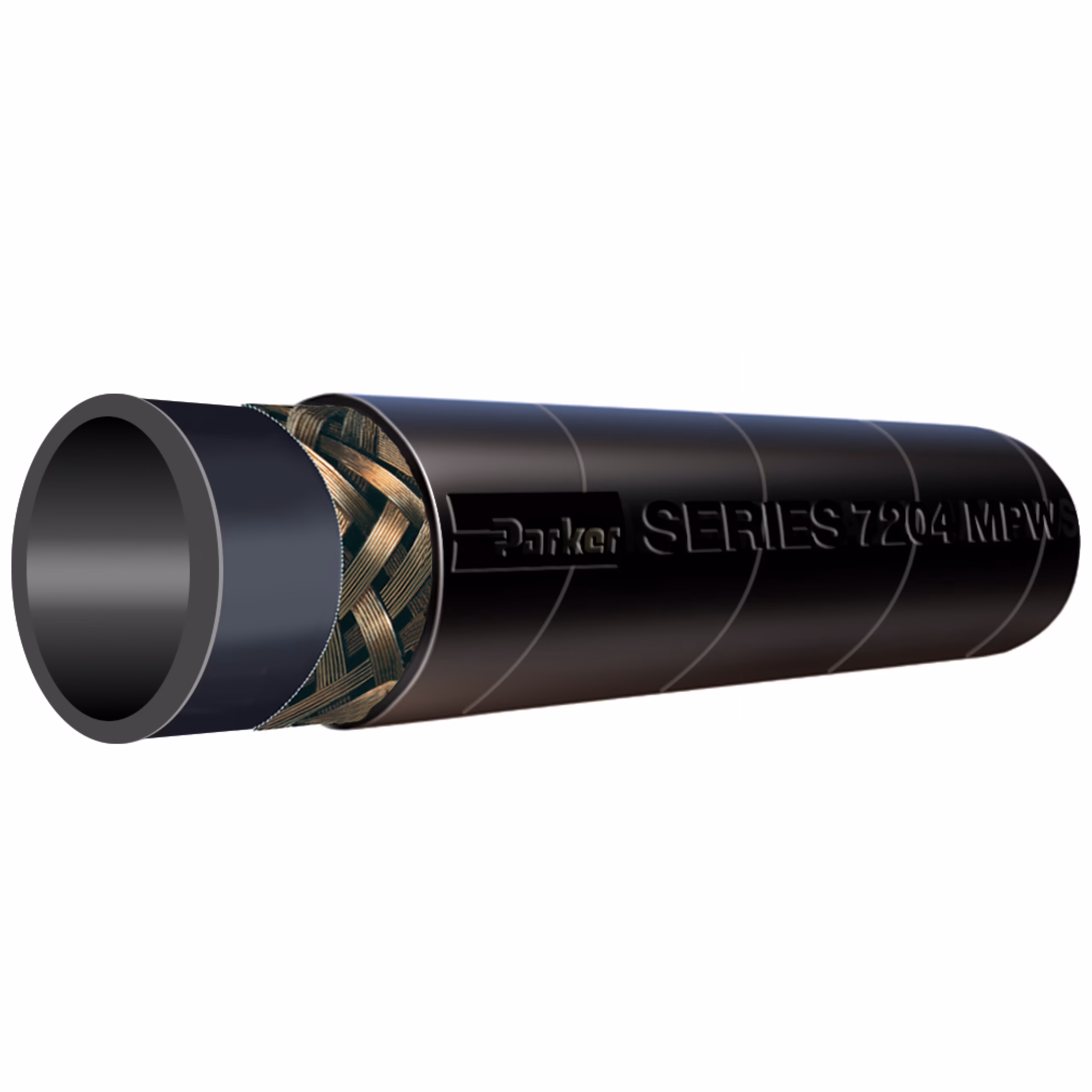

MPW-1000 High Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, hot materials, mild chemicals, water, oil, and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to 300°F and 1000 psi, Series 7204
Technical Specifications
| Cover Material: | Chloroprene Rubber (CR) |
| Media: | Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water |
| Maximum Operating Temperature: | 149 °C, 300 °F |
| Maximum Operating Pressure: | 1000 psi, 6.9 MPa, 68.9 bar |
| Specifications Met: | n/a |
| Nominal Hose Inside Diameter: | 15 to 25 mm |
| Inside Diameter: | 12.7 to 25.4 mm, 1/2 to 1 inch |
| Compatible Fitting: | 43 Series |
| Application: | Air, Multipurpose |
| Cover Structure: | Perforated, Wrapped |
| Outside Diameter: | 23.0 to 38.1 mm, 0.906 to 1.500 inch |
| Hose Reinforcement Material: | 1 Braid of Wire |
| Package Type: | Reel |
| Size: | -8 to -16 |
| Hose Inner Tube Material: | Black, Nitrile |
| Cover Color: | Black |
| Minimum Operating Temperature: | -20 °F, -29 °C |
| Weight: | 0.34 to 0.75 lb/ft, 0.05 to 0.10 kg/m |
| Minimum Bend Radius: | 7 to 12 inch, 177.8 to 304.8 mm |
| Length per Package: | 500 ft |
Additional information
| Part Number | 7204-751, 7204-1001 |
|---|
