7219
Certification: N/A
Description

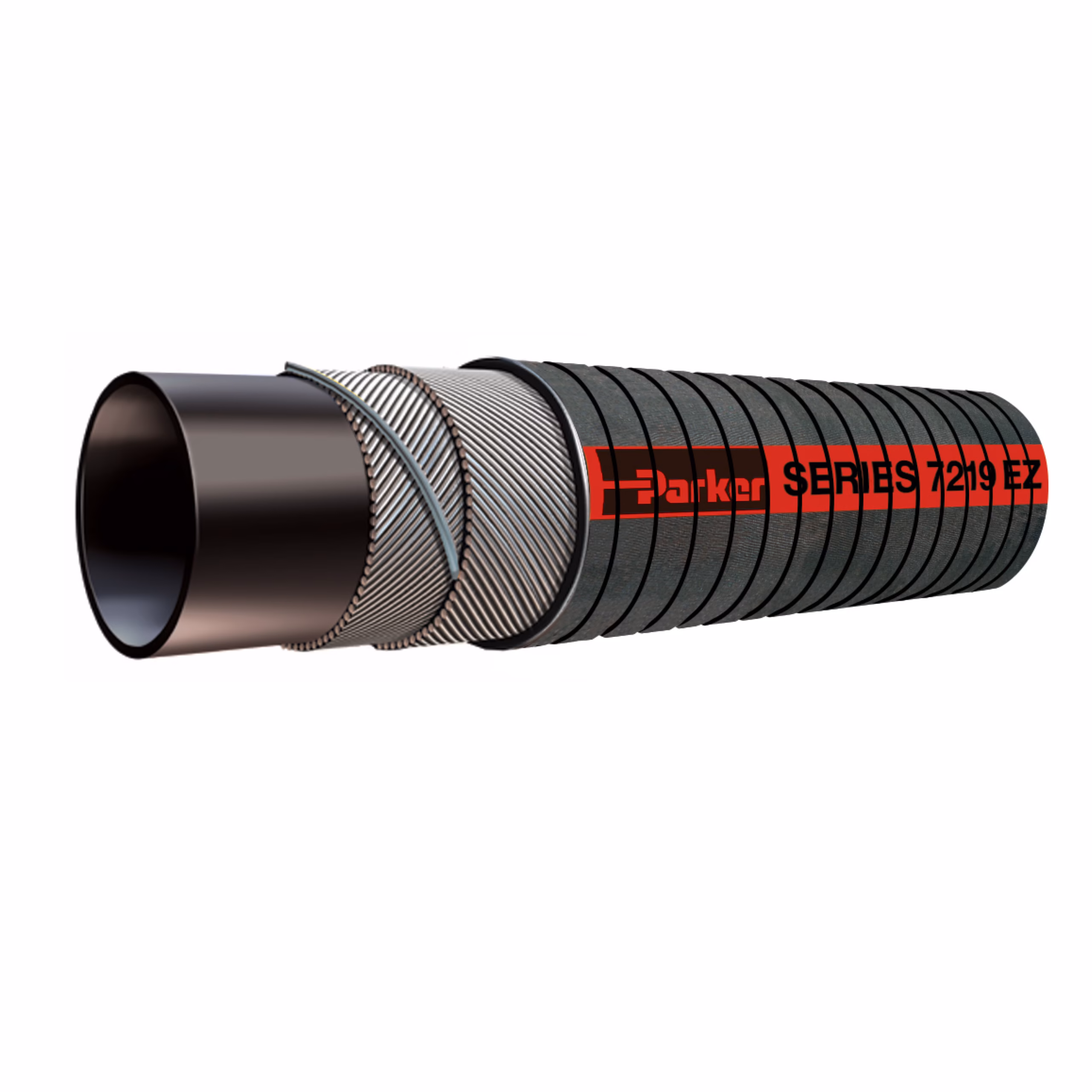

E-Z Form MP Greek Corrugated Multipurpose Oil Resistant Suction Hose is an extremely flexible hose designed for refined fuels and oil transfer in applications to 250°F and 75 psi, Series 7219
Technical Specifications
| Design Factor: | 4:1 |
| Cover Material: | Chloroprene Rubber (CR) |
| Media: | Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water |
| Weight: | 0.30 to 2.2 lb/ft, 0.45 to 3.28 kg/m |
| Maximum Operating Pressure: | 0.5 MPa, 75 psi 150 through 1″, 5.2 bar 10.34 through 1″ |
| Vacuum Pressure Rating: | 29 inch-Hg, 737 mm-Hg, Full |
| Minimum Bend Radius: | 24.1 to 340.3 mm, 0.9 to 13.4 inch |
| Application: | Engine |
| Nominal Hose Inside Diameter: | 15 to 100 mm |
| Specifications Met: | n/a |
| Compatible Fitting: | HY Series, 43 Series/HY Series |
| Inside Diameter: | 1/2 to 4 inch, 12.7 to 101.6 mm |
| Maximum Operating Temperature: | 100 °C (all other sizes), 121 °C (sizes 1/2″, 5/8″, 3/4″, 1″), 212 °F (all other sizes), 250 °F (sizes 1/2″, 5/8″, 3/4″, 1″) |
| Hose Reinforcement Material: | 2 Plies of Textile with Wire Helix |
| Outside Diameter: | 0.906 to 4.567 inch, 23.0 to 116.0 mm |
| Size: | -8 to -64 |
| Minimum Operating Temperature: | -30 °F, -34 °C |
| Cover Structure: | Greek-Corrugated |
| Cover Color: | Black |
| Hose Inner Tube Material: | Black, Nitrile |
Additional information
| Part Number | 7219-0500025, 7219-0625025, 7219-0750025, 7219-1000025, 7219-1125025, 7219-1250025, 7219-1250130, 7219-1375025, 7219-1375130, 7219-1500025, 7219-1500130, 7219-1625025, 7219-1625130, 7219-1750025, 7219-2000025, 7219-2000130, 7219-2250025, 7219-2375130, 7219-2500025, 7219-2500130, 7219-3000025, 7219-3000130, 7219-3500025, 7219-4000025, 7219-0500300, 7219-0625300, 7219-0750300, 7219-1000300 |
|---|
