7233
CSA 8.1, Type I, UL 21.0
Description

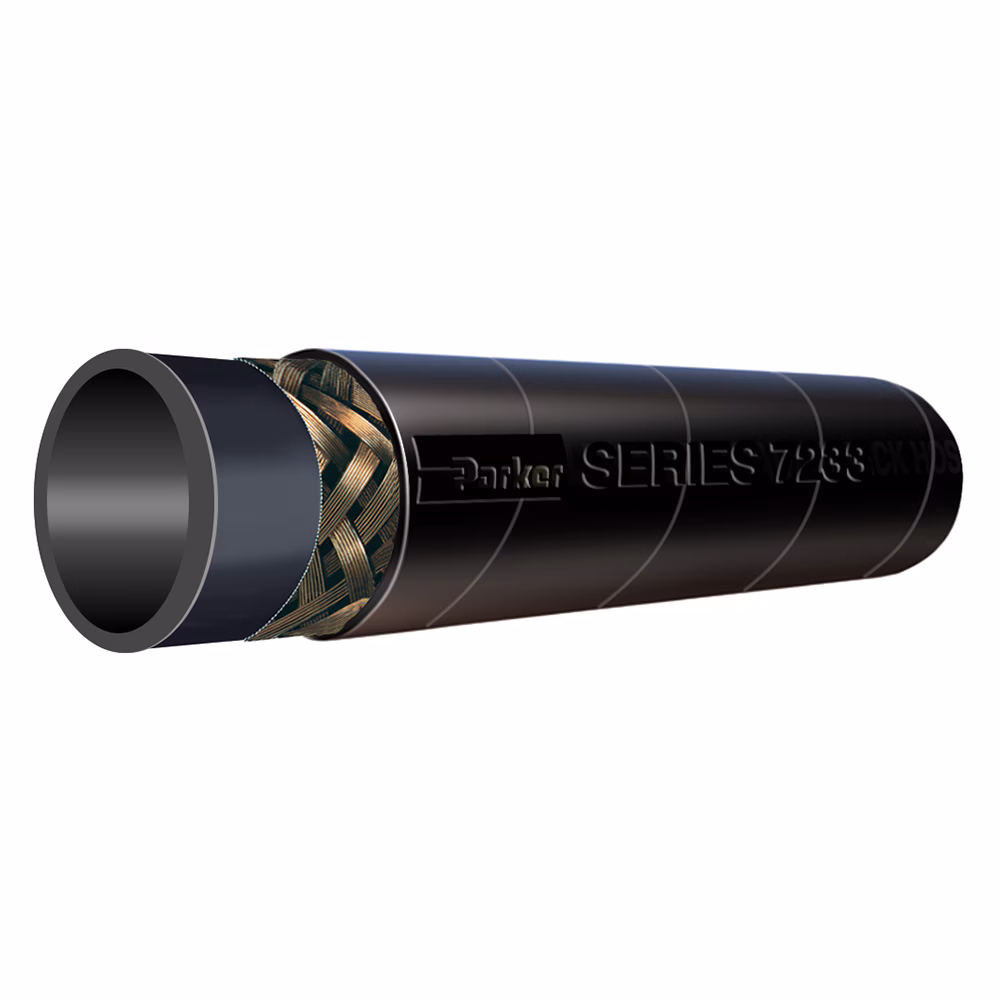

Liquid Petroleum Gas LPG Hose is designed for propane fuel line service on forklift and utility vehicle applications in applications to 140°F and 350 psi, Series 7233
Technical Specifications
| Hose Inner Tube Material: | Black, Nitrile |
| Weight: | 0.19 lb, 0.02 kg/m, 0.19 lb/ft, 0.09 kg |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Material: | Chloroprene Rubber (CR) |
| Maximum Operating Temperature: | 71 °C, 160 °F |
| Application: | Compressed Gas |
| Media: | Fuels – Check fuel type with our catalogue chart. |
| Specifications Met: | CSA 8.1, Type I, UL 21.0 |
| Compatible Fitting: | HY Series |
| Inside Diameter: | 7.9 mm, 3/16 inch |
| Maximum Operating Pressure: | 2.4 MPa, 350 psi, 24.1 bar |
| Outside Diameter: | 17.1 mm, 0.675 inch |
| Nominal Hose Inside Diameter: | 9 mm |
| Cover Structure: | Perforated, Wrapped |
| Size: | -5 |
| Hose Reinforcement Material: | 1 Braid of Stainless Steel Wire |
| Package Type: | Reel |
| Tube Material: | Nitrile |
| Cover Color: | Black |
| Minimum Bend Radius: | 4 inch, 101.6 mm |
| Length per Package: | 500 ft |
Additional information
| Part Number | 7233-311 |
|---|
