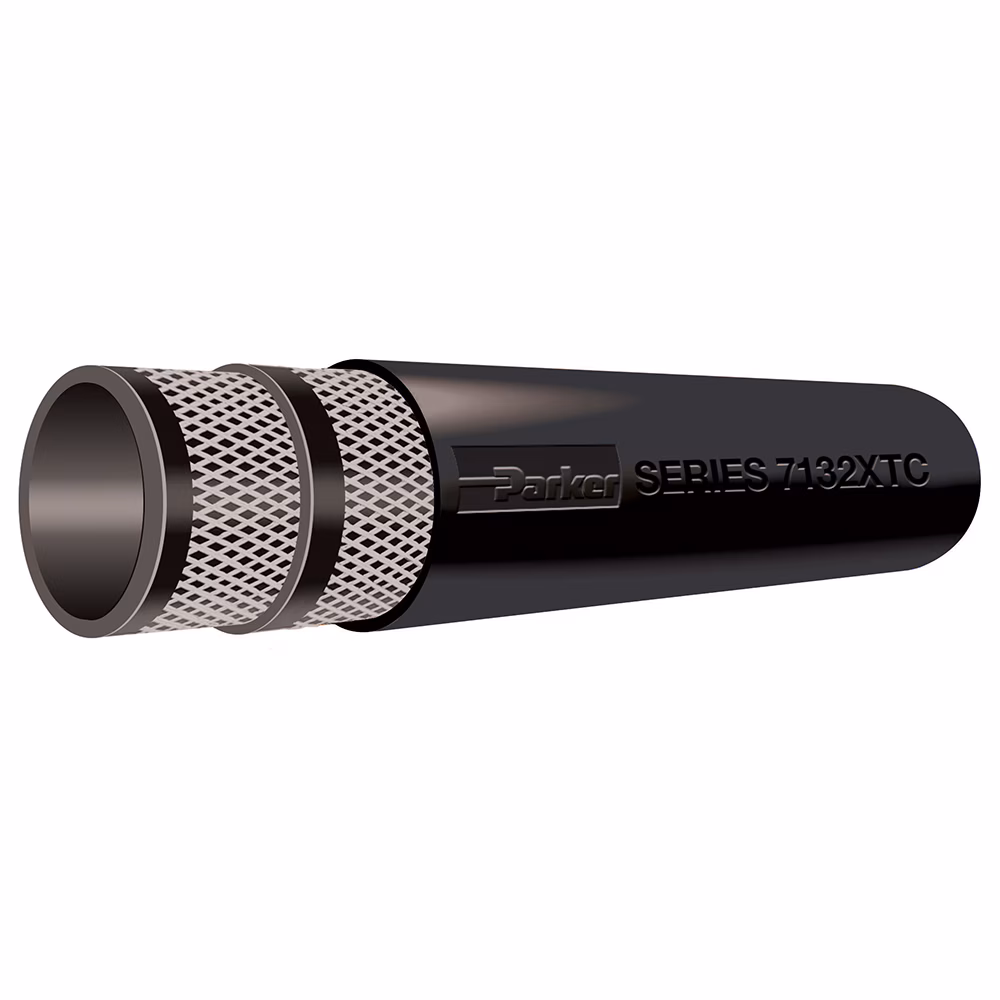

7132XTC
ISO 2928 (E)
Description
X-treme Low Temperature Liquid Petroleum Gas LPG Hose is designed for delivery, supply and transfer of propane in commercial and industrial applications to -65°F and 350 psi, Series 7132XTC
Technical Specifications
| Cover Material: | Chloroprene Rubber (CR) |
| Cover Structure: | Smooth, Perforated |
| Maximum Operating Temperature: | 82 °C, 180 °F |
| Application: | Compressed Gas |
| Maximum Operating Pressure: | 2.4 MPa, 350 psi, 24 bar |
| Media: | Fuels – Check fuel type with our catalogue chart. |
| Specifications Met: | UL 21.0, CSA 8.1, Type I |
| Compatible Fitting: | HY Series, 7661 Series |
| Nominal Hose Inside Diameter: | 8 to 25 mm |
| Inside Diameter: | 25.4 mm, 1 inch |
| Package Type: | Reel, Carton |
| Size: | -16 |
| Outside Diameter: | 38.1 mm, 1.50 inch |
| Hose Reinforcement Material: | 4 Plies of Textile |
| Hose Inner Tube Material: | Black, Nitrile |
| Cover Color: | Black |
| Minimum Operating Temperature: | -65 °F, -53 °C |
| Weight: | 0.63 lb/ft, 0.94 kg/m |
| Minimum Bend Radius: | 8 inch, 191 mm |
Additional information
| Part Number | 7132XTC-1000125, 7132XTC-1000150 |
|---|
