7280
UL, ULC
Description

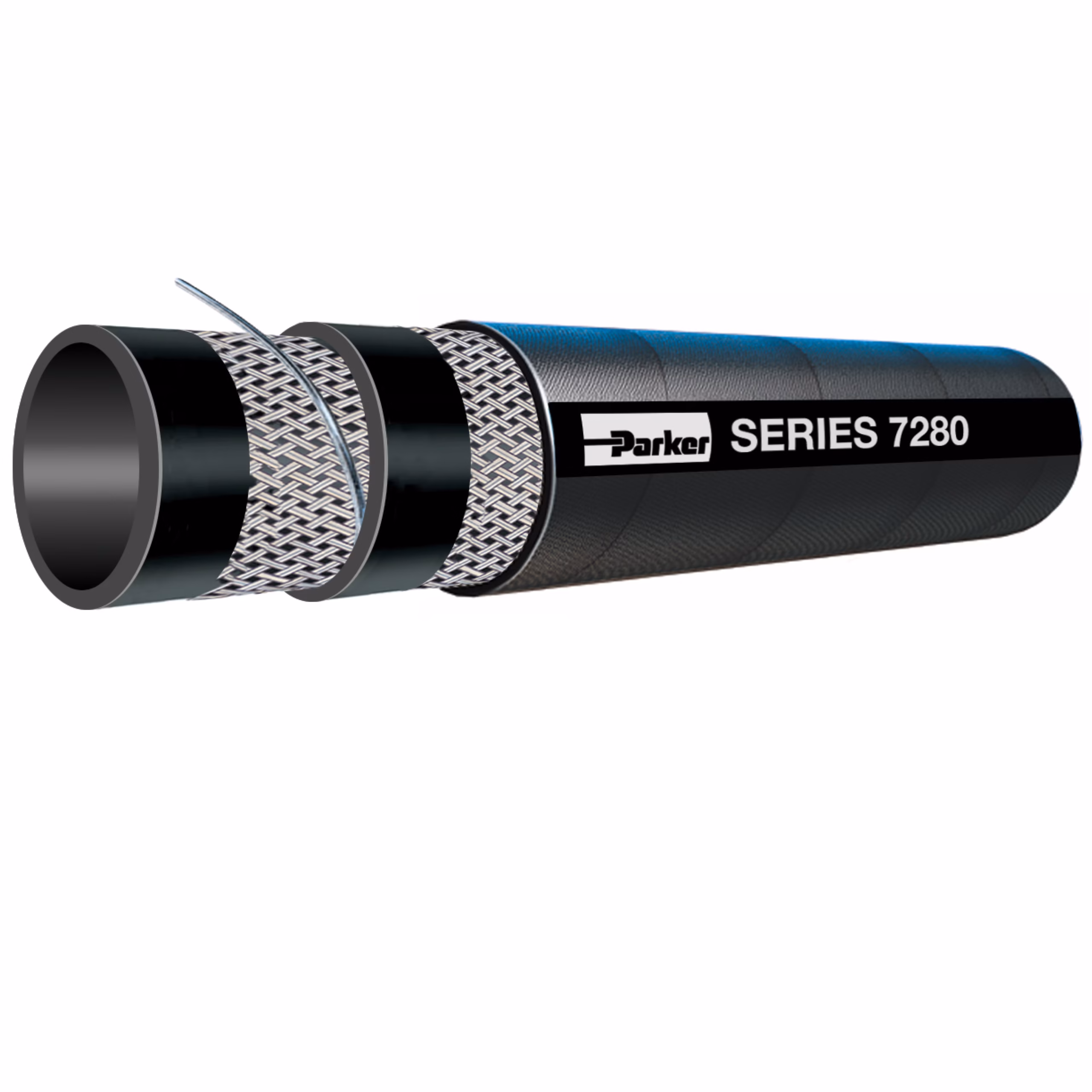

Flex-Ever 2000 Hardwall Gasoline Dispenser Hose is designed to transfer refined fuels from powered dispensers to 180°F and 50 psi, Series 7280
Technical Specifications
| Weight: | 0.39 to 0.64 lb, 0.05 to 0.09 kg/m, 0.39 to 0.64 lb/ft, 0.18 to 0.29 kg |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Material: | Chloroprene Rubber (CR) |
| Application: | Fuel Transfer |
| Media: | Chemicals (Ethanol), Fuels (Diesel), Fuels (Gasoline), Fuels – Check fuel type with our catalogue chart., Lubricants (Oils) |
| Maximum Operating Pressure: | 0.3447 MPa, 50 psi, 3.447 bar |
| Vacuum Pressure Rating: | 29 inch-Hg, 737 mm-Hg |
| Nominal Hose Inside Diameter: | 17.5 to 25 mm |
| Specifications Met: | UL, ULC |
| Inside Diameter: | 15.9 to 25.4 mm, 5/8 to 1 inch |
| Outside Diameter: | 26.2 to 36.9 mm, 1.031 to 1.453 inch |
| Hose Reinforcement Material: | 2 Braids or Plies of Textile with Wire Helix |
| Package Type: | Reel |
| Minimum Bend Radius: | 76.2 to 127 mm, 3 to 5 inch |
| Size: | -10 to -16 |
| Hose Inner Tube Material: | Black, Nitrile |
| Cover Color: | Black |
| Cover Structure: | Wrapped |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Length per Package: | 500 ft |
Additional information
| Part Number | 7280-632A, 7280-752A, 7280-1002A |
|---|
