7331
N/A
Description

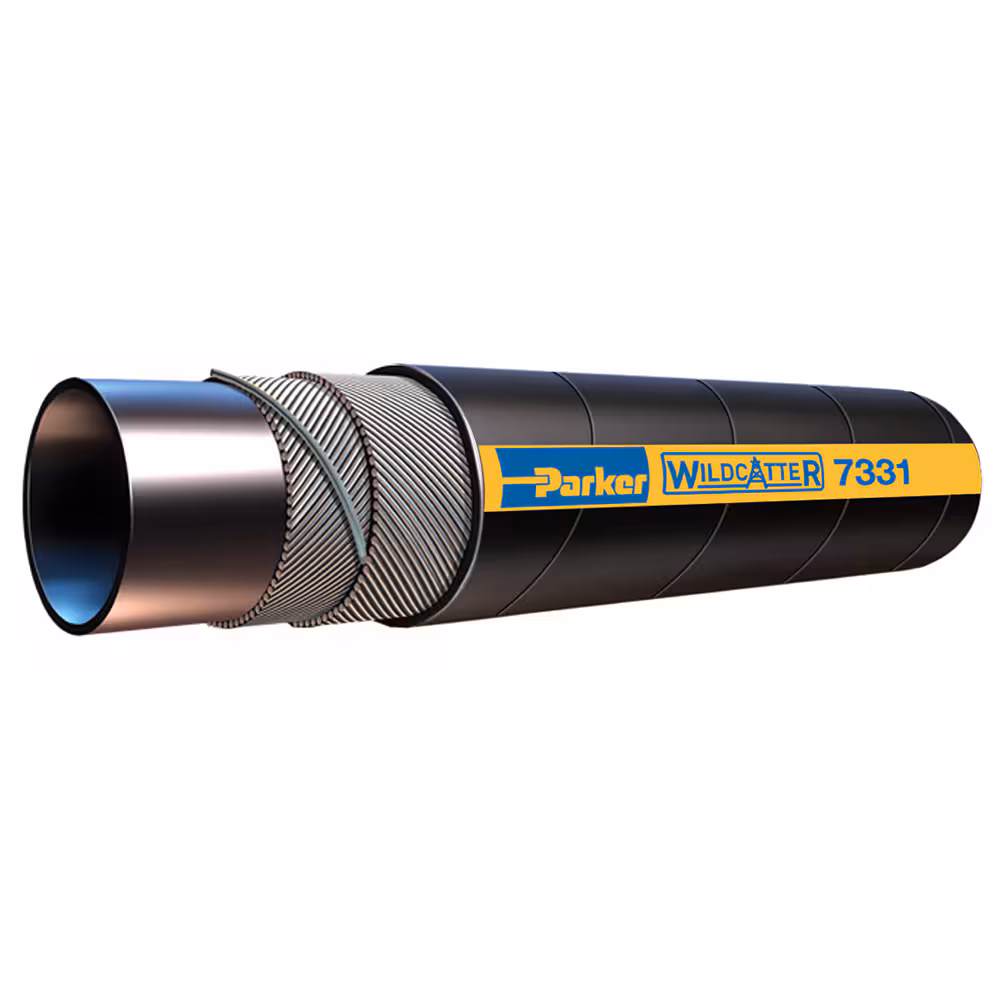

Wildcatter Oilfield Multipurpose Fracking Hose is designed for high pressure transfer of abrasive slurries, drilling mud, fuel, mild chemical solutions, oil and water in applications to 200°F and 400 psi, Series 7331
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Material: | Nitrile Blend |
| Cover Structure: | Wrapped |
| Application: | Oilfield |
| Weight: | 1.2 to 3.9 lb/ft, 0.17 to 0.54 kg/m, 0.53 to 1.77 kg/ft |
| Media: | Fuels – Check fuel type with our catalogue chart. |
| Maximum Operating Pressure: | 2.8 MPa, 400 psi, 27.6 bar |
| Vacuum Pressure Rating: | 29 inch-Hg, 737 mm-Hg, Full |
| Nominal Hose Inside Diameter: | 50 to 100 mm |
| Specifications Met: | n/a |
| Inside Diameter: | 2 to 4 inch, 50.8 to 101.6 mm |
| Minimum Bend Radius: | 203.2 to 508 mm, 8 to 20 inch |
| Outside Diameter: | 64.8 to 124.2 mm, 2.550 to 4.890 inch |
| Design Factor: | 4:1 |
| Size: | -32 to -64 |
| Hose Reinforcement Material: | Multiple Plies of Textile with Wire Helix |
| Package Type: | Coil |
| Hose Inner Tube Material: | Black, Nitrile |
| Cover Color: | Black |
| Maximum Operating Temperature: | 200 °F, 92 °C |
| Length per Package: | 100 ft |
Additional information
| Part Number | 7331-2000, 7331-3000, 7331-4000 |
|---|
