7363
N/A
Description

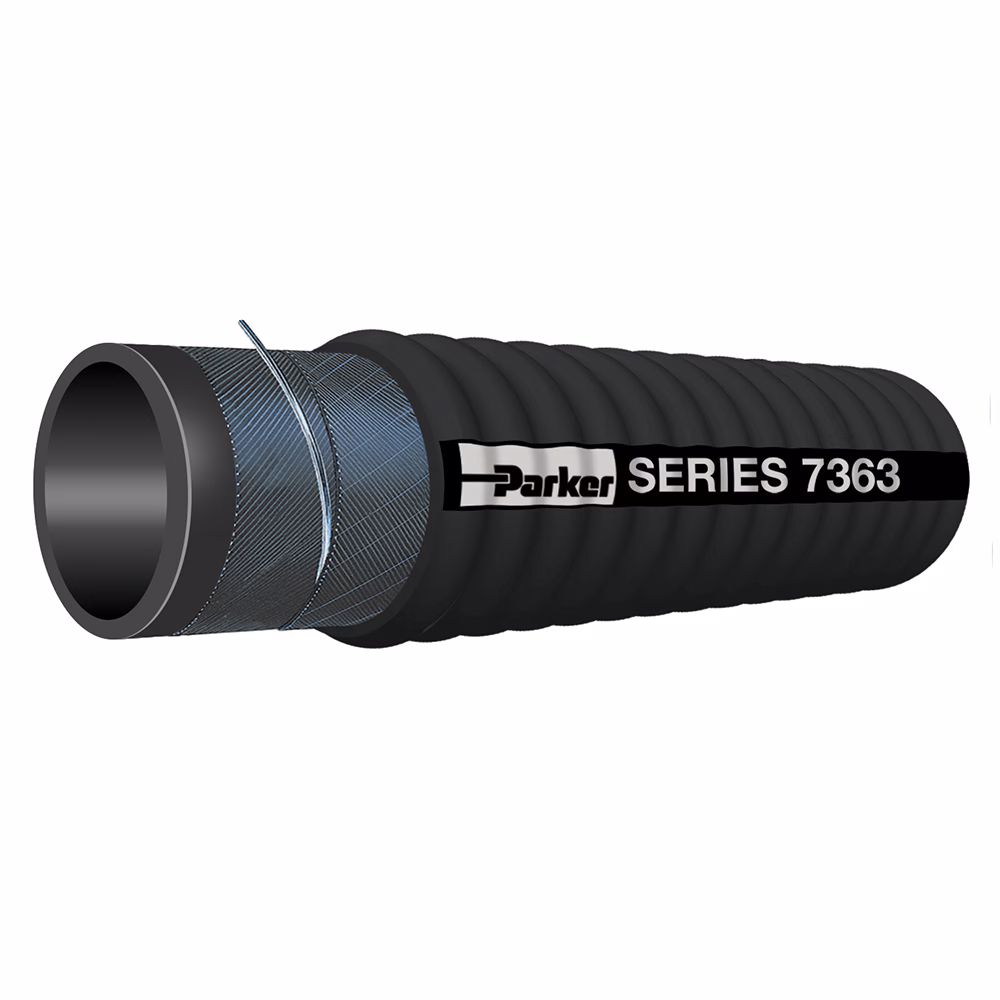

Super-Flex Large Diameter Corrugated Vacuum Hose incorporates a 3/16” thick rubber tube and is designed for transfer service of highly abrasive materials in applications to 160°F and 100 psi, Series 7363
Technical Specifications
| Design Factor: | 3:1 |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Hose Inner Tube Material: | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend Static Dissipative, Black Static Dissipative |
| Cover Material: | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend |
| Media: | Wet Abrasive Powders |
| Specifications Met: | n/a |
| Maximum Operating Pressure: | 0.7 MPa, 100 psi, 6.9 bar |
| Vacuum Pressure Rating: | 29 inch-Hg, 737 mm-Hg, Full |
| Inside Diameter: | 2 to 6 inch, 50.8 to 152.4 mm |
| Application: | Material Handling |
| Cover Structure: | Corrugated, Wrapped |
| Nominal Hose Inside Diameter: | 50 to 150 mm |
| Hose Reinforcement Material: | 3 Plies of Textile with Wire Helix |
| Package Type: | Coil |
| Outside Diameter: | 69.6 to 176.2 mm, 2.740 to 6.937 inch |
| Size: | -32 to -96 |
| Cover Color: | Black |
| Maximum Operating Temperature: | 160 °F, 71 °C |
| Weight: | 1.5 to 5.6 lb/ft, 2.28 to 8.34 kg/m |
| Minimum Bend Radius: | 6 to 18 inch, 152.4 to 457.2 mm |
| Length per Package: | 100 ft |
Additional information
| Part Number | 7363-3000, 7363-4000, 7363-5000, 7363-6000 |
|---|
