7399
N/A
Description

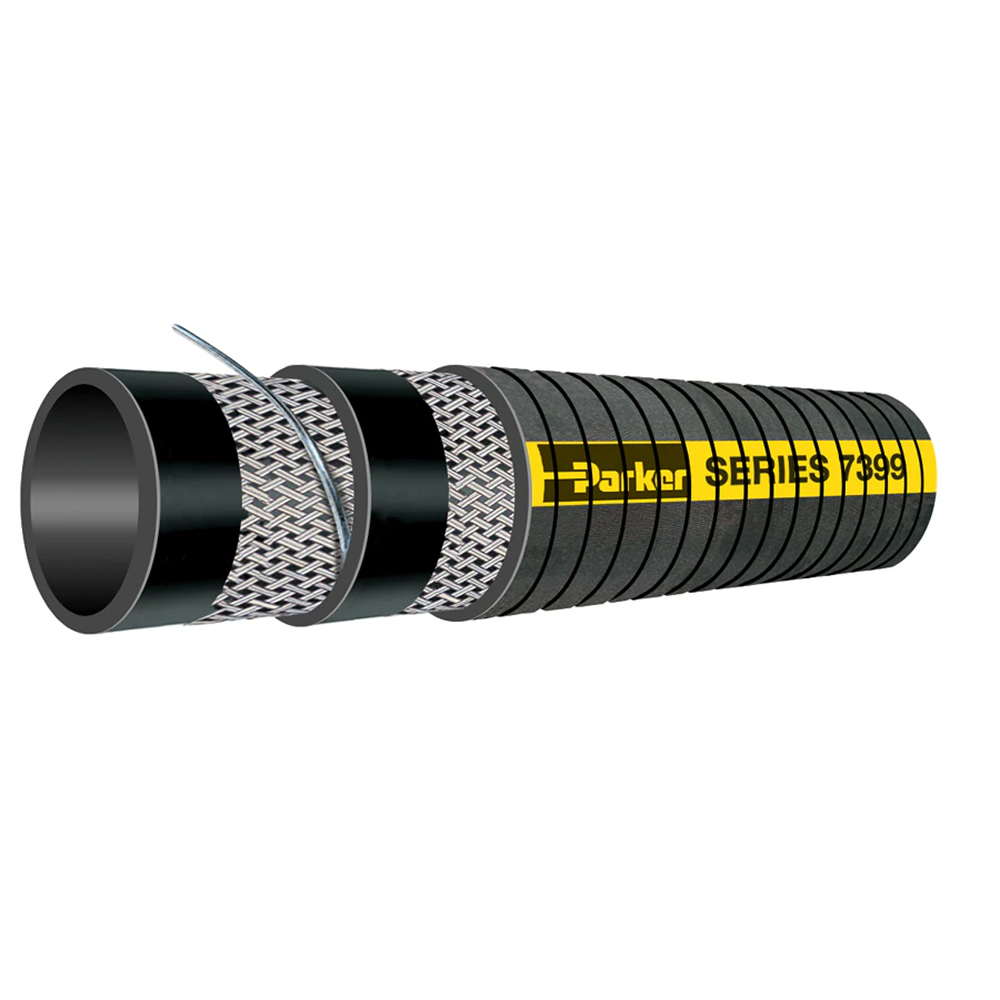

E-Z Form HT Greek Corrugated High Temperature Oil Resistant Suction Hose is an extremely flexible, heat resistant hose designed for transfer of hot oil in engine applications to 302°F and 150 psi, Series 7399
Technical Specifications
| Hose Inner Tube Material: | Black, Chloroprene |
| Design Factor: | 4:1 |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Color: | Black |
| Cover Material: | Hydrogenated Nitrile |
| Minimum Bend Radius: | 0.9 to 1.4 inch, 24.1 to 36.3 mm |
| Maximum Operating Pressure: | 150 psi, 10.3 bar, 1 MPa |
| Vacuum Pressure Rating: | Full, 29 inch-Hg, 737 mm-Hg |
| Maximum Operating Temperature: | 302 °F, 150 °C |
| Application: | Engine |
| Weight: | 0.43 to 0.66 kg/m, 0.29 to 0.44 lb/ft |
| Nominal Hose Inside Diameter: | 15 to 25 mm |
| Media: | Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water |
| Specifications Met: | n/a |
| Compatible Fitting: | 7661 Series, HY Series/43 Series |
| Inside Diameter: | 1/2 to 1 inch, 12.7 to 25.4 mm |
| Hose Reinforcement Material: | 2 Plies of Textile with Wire Helix |
| Cover Structure: | Greek-Corrugated, Wrapped |
| Package Type: | Carton, Reel |
| Size: | -8 to -16 |
| Outside Diameter: | 0.936 to 1.418 inch, 23.8 to 36.0 mm |
Additional information
| Part Number | 7399-0500025, 7399-0625025, 7399-0750025, 7399-0875025, 7399-1000025 |
|---|
