7620
Certification: BfR, DM, EX, FDA, GMP, MHLW, REACH
Description

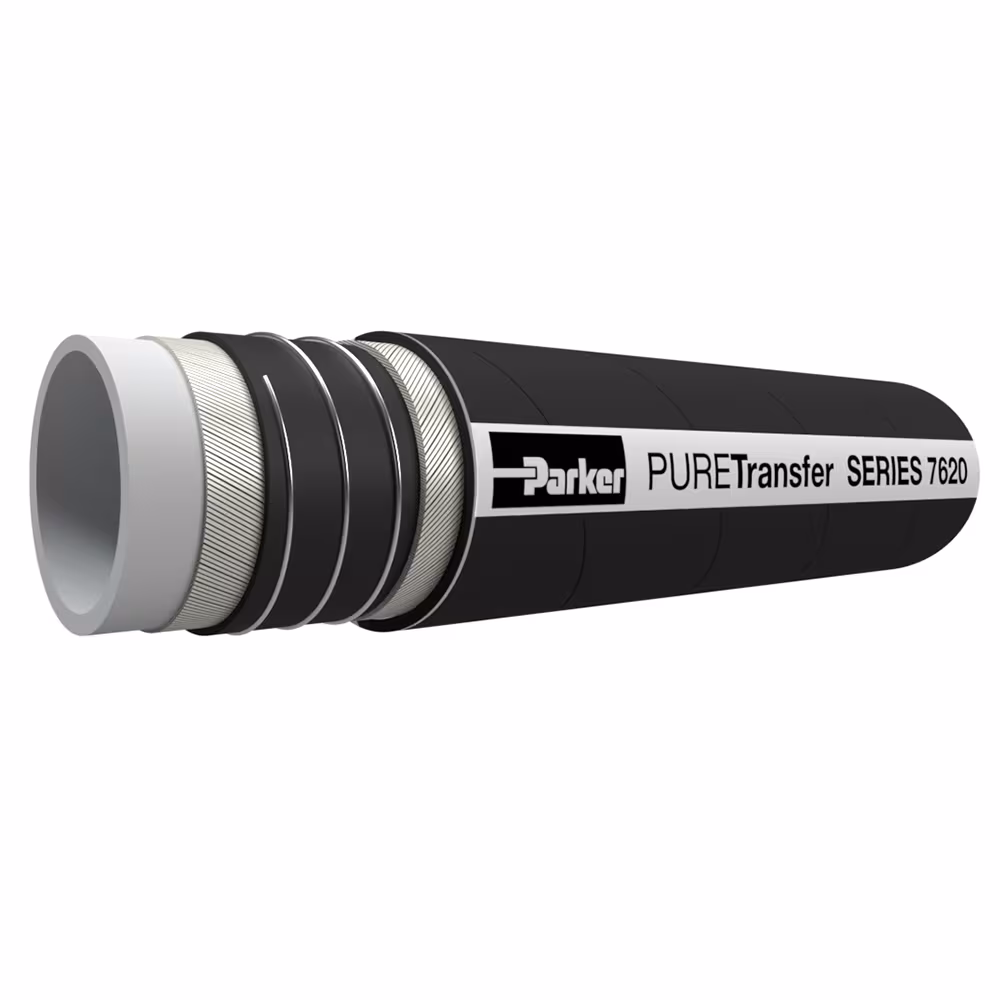

PURETransfer Series 7620 is a high quality, flexible delivery and suction hose. This series is designed to convey dry abrasives. The white anitstatic tube material consists of premium nitrile (NBR).
Technical Specifications
| Cover Color: | Black |
| Cover Material: | Conductive |
| Cover Structure: | Cloth Finish, Smooth |
| Media: | Dry Abrasive Powders |
| Specifications Met: | BfR, DM, EX, FDA, GMP, MHLW, REACH |
| Weight: | 0.80 to 4.47 kg/m, 0.54 to 2.99 lb/ft |
| Inside Diameter: | 25 to 102 mm |
| Hose Reinforcement Material: | Synthetic Plies with Galvanized Wire Helix |
| Minimum Bend Radius: | 4.92 to 24 inch, 125 to 600 mm |
| Outside Diameter: | 37 to 118 mm |
| Vacuum Pressure Rating: | 26.5 inch-Hg, 90 kPa |
| Maximum Operating Pressure: | 90 psi, 6 bar |
| Minimum Burst Pressure: | 270 psi, 18 bar |
| Minimum Operating Temperature: | -13 °F, -25 °C |
| Maximum Operating Temperature: | 176 °F, 80 °C |
| Application: | Food Transfer |
| Hose Inner Tube Material: | White Antistatic, Nitrile Antistatic, Phtalates Free Antistatic |
Additional information
| Part Number | 7680-8-BLU-RL, 7680-8-WHT-RL, 7680-12-BLU-BX, 7680-12-BLU-RL, 7680-12-WHT-RL, 7680-16-BLU-RL, 7680-16-WHT-RL |
|---|
