7640
Certification: 3A, BfR, CE, DM, FDA, GMP, MHLW, REACH
Description

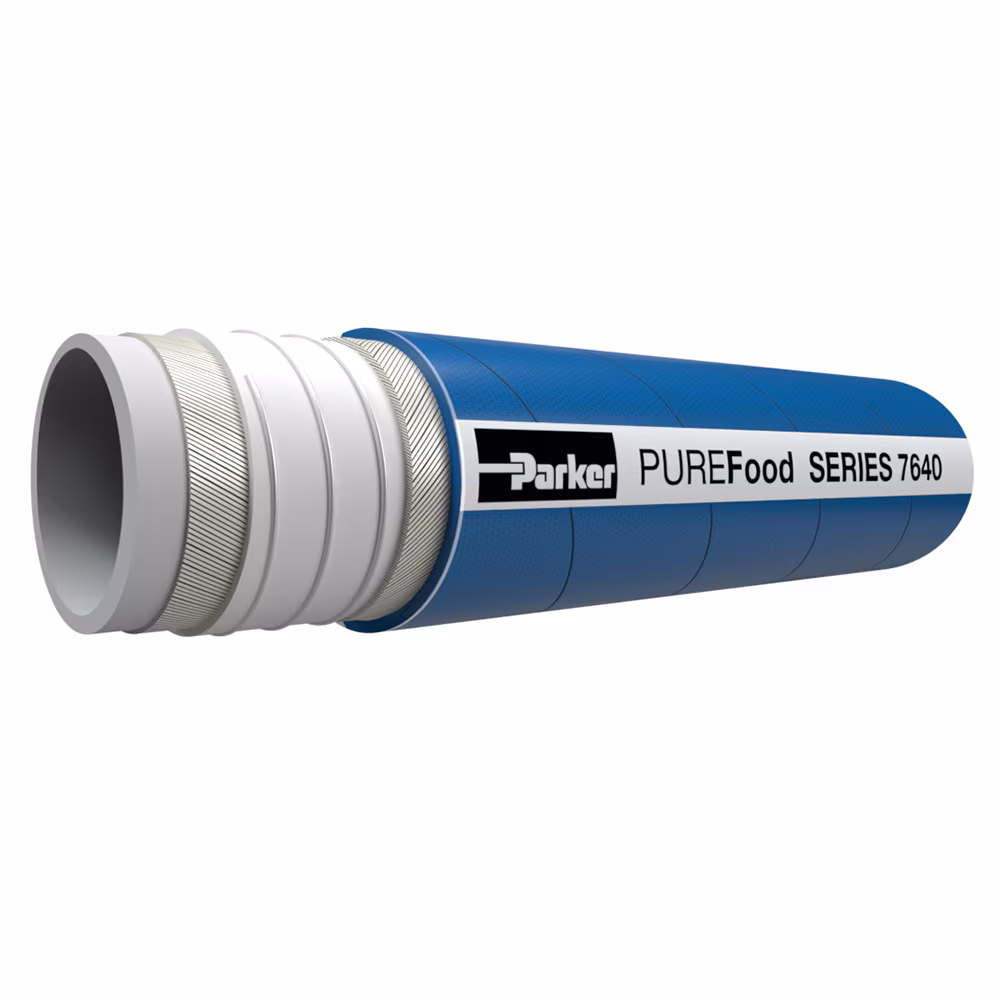

PUREFood Series 7640 is a high quality, flexible delivery and suction hose. This series is designed to convey cooking oils and fat, dairy products, dry abrasives, and oily sauces. The tube material consists of premium nitrile (NBR).
Technical Specifications
| Cover Color: | Blue |
| Cover Structure: | Cloth Finish, Smooth |
| Media: | Food & Beverage (Cooking Oils & Fat), Food & Beverage (Dairy Products), Food & Beverage (Oily Sauces) |
| Specifications Met: | 3A, BfR, CE, DM, FDA, GMP, MHLW, REACH |
| Weight: | 0.91 to 4.42 kg/m, 0.61 to 2.96 lb/ft |
| Inside Diameter: | 25.4 to 102 mm |
| Application: | Cooking Oils & Fat, Dairy Products, Oily Sauces |
| Hose Reinforcement Material: | Synthetic Plies with Galvanized Wire Helix |
| Minimum Bend Radius: | 3.35 to 16.93 inch, 85 to 430 mm |
| Outside Diameter: | 37 to 118 mm |
| Vacuum Pressure Rating: | 26.5 inch-Hg, 90 kPa |
| Maximum Operating Pressure: | 150 psi, 10 bar |
| Minimum Burst Pressure: | 450 psi, 30 bar |
| Minimum Operating Temperature: | -13 °F, -25 °C |
| Maximum Operating Temperature: | 176 °F, 80 °C |
| Hose Inner Tube Material: | White, Nitrile, Phtalates Free |
Additional information
| Part Number | 7640-1000, 7640-1500, 7640-2000, 7640-3000, 7640-4000 |
|---|
