801RH

EN 45545, EN 45545 HL2 and R23, Parker Specifications

Category:

Description

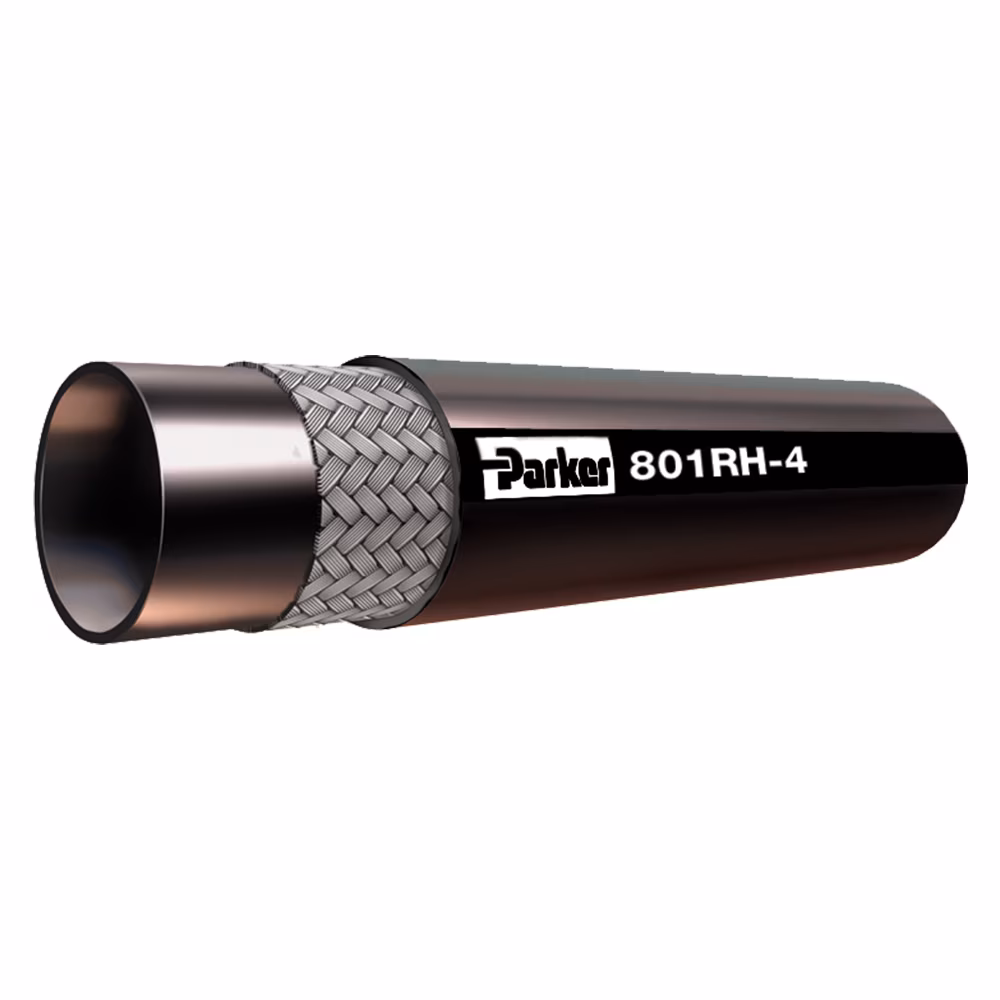

Parker’s Push-Lok 801RH has been developed with a high level of hose flexibility and for a working pressure up to 2.4 MPa, compatible with Push-Lok fittings in series 82 in steel, stainless steel and brass.

Technical Specifications

Industry: Transportation
Hose Inner Tube Material: Synthetic Rubber
Brand: Parker
Minimum Operating Temperature: -40 °C, -40 °F
Maximum Operating Pressure: 2.4 MPa, 24 bar, 350 psi
Product Type: Push-Lok and Push-on Hoses
Technology: Fluid & Gas Handling
Cover Material: Fire Retardant, Synthetic Rubber
Design Factor: 4:1
Vacuum Pressure Rating: 0.95 bar, 28.05 inch-Hg, 712.56 mm-Hg
Division: Polymer Hose Division Europe
Materials of Construction: Rubber
Specifications Met: EN 45545, EN 45545 HL2 and R23, Parker Specifications
Compatible Fitting: 82 Series
Weight: 0.13 to 0.16 kg/m, 0.09 to 0.11 lb/ft
Inside Diameter: 1/4 to 3/8 inch, 6.4 to 9.5 mm
Maximum Operating Temperature: 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F)
Application: Low Pressure Hydraulics, Railway, Transportation
Hose Reinforcement Material: Braid of High Tensile Fiber
Minimum Bend Radius: 2.559 to 2.953 inch, 65 to 75 mm
Outside Diameter: 0.496 to 0.626 inch, 12.7 to 15.9 mm
Media: Air (General Industrial Air), Coolants (Water-Glycol)

Additional information

Part Number

801RH-4-BLK-RL, 801RH-6-BLK-RL
