BSW
Other
Description

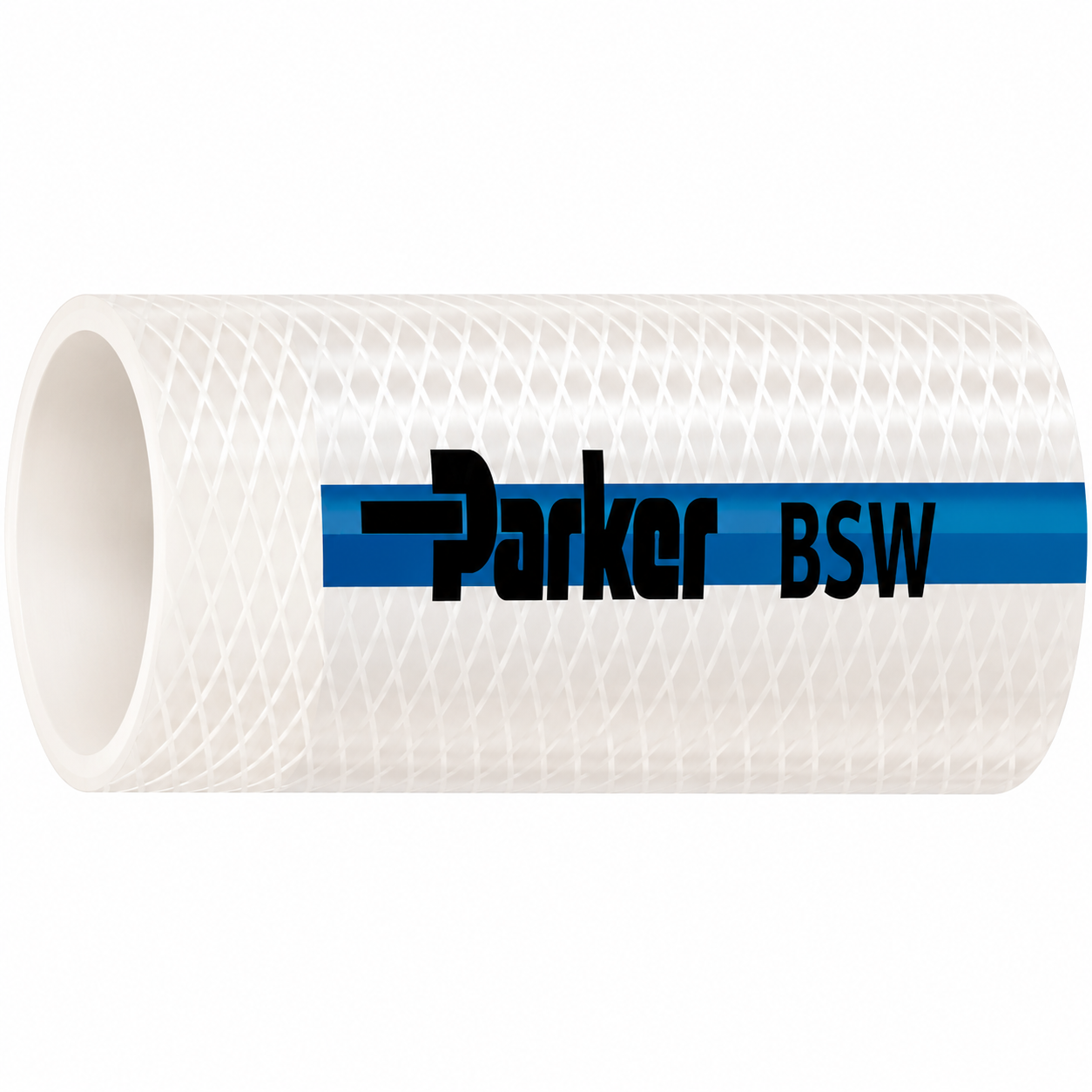

Blue Stripe Washdown Premium washdown hose is designed specifically for cold washdown applications.
Technical Specifications
| Hose Inner Tube Material: | PVC |
| Nominal Hose Inside Diameter: | 20 to 40 mm |
| Maximum Operating Pressure: | 1 MPa, 10 bar, 145 psi |
| Maximum Operating Temperature: | 60 °C, 140 °F |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Cover Material: | PVC |
| Cover Color: | White with Blue stripe |
| Media: | Water |
| Specifications Met: | Other |
| Weight: | 0.39 to 0.97 kg/m |
| Inside Diameter: | 3/4 to 1-1/2 inch, 20 to 38 mm |
| Application: | Bowling Greens, Dairy Products, Golf Courses, Parks & Gardens |
| Hose Reinforcement Material: | Fiber |
| Minimum Bend Radius: | 5.5 to 9.64 inch, 140 to 245 mm, 140 to 210 mm |
| Outside Diameter: | 28 to 50 mm |
| Size: | -12 to -24 |
Additional information
| Part Number | BSW-020-020, BSW-020-100, BSW-025-020, BSW-025-100, BSW-032-020, BSW-032-060, BSW-032-100, BSW-038-020, BSW-038-060 |
|---|
