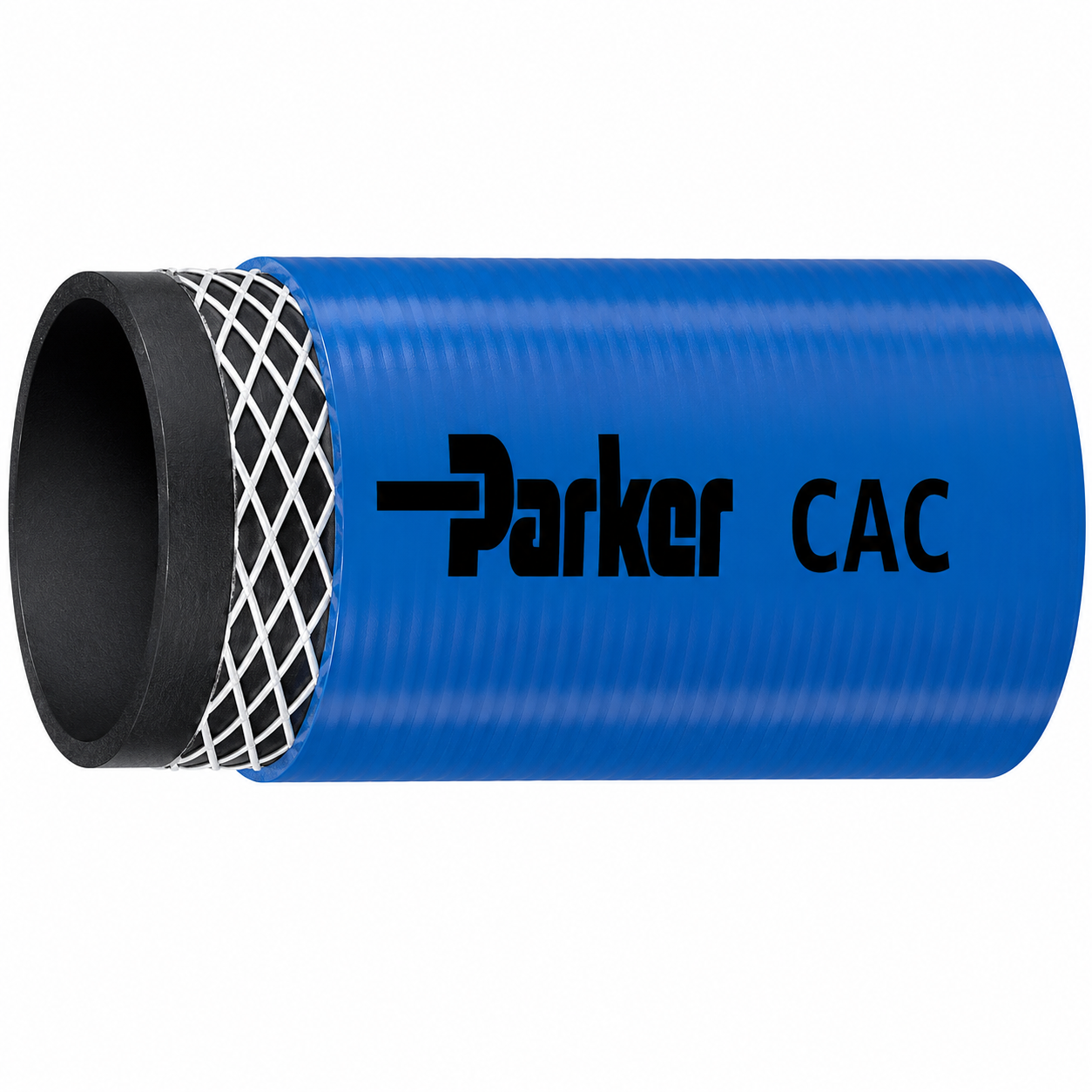

CAC
AS/NZS 2554, Class B
Description
Chemair Airline Premium lightweight flexible Airline with the added benefit of a chemical resistant tube.
Technical Specifications
| Hose Inner Tube Material: | PVC |
| Maximum Operating Temperature: | 60 °C, 140 °F |
| Minimum Operating Temperature: | -21 °C, -5.8 °F |
| Cover Material: | PVC |
| Cover Color: | Blue |
| Media: | Air (Compressed Air with traces of Oil) |
| Specifications Met: | AS/NZS 2554, Class B |
| Weight: | 0.11 to 0.35 kg/m |
| Inside Diameter: | 1/4 to 3/4 inch, 6 to 20 mm |
| Maximum Operating Pressure: | 17.2 to 19.9 bar, 1.72 to 1.99 MPa, 250 to 290 psi |
| Compatible Fitting: | Other |
| Application: | Agriculture Spray, Nail Guns, Pneumatics, Rattle Guns |
| Hose Reinforcement Material: | Fiber |
| Nominal Hose Inside Diameter: | DN6 to 12 |
| Minimum Bend Radius: | 2.36 to 7.48 inch, 60 to 190 mm |
| Outside Diameter: | 12 to 27.5 mm |
| Size: | -6 to -12 |
Additional information
| Part Number | CAC-006-020, CAC-006-300, CAC-008-020, CAC-008-100, CAC-008-300, CAC-010-020, CAC-010-100, CAC-010-200, CAC-012-020, CAC-012-030, CAC-012-100, CAC-012-200, CAC-020-020, CAC-020-100 |
|---|
