CNG
Certification: SAE J30R6
Description

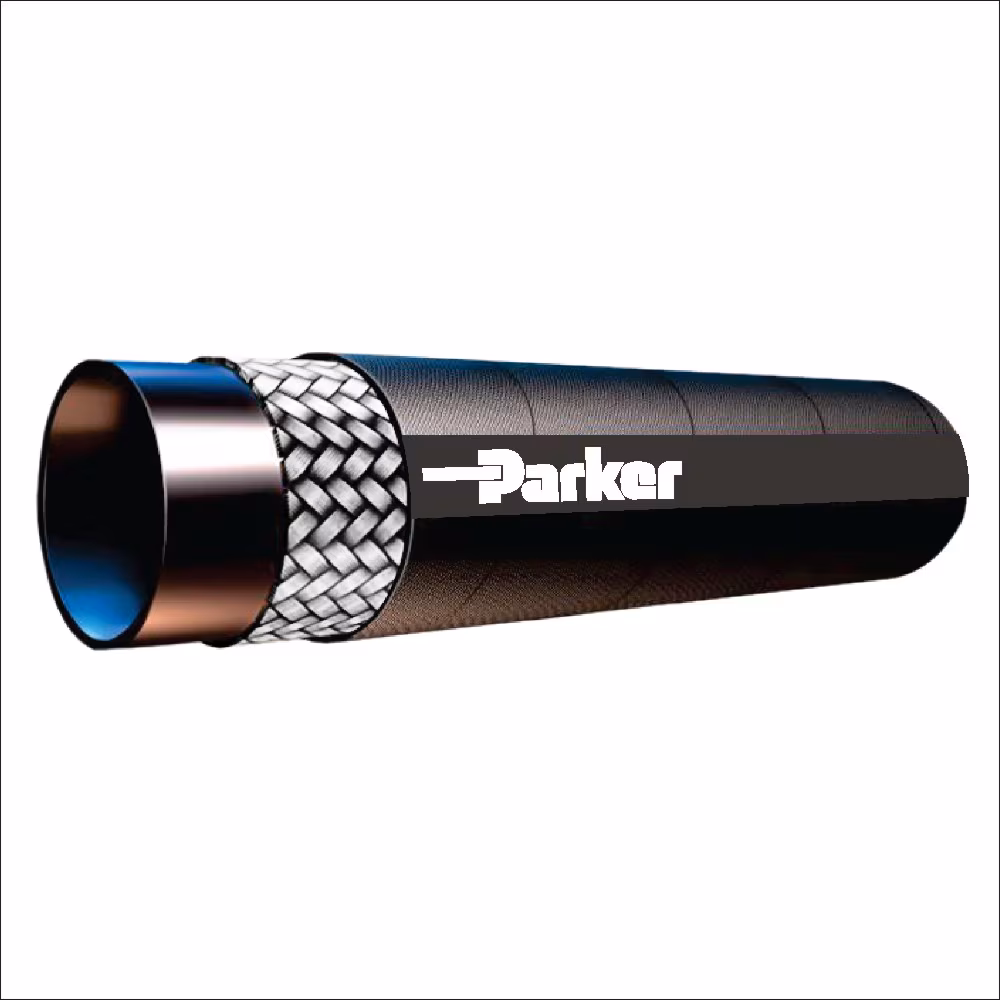

CNG low pressure hose meets SAE J 30 R6. It’s a one fibre braid with ozone resistant cover.
Technical Specifications
| Weight: | n/a |
| Minimum Operating Temperature: | 0 °C, 23 °F |
| Hose Inner Tube Material: | Synthetic Rubber |
| Application: | Engine, Compressed Natural Gas (CNG) (Low Pressure) |
| Maximum Operating Pressure: | 0.35 MPa, 3.5 bar, 50 psi |
| Cover Material: | Synthetic Rubber |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Minimum Bend Radius: | 5 to 13.7 inch, 127 to 349 mm |
| Media: | Combustible Gases, Fuels – Check fuel type with our catalogue chart., Natural Gas (CNG) |
| Specifications Met: | SAE J30R6 |
| Inside Diameter: | 1/4 to 1 inch, 6.4 to 25.4 mm |
| Hose Reinforcement Material: | 1 Braid of Fiber |
| Outside Diameter: | 0.5 to 1.37 inch, 12.7 to 34.9 mm |
| Size: | -4 to -16 |
| Operating Temperature: | 0 to 100 °C |
Additional information
| Part Number | CNGPMR-4PM, CNGPMR-5PM, CNGPMR-6PM, CNGPMR-8PM, CNGPMR-12PM, CNGPMR-16PM |
|---|
