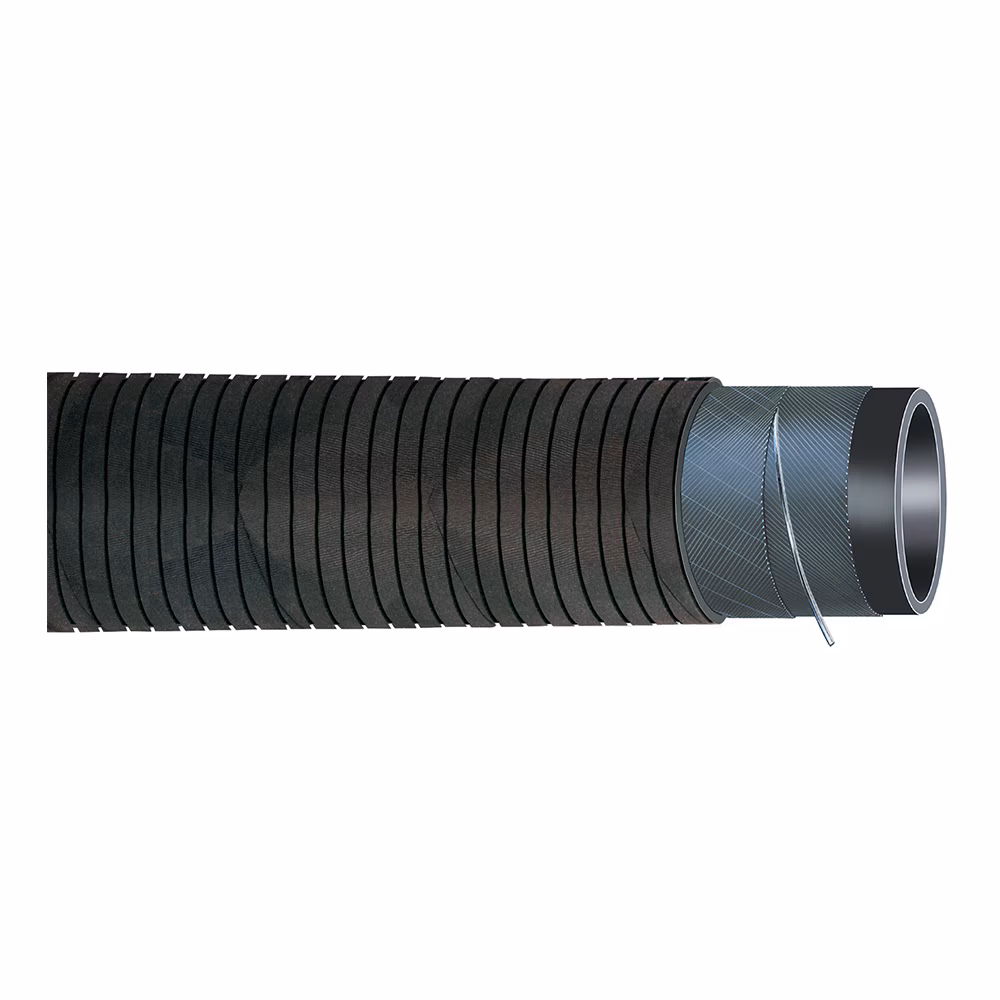

E-Z Form™ MP
Parker Specifications
Description
E-Z Form™ MP multipurpose oil resistant hose is designed and manufactured as a versatile, solution-driven product for OEM and aftermarket-related.
Technical Specifications
| Weight: | 0.30 to 1.50 lb/ft, 0.45 to 2.23 kg/m |
| Industry: | Industrial Manufacturing Equipment, Transportation |
| Hose Inner Tube Material: | Nitrile Butadiene Rubber (NBR) |
| Brand: | Parker |
| Minimum Operating Temperature: | -30 °F, -34 °C |
| Maximum Operating Pressure: | 0.5 MPa, 5 bar, 75 psi |
| Application: | Air, Multipurpose |
| Product Type: | Oil Hose, Suction Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Chloroprene Rubber (CR) |
| Design Factor: | 4:1 |
| Vacuum Pressure Rating: | 0.9 bar, 26.58 inch-Hg, 675.06 mm-Hg |
| Materials of Construction: | Rubber |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 0.905 to 8.779 inch, 23 to 223 mm |
| Media: | Chemicals (Ethanol) – Check your fluid compatibility with our catalogue chart., Fuels (Biodiesel) – Check fuel type with our catalogue chart., Fuels (Diesel) – Check fuel type with our catalogue chart., Fuels (Gasoline) – Check fuel type with our catalogue chart., Fuels – Check fuel type with our catalogue chart. |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | Refer to www.parker.com/crimpsource-euro |
| Inside Diameter: | 1/2 to 3 inch, 12.7 to 76 mm |
| Maximum Operating Temperature: | 121 °C for I.D up to 25 mm, 93 °C for all other sizes, 200 °F for all other sizes, 250 °F for I.D up to 25 mm |
| Hose Reinforcement Material: | Multiple Plies of Textile with Wire Helix |
| Outside Diameter: | 0.937 to 3.543 inch, 23.8 to 90.0 mm |
Additional information
| Part Number | IH72190500/10, IH72190625/10, IH72190750/10, IH72191000/10, IH72191250/10, IH72191500/10, IH72192000/10, IH72192500/10, IH72193000/10, IH72193500/10 |
|---|
