FSA
AS 2554, Class A, AS 2660, Class A 7
Description

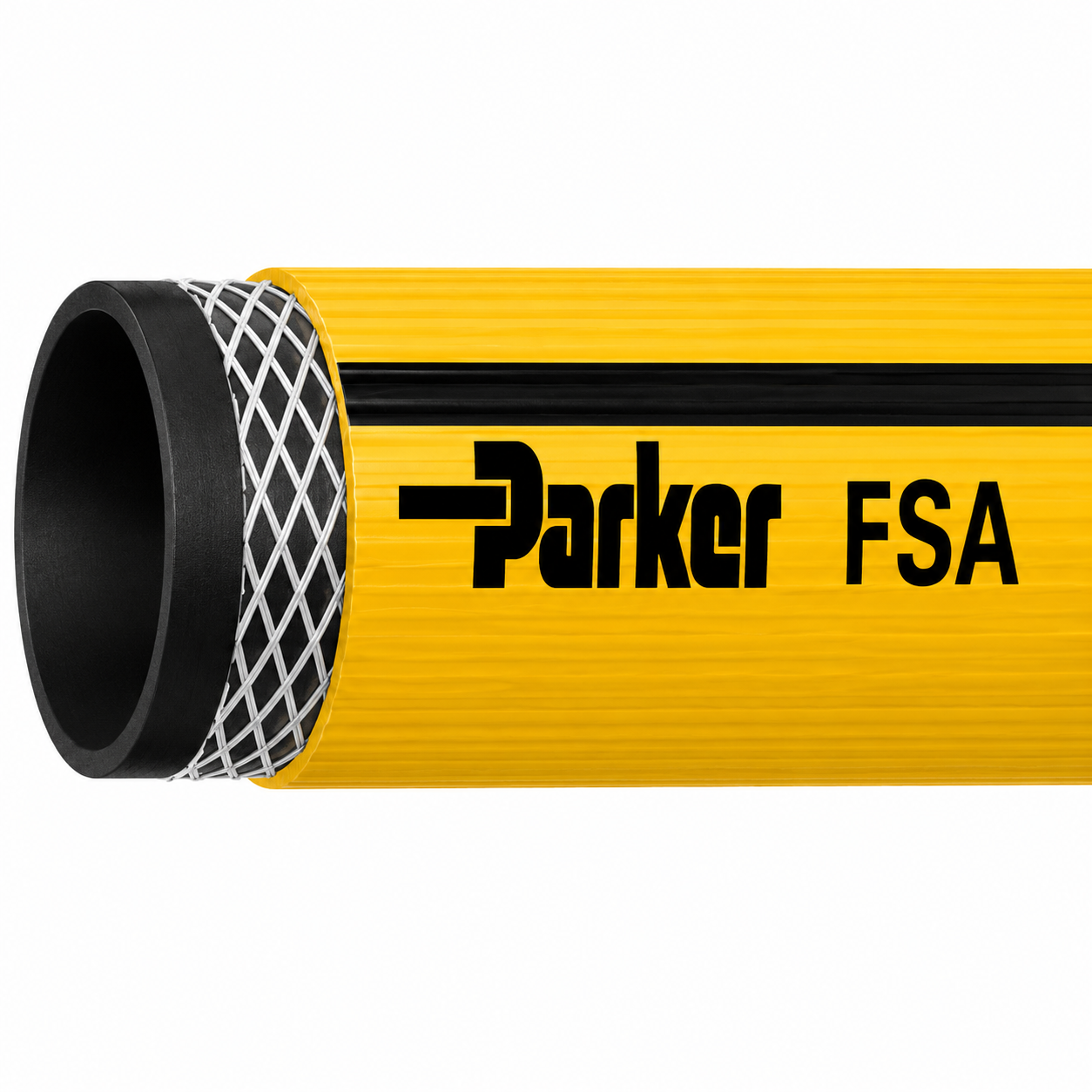

Coalmaster Fras Yellow Air/Water FRAS (Fire Resistant, Anti-Static) rated hose made from lightweight, highly abrasion resistant polymer developed specifically for use in the underground coal mining industry.
Technical Specifications
| Hose Inner Tube Material: | PVC |
| Nominal Hose Inside Diameter: | 10 to 50 mm |
| Maximum Operating Pressure: | 2.1 MPa, 21 bar, 305 psi |
| Maximum Operating Temperature: | 60 °C, 140 °F |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Cover Material: | PVC |
| Media: | Air (Compressed Air with traces of Oil) |
| Specifications Met: | AS 2554, Class A, AS 2660, Class A 7 |
| Weight: | 0.2 to 1.47 kg/m |
| Inside Diameter: | 3/8 to 2 inch, 10 to 50 mm |
| Hose Reinforcement Material: | Fiber |
| Minimum Bend Radius: | 85 to 320 mm, 85 to 250 mm |
| Outside Diameter: | 17 to 50 mm, 17 to 63 mm |
| Size: | -6 to -32 |
| Application: | Underground Coal Mines |
Additional information
| Part Number | FSA-012-020, FSA-012-033, FSA-025-033, FSA-038-020, FSA-050-020 |
|---|
