Gambrinus UPE SM EN 12115
DM 26744.0, DM 34069.18472222222, EN 12115.0, FDA 21 CFR 177
Description

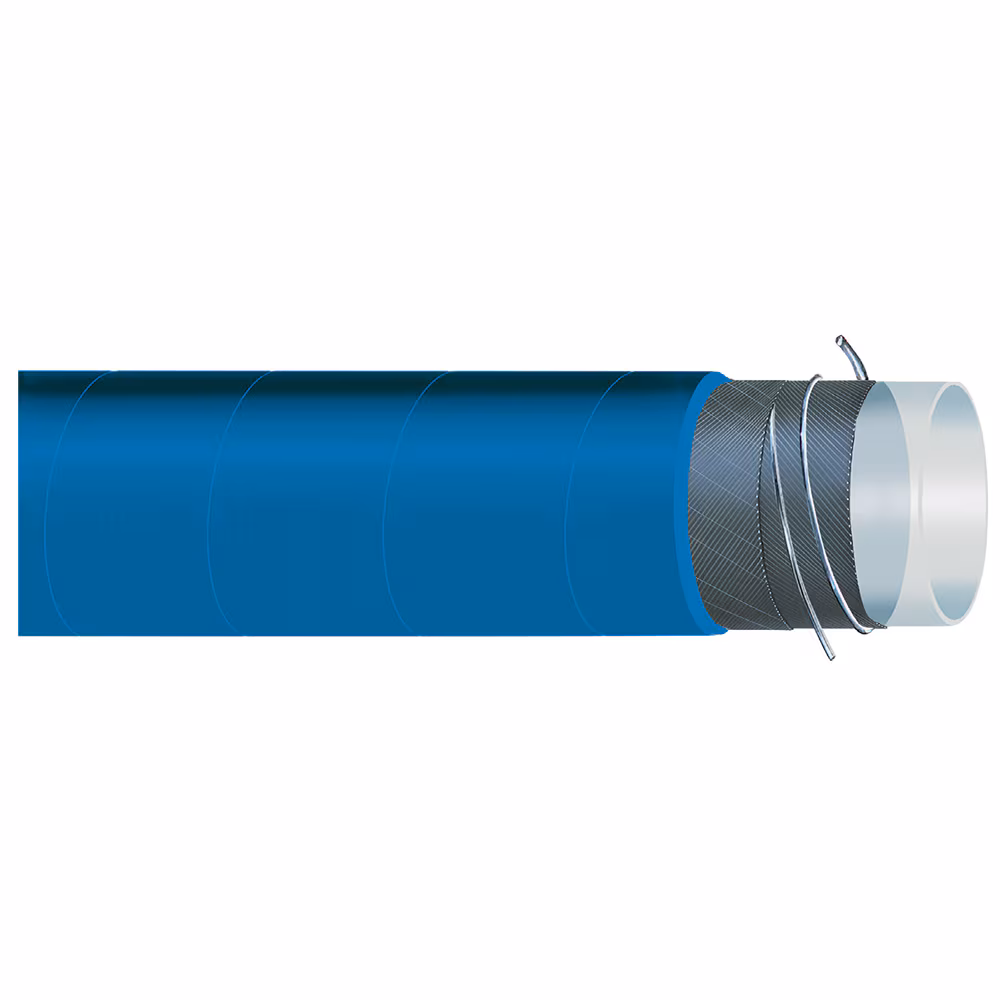

Gambrinus UPE SM EN 12115 is a medium pressure suction and discharge hose designed to handle all beverages, animal or vegetable fats and oils, pharmaceutical and sanitary materials.
Technical Specifications
| Weight: | 0.70 to 4.70 kg/m, 0.47 to 3.16 lb/ft |
| Industry: | Industrial Manufacturing Equipment, Transportation |
| Hose Inner Tube Material: | Polyethylene (PE) (UHMWPE) |
| Brand: | Parker |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Minimum Operating Temperature: | -20 °C, -4 °F |
| Product Type: | Food Grade Hose, Suction Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Design Factor: | 4:1 |
| Vacuum Pressure Rating: | 0.8 bar, 23.62 inch-Hg, 600 mm-Hg |
| Materials of Construction: | Rubber |
| Division: | Polymer Hose Division Europe |
| Product Style: | Suction and Delivery |
| Minimum Bend Radius: | 190 to 675 mm, 7.480 to 26.575 inch |
| Media: | Food & Beverage (All beverages, animal and vegetable fats and oils) |
| Specifications Met: | DM 26744.0, DM 34069.18472222222, EN 12115.0, FDA 21 CFR 177 |
| Compatible Fitting: | n/a |
| Inside Diameter: | 3/4 to 3.937 inch, 19 to 100 mm |
| Maximum Operating Pressure: | 12 to 16 bar, 180 to 232 psi |
| Application: | Beverage, Food |
| Hose Reinforcement Material: | Synthetic Textile Fabric with Embedded Steel Wire Helix and Copper Wire |
| Operating Features: | Sterilization at 130 °C for Short Periods. |
| Outside Diameter: | 1.220 to 4.567 inch, 31 to 116 mm |
Additional information
| Part Number | IH36242301/40, IH36242302/40, IH36242303/40, IH36242304/40, IH36242305/40, IH36242306/40, IH36242309/40 |
|---|
