JK
EES 116-4, EN 853, Type 2SN, ISO 1436, Type 2SN, NFPA 1936.0, SAE J517 and 100R2, Type AT
Description

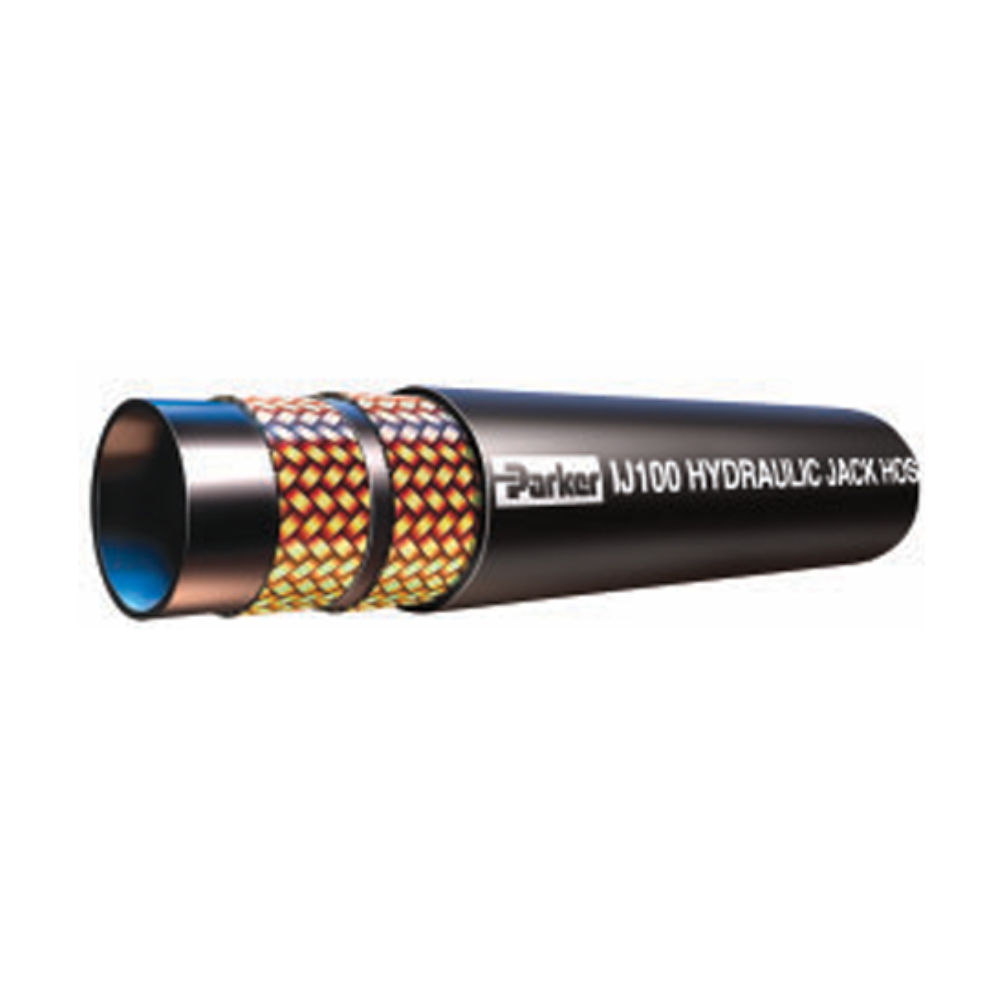

Parker’s JK hose is a hydraulic industry standard jack hose that has a pressure range of 10000-10500 PSI, with exceptional hydraulic fluid compatibility.
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Media: | Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | EES 116-4, EN 853, Type 2SN, ISO 1436, Type 2SN, NFPA 1936.0, SAE J517 and 100R2, Type AT |
| Compatible Fitting: | 43 Series |
| Maximum Operating Pressure: | up to 724 bar, up to 72.4 MPa, up to 10500 psi |
| Weight: | 0.39 to 0.55 kg/m, 0.26 to 0.37 lb/ft |
| Inside Diameter: | 1/4 to 3/8 inch, 6.3 to 10 mm |
| Application: | Construction Equipment, Hydraulics |
| Hose Reinforcement Material: | 2 Braids of Steel Wire |
| Outside Diameter: | 0.59 to 0.75 inch, 15 to 22 mm |
| Minimum Bend Radius: | 4 to 5 inch, 100 to 125 mm |
| Size: | -4 to -6 |
| Hose Inner Tube Material: | Synthetic Rubber |
| Cover Material: | Synthetic Rubber MSHA approved |
| Maximum Operating Temperature: | 120 °F, 49 °C |
| Hose Cover Type: | Standard Cover |
Additional information
| Part Number | JK-4, JK-6 |
|---|
