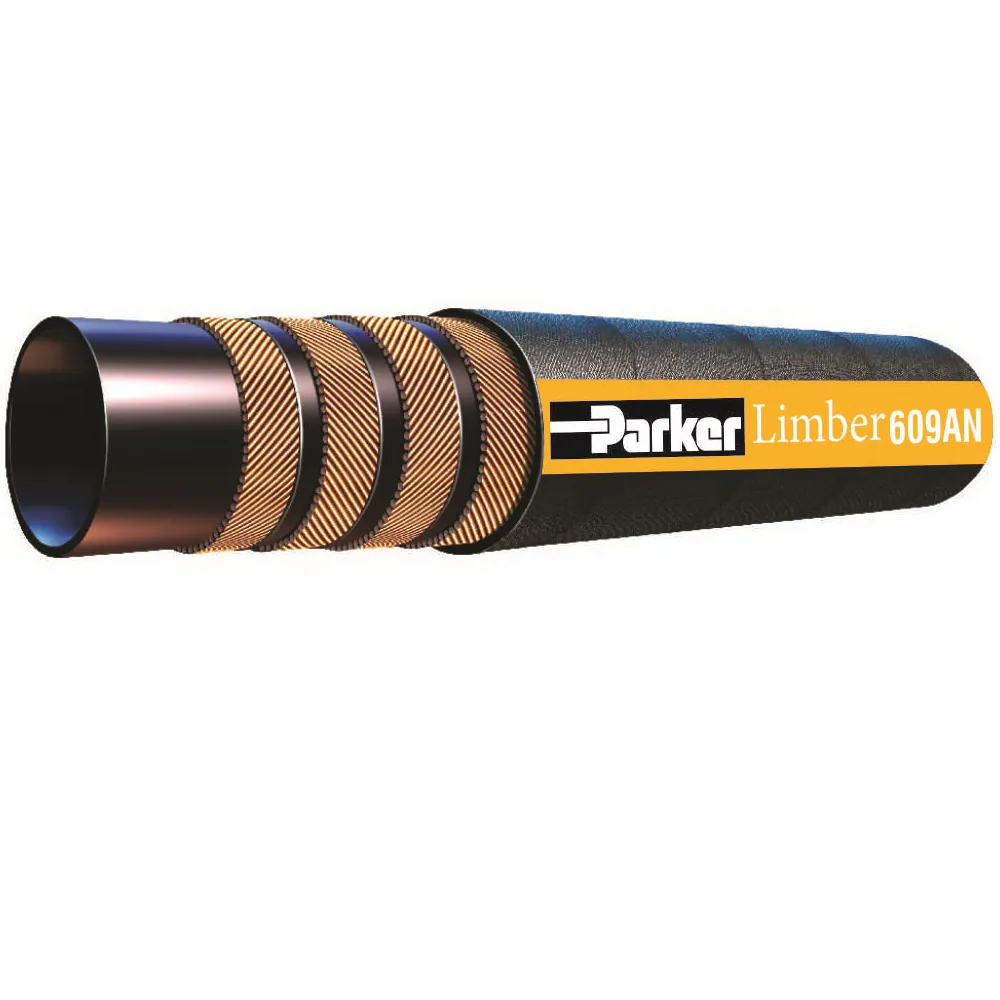

Limber 6K
Certification: ISO 18752 DC
Description
Limber 6K hose is one of the innovative Spiral hoses setting a higher benchmark in the hose industry meeting the toughest classification of the ISO 18752 DC. With superior performance, 609AN is the most preferable hose for demanding applications.
Technical Specifications
| Division: | Fluid Connectors India |
| Inner Tube: | NBR Based Oil & Heat Resistant Synthetic Rubber |
| Hose Reinforcement Material & Structure: | Four Spiral Steel Wire |
| Cover Material: | Nitrile based Flame Resistant MSHA Cover |
| Media: | Mineral Oil, Glycol, Water-glycol Emulsions, Water (0°C to +70’C) |
| Operating Pressure: | 6000 psi |
| Maximum Operating Temperature: | 121 °C |
| Minimum Operating Temperature: | -40 °C |
Additional information
| Part Number | 609AN-12, 609AN-16, 609AN-20, 609AN-24 |
|---|
