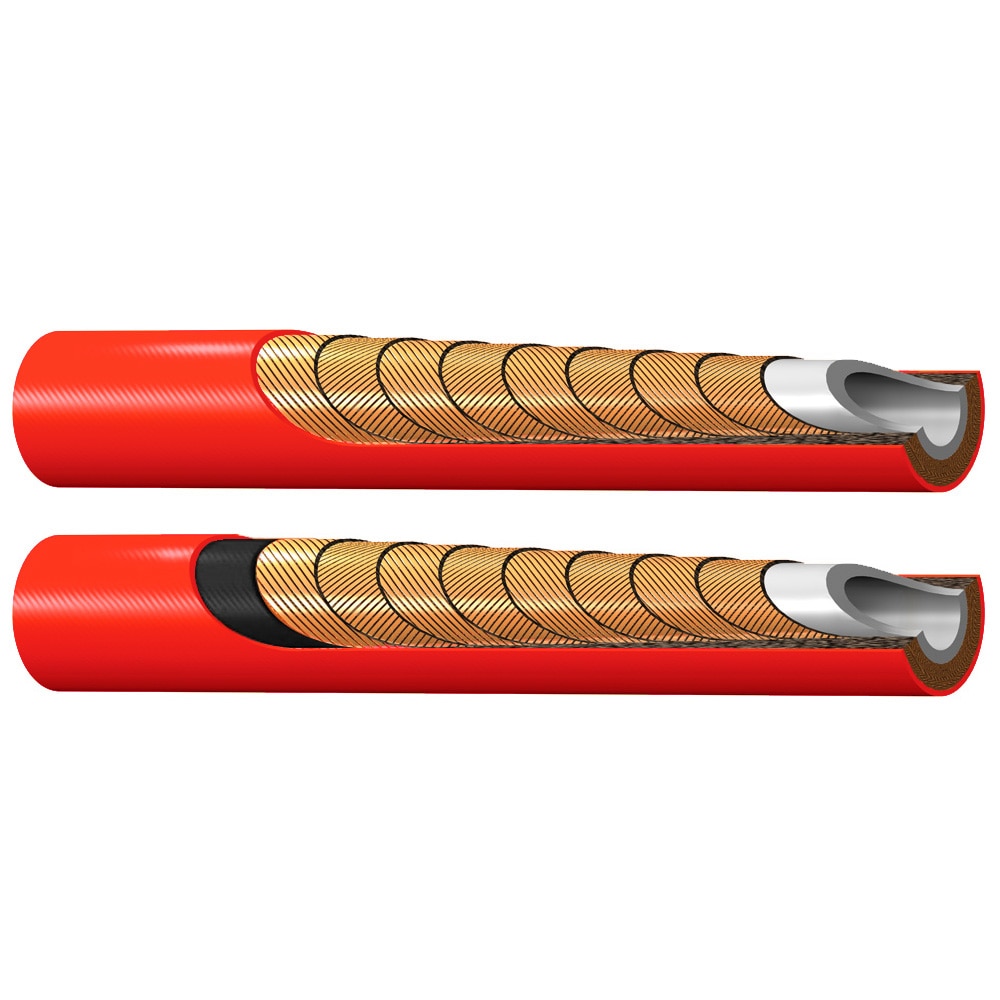

PFX38-05 (Ultra High pressure EU)
Certification: DIN 1829-2, ISO 23384
Description
Parker’s PFX38 delivers robustness and improved service life in the Ultra High Pressure waterblast applications. The series is compliant with ISO23384 and DIN EN 1829-2.
Technical Specifications
| Industry: | Industrial Manufacturing Equipment, Construction |
| Hose Inner Tube Material: | Polyoxymethylene (POM) |
| Brand: | Parker |
| Maximum Operating Temperature: | 158 °F, 70 °C |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Maximum Operating Pressure: | 380 MPa, 55100 psi, 3800 bar |
| Application: | Industrial Cleaning, Hydrodemolition, Waterblasting |
| Product Type: | High Pressure Hose, Water Blast Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Polyamide (PA), Polyurethane |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 11.024 inch, 280 mm |
| Specifications Met: | DIN 1829-2, ISO 23384 |
| Compatible Fitting: | 2X Series |
| Weight: | 1.25 to 1.42 kg/m, 0.84 to 0.95 lb/ft |
| Inside Diameter: | 5/16 inch, 7.8 mm |
| Minimum Burst Pressure: | 760 MPa, 110200 psi |
| Design Factor: | 2 |
| Hose Reinforcement Material: | 8 Spirals of Maximum Tensile Steel Wire |
| Outside Diameter: | 0.807 to 0.964 inch, 20.5 to 24.5 mm |
Additional information
| Part Number | PFX38-05, PFX38-05-TJ |
|---|
