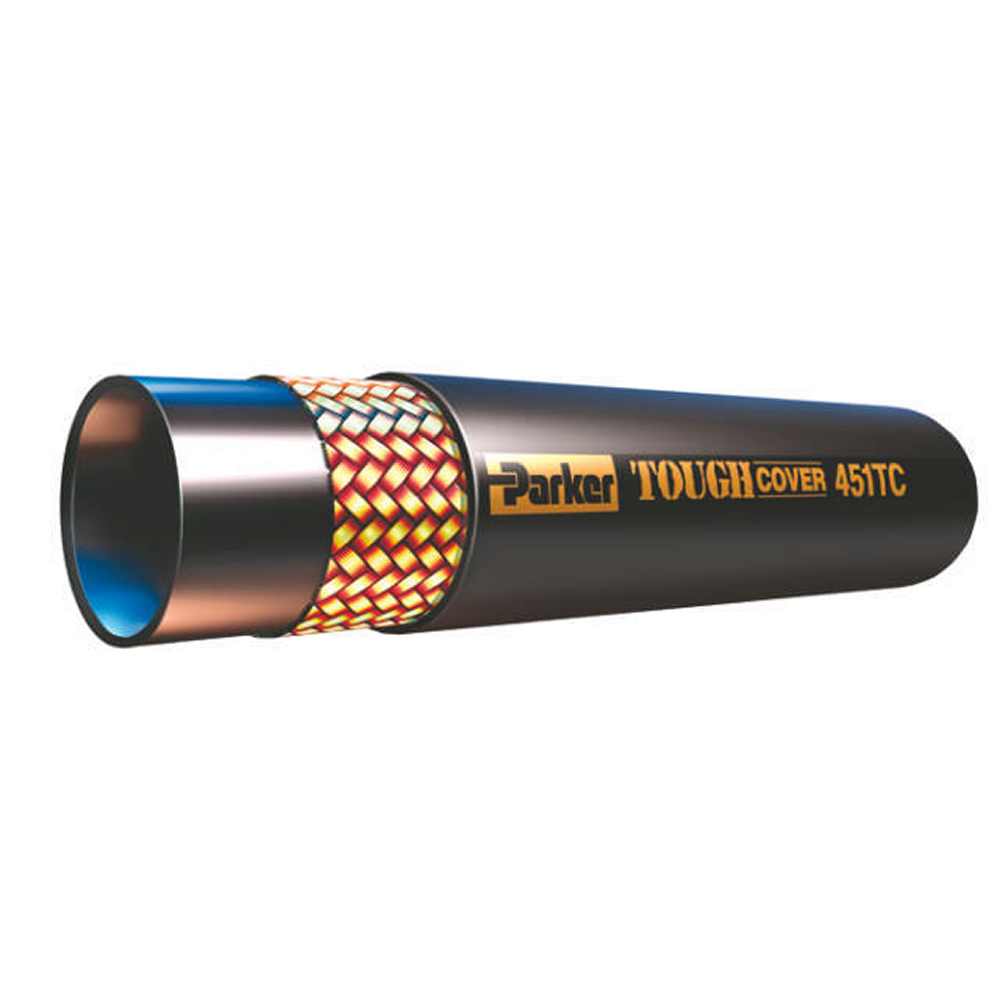

451
Certification: ABS, ISO 11237, Type R17 (Constant Working Pressure), SAE 100R17, SAE J1942, USCG HF
Description
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Media: | Industrial Fluids, Lubricants (Oils) |
| Specifications Met: | ABS, ISO 11237, Type R17 (Constant Working Pressure), SAE 100R17, SAE J1942, USCG HF |
| Compatible Fitting: | 43 Series |
| Inside Diameter: | 1/4 to 1-1/4 inch, 6.3 to 31.5 mm |
| Maximum Operating Pressure: | 21.0 MPa, 3000 psi, 206.84 bar |
| Application: | Lubricating Oils, Petroleum Base Hydraulic Fluids |
| Hose Reinforcement Material: | 1 or 2 Braids of Steel Wire, 4 Spirals |
| Nominal Hose Inside Diameter: | 6 to 31 mm |
| Outside Diameter: | 0.52 to 1.85 inch, 13 to 47 mm |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Hose Inner Tube Material: | Synthetic Rubber |
| Cover Material: | Synthetic Rubber Abrasion Resistant, MSHA approved |
| Minimum Bend Radius: | 50 to 210 mm, 2 to 8-1/4 inch |
| Weight: | 0.16 to 1.50 lb/ft, 0.24 to 2.23 kg/m |
Additional information
| Part Number | 451TC-4, 451TC-6, 451TC-8, 451TC-10, 451TC-12, 451TC-16, 451TC-20 |
|---|
