6723
N/A
Description

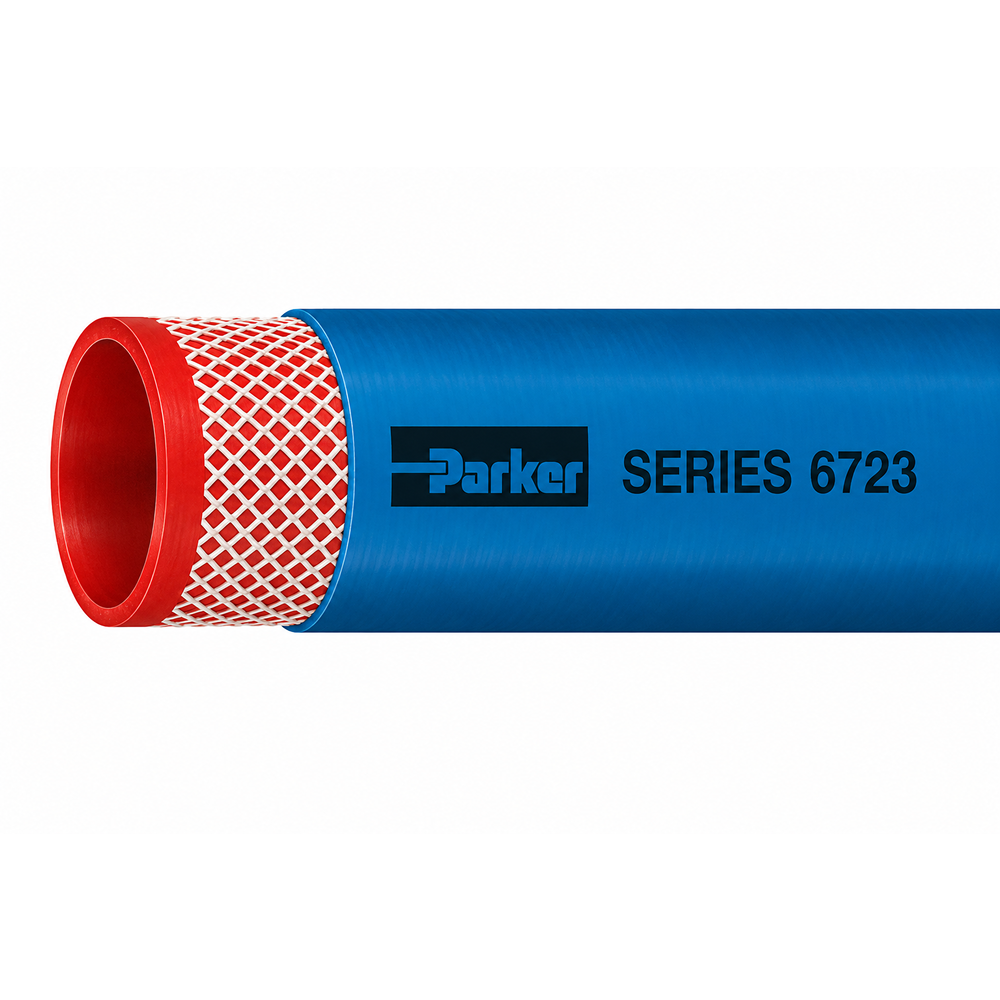

Silicone Heavy Wall High Temperature Heater Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 350°F and 83 psi, Series 6723
Technical Specifications
| Cover Material: | Silicone |
| Application: | Engine |
| Media: | Coolants |
| Inside Diameter: | 0.375 to 1.000 inch, 9.5 to 25.4 mm |
| Maximum Operating Pressure: | 4 to 5.7 bar, 0.4 to 0.6 MPa, 58 to 83 psi |
| Hose Reinforcement Material: | Multiple Plies of High Temperature Textile |
| Package Type: | Carton, Reel |
| Outside Diameter: | 0.80 to 1.40 inch, 19.4 to 35.3 mm |
| Size: | -6 to -16 |
| Nominal Hose Inside Diameter: | 8 to 25 mm |
| Hose Inner Tube Material: | Brick Red, Silicone |
| Cover Color: | Blue |
| Cover Structure: | Glossy |
| Minimum Operating Temperature: | -65 °F, -54 °C |
| Maximum Operating Temperature: | 392 °F, 200 °C |
| Weight: | 0.15 to 0.39 lb/ft, 0.22 to 0.58 kg/m |
| Minimum Bend Radius: | 1 to 4 inch, 16 to 102 mm |
| Minimum Burst Pressure: | 175 to 250 psi, 12 to 17 bar |
Additional information
| Part Number | 6723-0375250, 6723-0625050, 6723-0625100, 6723-0750050, 6723-0750100, 6723-1000050 |
|---|
