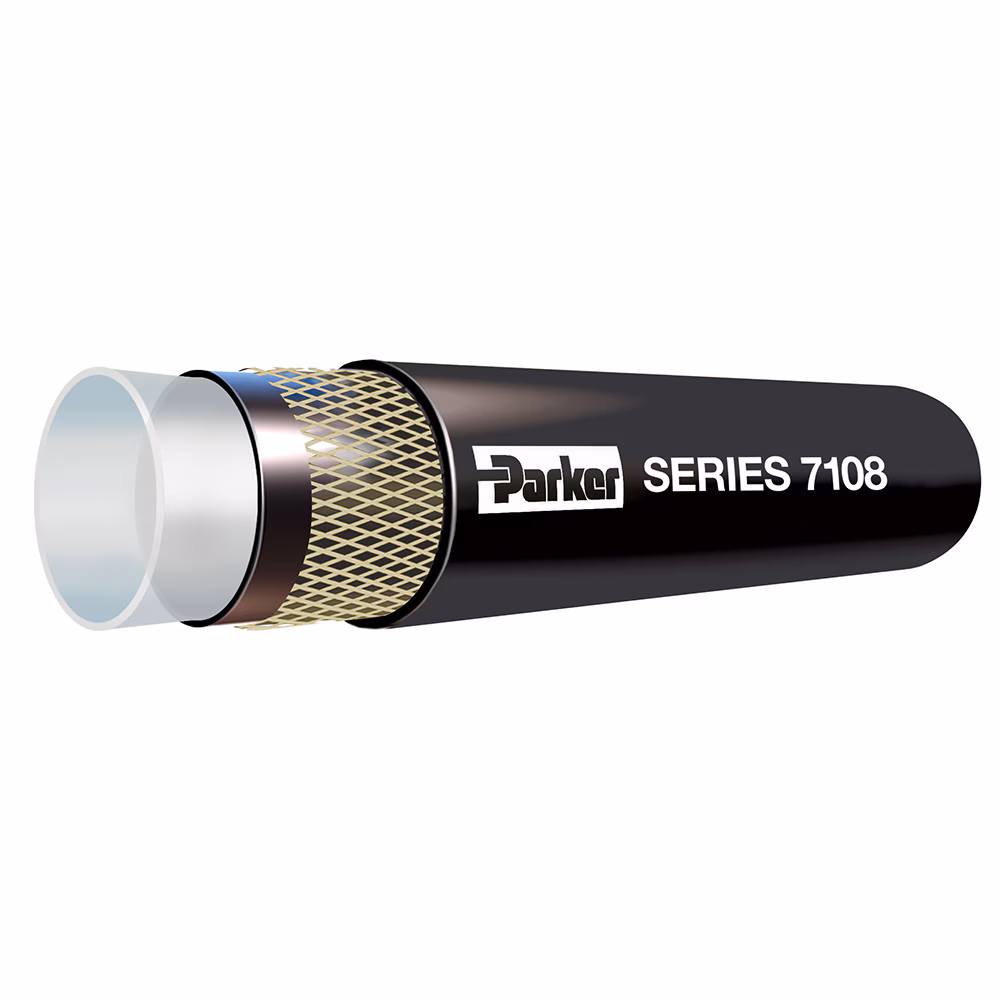

7108
N/A
Description
Series 7108 hose is designed for transfer of high aromatic content products such as ketone solvents, lacquers, paint thinners, oil-based and water-based paints and many common chemicals used in applications to 93°C and 51,7 bar.
Technical Specifications
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Cover Structure: | Smooth |
| Media: | Chemicals – Check your fluid compatibility with our catalogue chart. |
| Specifications Met: | n/a |
| Compatible Fitting: | HY Series, 43 Series |
| Weight: | 0.13 to 0.24 kg/m, 0.09 to 0.16 lb/ft |
| Inside Diameter: | 1/4 to 3/8 inch, 6.4 to 9.5 mm |
| Application: | Chemical Transfer |
| Hose Reinforcement Material: | Multiple Plies of Aramid |
| Nominal Hose Inside Diameter: | DN6 to 12 |
| Minimum Bend Radius: | 2.992 to 4.016 inch, 76 to 102 mm |
| Outside Diameter: | 0.488 to 0.681 inch, 12.4 to 17.3 mm |
| Size: | -4 to -8 |
| Cover Material: | Chloroprene Rubber (CR) |
| Hose Inner Tube Material: | Translucent, Polyamide (PA) |
| Maximum Operating Pressure: | 35 bar, 500 psi, 3.5 MPa |
| Maximum Operating Temperature: | 180 °F, 82 °C |
Additional information
| Part Number | 7108-251, 7108-381 |
|---|
