Aperfrut
Parker Specifications
Description
Aperfrut is a PVC multipurpose hose particularly designed for spraying applications of light chemicals.
Technical Specifications
| Weight: | 0.07 to 0.25 lb/ft, 0.11 to 0.38 kg/m |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery |
| Hose Inner Tube Material: | PVC |
| Brand: | Parker |
| Maximum Operating Temperature: | 140 °F, 60 °C |
| Minimum Operating Temperature: | -15 °C, 5 °F |
| Maximum Operating Pressure: | 2.0 to 8.0 MPa, 20 to 80 bar, 300 to 1200 psi |
| Product Type: | Chemical Hose, Transfer Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | PVC |
| Division: | Polymer Hose Division Europe |
| Product Style: | Delivery |
| Minimum Bend Radius: | 1.181 to 3.937 inch, 30 to 100 mm |
| Materials of Construction: | Rubber |

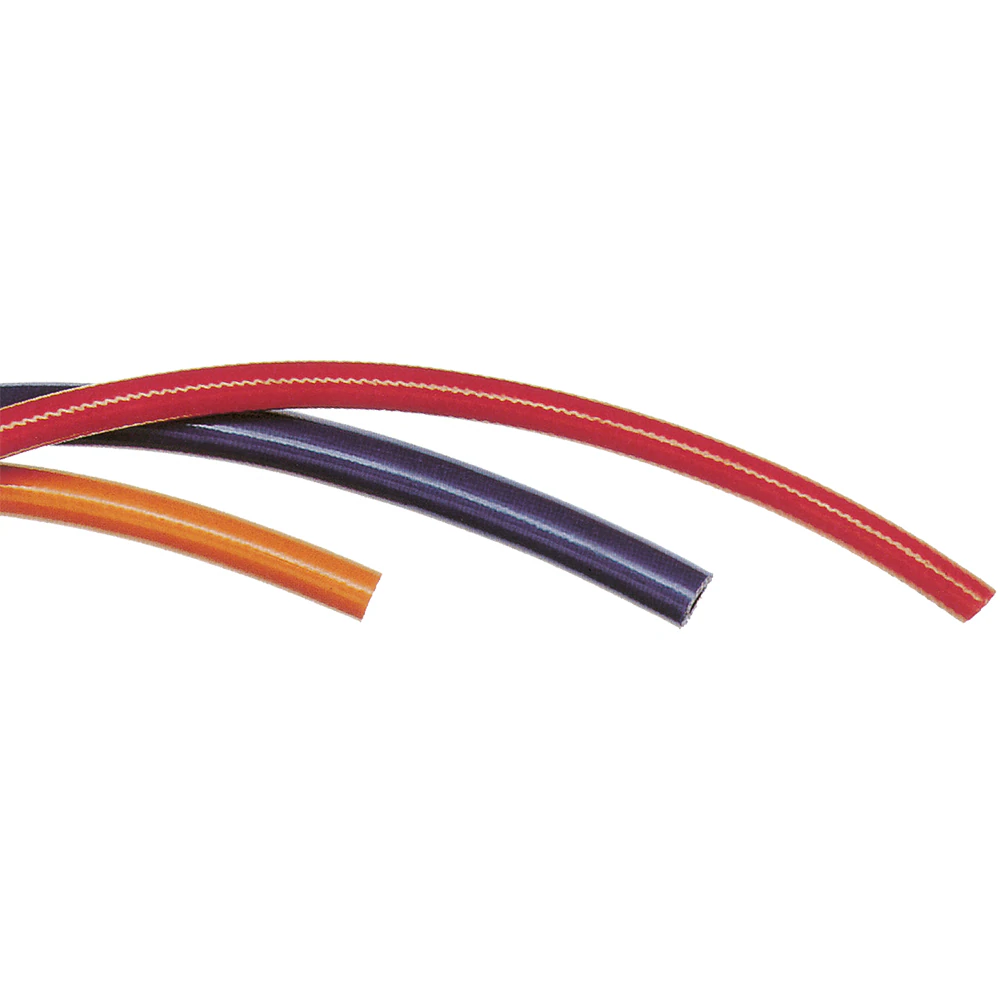

| Cover Color: | Blue (80 bar), Orange (20 bar), Red (40 bar) |
| Specifications Met: | Parker Specifications |
| Compatible Fitting: | n/a |
| Inside Diameter: | 5/16 to 3/4 inch, 8 to 19 mm |
| Application: | Air, Multipurpose |
| Design Factor: | 2.5:1 (for 80 bar), 3:1 (for 20 and 40 bar) |
| Hose Reinforcement Material: | Synthetic Textile Yarn |
| Outside Diameter: | 0.512 to 1.043 inch, 13 to 26.5 mm |
| Media: | Chemicals (Fungicide products) – Check your fluid compatibility with our catalogue chart., Chemicals – Check your fluid compatibility with our catalogue chart. |
Additional information
| Part Number | IH35040014/100, IH35040016/100, IH35040261/100, IH35040268/100, IH35040270/100, IH35040214/100 |
|---|
