7186
Certification:N/A
Description

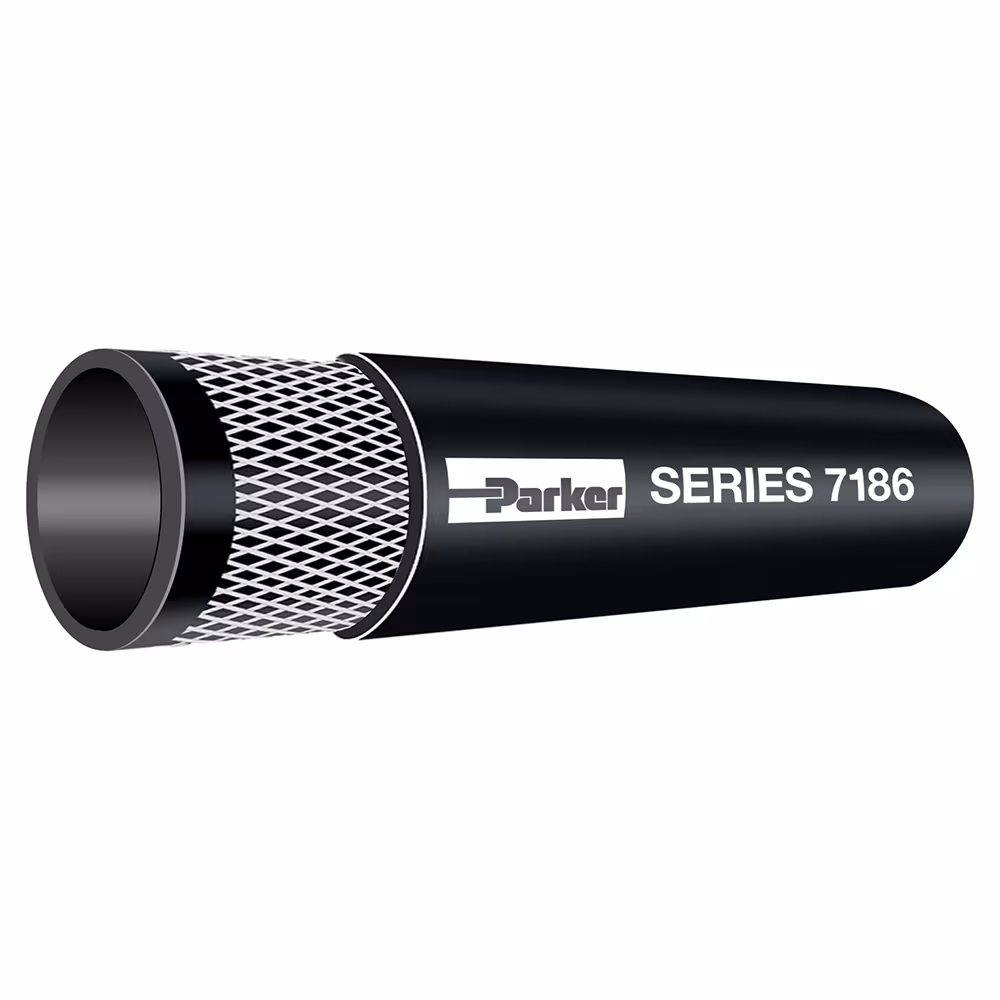

Standard Duty Heater Hose is designed for use in heater and radiator systems in in vehicles and industrial equipment in applications to 212°F and 125 psi, Series 7186
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Black |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Maximum Operating Temperature: | 200 °C, 392 °F |
| Application: | Engine |
| Weight: | 0.25 to 0.36 kg/m, 0.17 to 0.24 lb/ft |
| Maximum Operating Pressure: | 0.5 to 0.9 MPa, 70 to 125 psi, 4.8 to 8.6 bar |
| Nominal Hose Inside Diameter: | 5 to 20 mm |
| Media: | Coolants |
| Inside Diameter: | 12.7 to 19.1 mm, 1/2 to 3/4 inch |
| Package Type: | Reel, Carton |
| Outside Diameter: | 19.8 to 26.2 mm, 0.781 to 1.032 inch |
| Specifications Met: | n/a |
| Hose Reinforcement Material: | 2 Plies of Textile |
| Size: | -8 to -12 |
| Cover Color: | Black |
| Minimum Bend Radius: | 6 to 9 inch, 152 to 229 mm |
Additional information
| Part Number | 7186-501, 7186-501050, 7186-631, 7186-631050, 7186-751, 7186-751050 |
|---|
