7374
N/A
Description

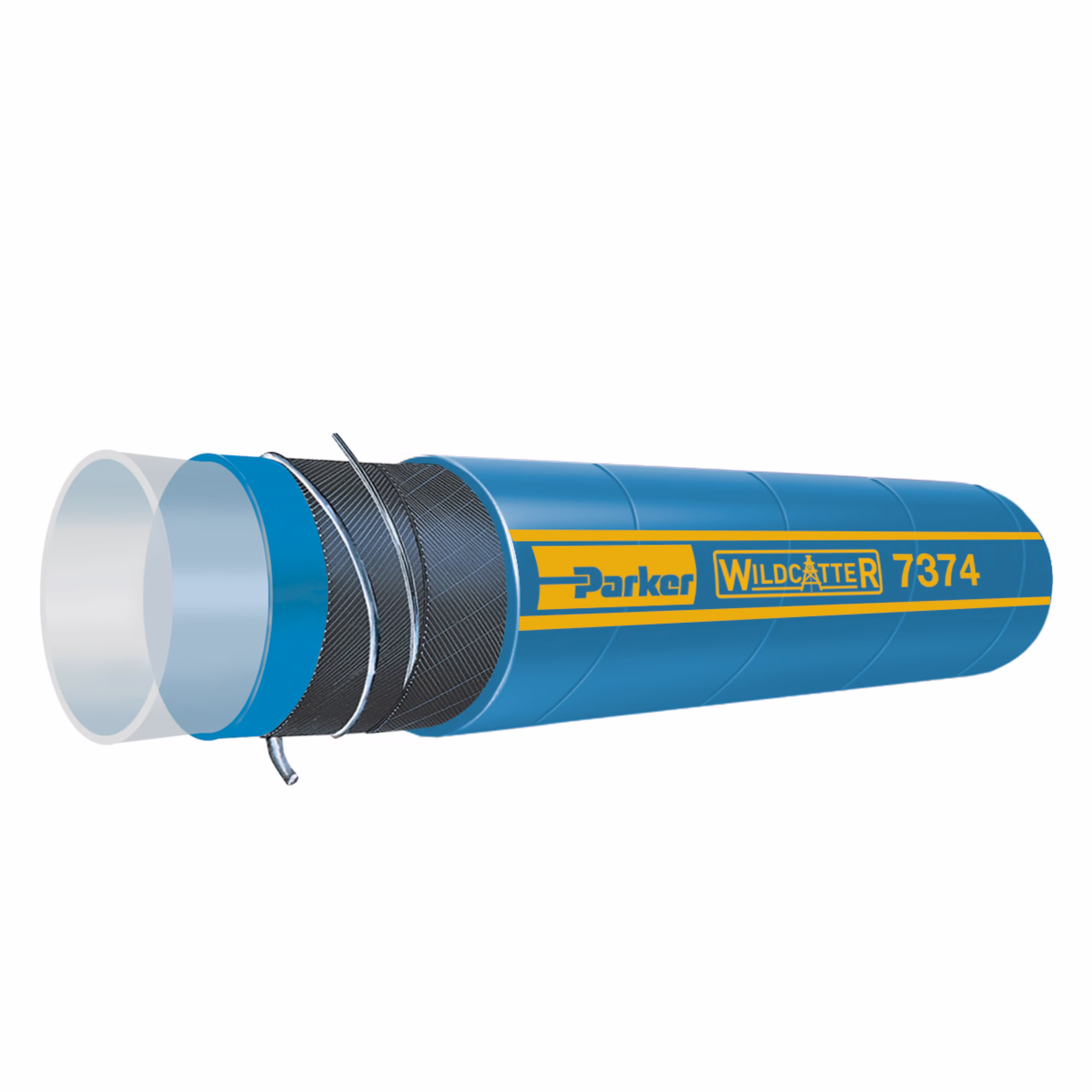

Wildcatter Oilfield High Pressure Chemical Hose is designed for suction, discharge and transfer of acids, chemicals and solvents in applications to 180°F and 600 psi, Series 7374
Technical Specifications
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Cover Structure: | Wrapped |
| Application: | Oilfield |
| Weight: | 0.68 to 1.48 lb/ft, 1.01 to 2.21 kg/m |
| Vacuum Pressure Rating: | 29 inch-Hg, 737 mm-Hg, Full |
| Maximum Operating Pressure: | 2.8 to 4.1 MPa, 400 to 600 psi, 27.6 to 41.4 bar |
| Media: | Chemicals – Check your fluid compatibility with our catalogue chart. |
| Nominal Hose Inside Diameter: | 25 to 50 mm |
| Specifications Met: | n/a |
| Compatible Fitting: | n/a |
| Inside Diameter: | 1 to 2 inch, 25.4 to 50.8 mm |
| Design Factor: | 4:1 |
| Hose Reinforcement Material: | Multiple Plies of Textile with Dual Wire Helix |
| Package Type: | Coil |
| Outside Diameter: | 40.1 to 68.1 mm, 1.580 to 2.680 inch |
| Minimum Bend Radius: | 4 to 8 inch, 101.6 to 203.2 mm |
| Size: | -16 to -32 |
| Hose Inner Tube Material: | Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE) |
| Cover Color: | Blue |
| Maximum Operating Temperature: | 180 °F, 82 °C |
| Length per Package: | 100 ft |
Additional information
| Part Number | 7374-1000, 7374-1250, 7374-1500, 7374-2000 |
|---|
