7581
FDA
Description

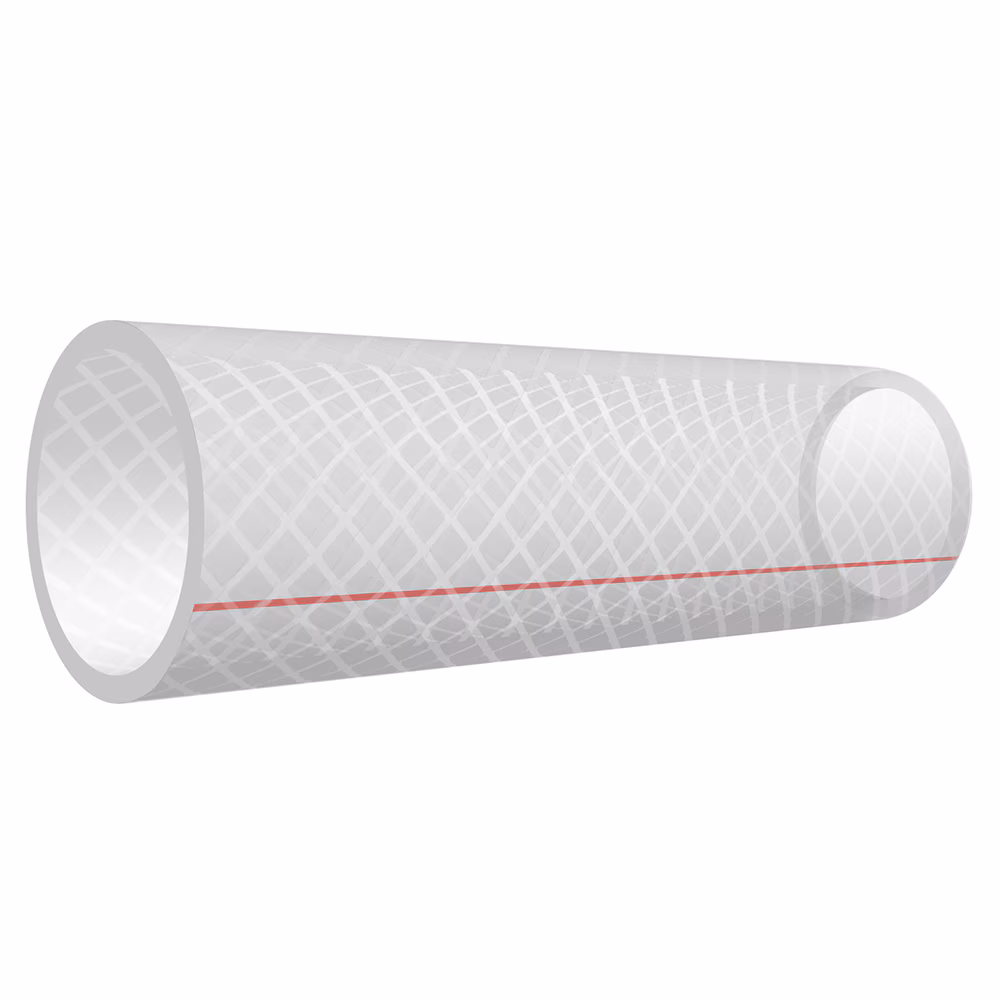

Thoro-Braid PVC Clear General Service Hose is designed for transfer of abrasives, air, food particulates, sanitary products and potable water in applications to 140°F and 355 psi, Series 7581
Technical Specifications
| Maximum Operating Temperature: | 65 °C, 150 °F |
| Maximum Operating Pressure: | 200 to 300 psi, 1.4 to 2.1 MPa |
| Cover Color: | Transparent, Blue |
| Media: | Air, Mild Chemicals – Check your fluid compatibility with our catalogue chart., Water |
| Inside Diameter: | 1/4 to 2 inch, 6.4 to 50.8 mm |
| Nominal Hose Inside Diameter: | 8 to 50 mm |
| Application: | Multipurpose, Air |
| Outside Diameter: | 12.4 to 61.0 mm, 0.490 to 2.400 inch |
| Size: | -4 to -32 |
| Hose Reinforcement Material: | 2 Plies of Textile with Longitudinal Red Tracer Yarn |
| Package Type: | Coil |
| Minimum Bend Radius: | 3 to 18 inch, 76.2 to 457.2 mm |
| Hose Inner Tube Material: | Clear, PVC |
| Cover Structure: | Smooth |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Weight: | 0.06 to 0.91 lb/ft, 0.09 to 1.36 kg/m |
| Length per Package: | 100 to 300 ft |
Additional information
| Part Number | 7581-251, 7581-381, 7581-501, 7581-631, 7581-751, 7581-1001, 7581-1251, 7581-1501, 7581-2001 |
|---|
