Flare-Seal

FDA 21 CFR 177.1550, ISO 10993, Sections 5, 6, 10, 11, USP Class VI (dependent on style)

Category:

Description

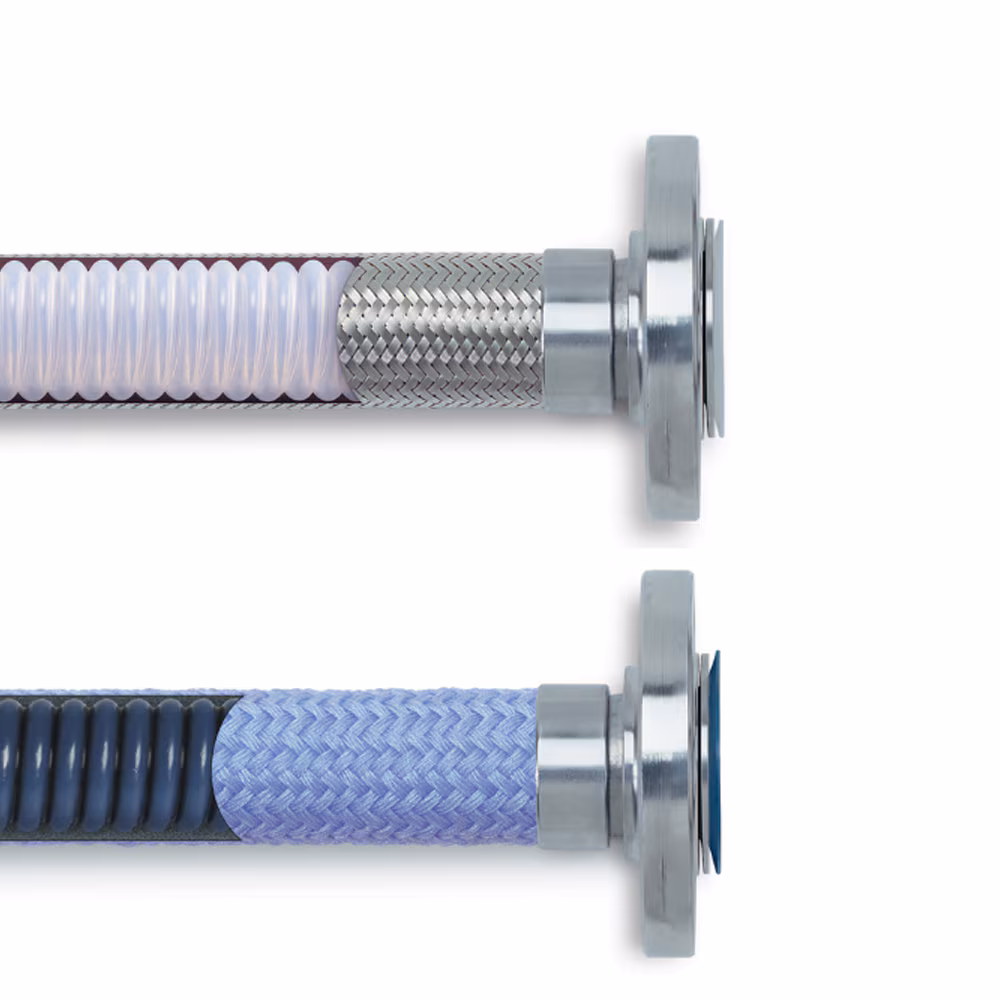

Flare-Seal® assemblies increase flow by providing smooth, clean connections and preventing bacterial entrapment. They are available with a stainless steel braid, polypropylene braid or other optional braids for fluid handling and paint applications.

Technical Specifications

Design Factor: 4
Cover Color: n/a, Natural
Media: Air, Chemicals – Check your fluid compatibility with our catalogue chart., Food & Beverage, Industrial Fluids, Petroleum Hydraulic Fluids, Water, Welding Gases (Technical Gases)
Specifications Met: FDA 21 CFR 177.1550, ISO 10993, Sections 5, 6, 10, 11, USP Class VI (dependent on style)
Compatible Fitting: PAGE Series
Weight: 0.20 to 3.13 kg/m, 0.14 to 2.10 lb/ft
Maximum Operating Temperature: 500 °F, 212 °C
Minimum Operating Temperature: -100 °F, -73 °C
Minimum Bend Radius: 2 to 16 inch, 51 to 406 mm
Size: -8 to -64
Inside Diameter: 1/2 to 4 inch, 13 to 102 mm
Maximum Operating Pressure: 1.0 to 3.5 MPa, 150 to 500 psi
Application: Chemical Transfer, Fluid Handling, Food & Beverage Processing, Industrial, Manufacturing, Medical, Pharmaceutical, Processing
Product Type: PTFE Hose
Hose Inner Tube Material: Polytetrafluoroethylene (PTFE)
Cover Material: n/a
Vacuum Pressure Rating: 28 inch-Hg, 711.2 mm-Hg
Outside Diameter: 0.750 inch, 1.040 inch, 1.250 inch, 1.660 inch, 1.920 inch, 2.490 inch, 3.250 inch, 3.800 inch, 4.760 inch, 19 to 121 mm
Hose Reinforcement Material: Braid of 316 Stainless Steel
Product Style: Flare Seal, Static Dissipative

Additional information

Part Number

08-SCBV-FS, 12-SCBV-FS, 16-SCBV-FS, 20-SCBV-FS, 24-SCBV-FS, 32-SCBV-FS, 40-SCBV-FS, 48-SCBV-FS, 64-SCBV-FS
08-SCWV-FS, 12-SCWV-FS, 16-SCWV-FS, 20-SCWV-FS, 24-SCWV-FS, 32-SCWV-FS, 40-SCWV-FS, 48-SCWV-FS, 64-SCWV-FS
