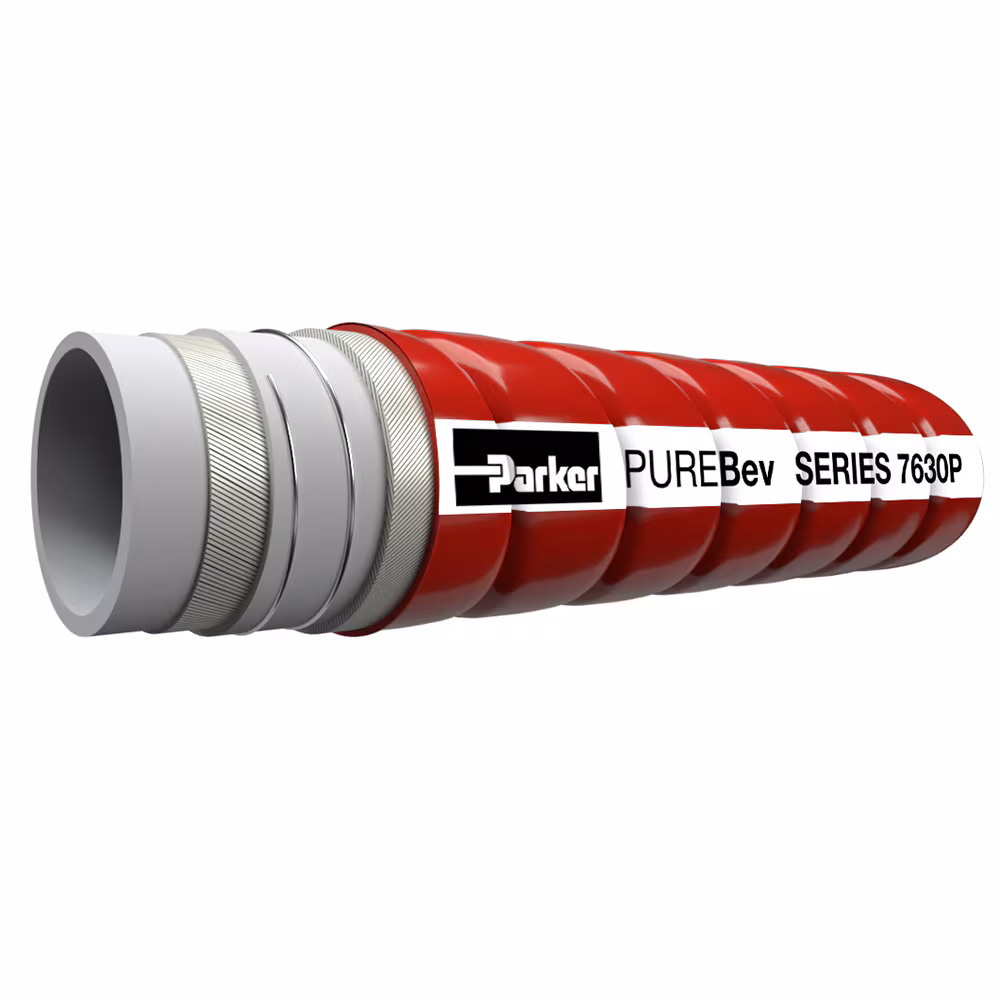

7630P
Certification: 3A, CE, DM, FDA, GMP, MHLW, REACH
Description
PUREBev Series 7630P features our PRO cover and is designed to convey beer, wine, potable water and other food and beverage applications. Tube materials consist of premium Butyl and UHMWPE materials.
Technical Specifications
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Cover Color: | Red |
| Cover Material: | Low Friction Material |
| Media: | Food & Beverage (Beer, Wine, Consumable Liquids) |
| Specifications Met: | 3A, CE, DM, FDA, GMP, MHLW, REACH |
| Weight: | 0.91 to 3.51 kg/m, 0.61 to 2.35 lb/ft |
| Inside Diameter: | 25.4 to 76 mm |
| Application: | Beverage (Beer, wine and consumable liquids) |
| Hose Reinforcement Material: | Synthetic Plies with Galvanized Wire Helix |
| Minimum Bend Radius: | 4.13 to 8.86 inch, 105 to 225 mm |
| Outside Diameter: | 38 to 94 mm |
| Vacuum Pressure Rating: | 26.5 inch-Hg, 90 kPa |
| Maximum Operating Pressure: | 250 psi, 16 bar |
| Minimum Burst Pressure: | 900 psi, 60 bar |
| Maximum Operating Temperature: | 248 °F, 120 °C |
| Cover Structure: | Wide Corrugated |
| Hose Inner Tube Material: | White, Butyl, Phtalates Free |
Additional information
| Part Number | 7630P-1000, 7630P-1500, 7630P-2000, 7630P-2500, 7630P-3000 |
|---|
