7630PL
Certification: 3A, CE, DM, FDA, GMP, MHLW, REACH
Description

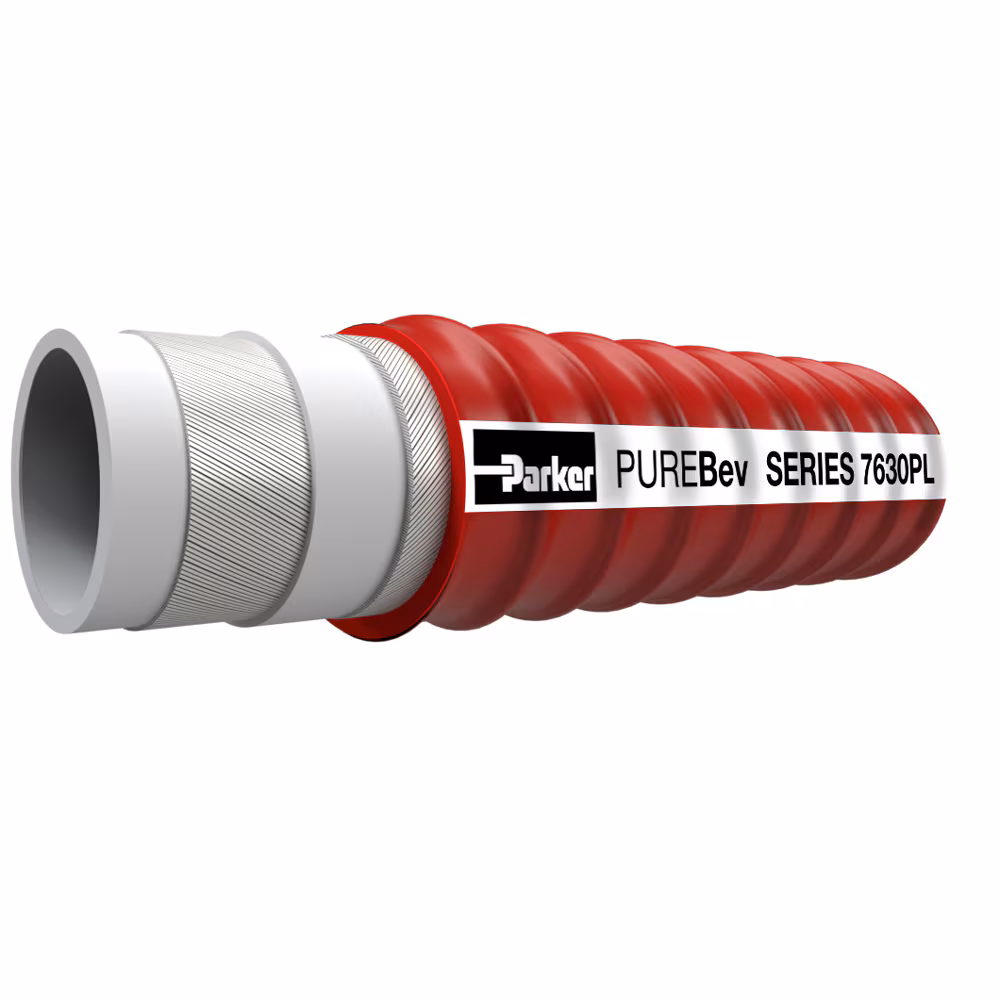

PUREBev Series 7630PL featuring our PLUS cover confirms exceptional quality. This extra flexible, light weight delivery and suction hose is designed for non-fatty food products including beer and wine. Tube consist of premium Butyl and UHMWPE materials.
Technical Specifications
| Hose Inner Tube Material: | White, Butyl, Phtalates Free |
| Minimum Bend Radius: | 3.15 to 7.87 inch, 80 to 200 mm |
| Cover Color: | Red (red outer thermoplastic helix nested within the rubber cover) |
| Cover Material: | Rubber (red outer thermoplastic helix nested within the rubber cover) |
| Cover Structure: | Deeply Corrugated, Smooth |
| Media: | Food & Beverage (Beer, Wine, Consumable Liquids) |
| Specifications Met: | 3A, CE, DM, FDA, GMP, MHLW, REACH |
| Weight: | 1.40 to 3.66 kg/m, 0.94 to 2.46 lb/ft |
| Inside Diameter: | 38 to 102 mm |
| Application: | Beverage |
| Hose Reinforcement Material: | Synthetic Plies with Thermoplastic Wire Helix |
| Vacuum Pressure Rating: | 90 kPa |
| Maximum Operating Pressure: | 150 psi, 10 bar |
| Minimum Burst Pressure: | 450 psi, 30 bar |
| Minimum Operating Temperature: | -13 °F, -25 °C |
| Maximum Operating Temperature: | 248 °F, 120 °C |
Additional information
| Part Number | 7630PL-1500, 7630PL-2000, 7630PL-2500, 7630PL-3000, 7630PL-3000 |
|---|
