7680
Certification: FDA (not to be used in food contact/transfer)
Description

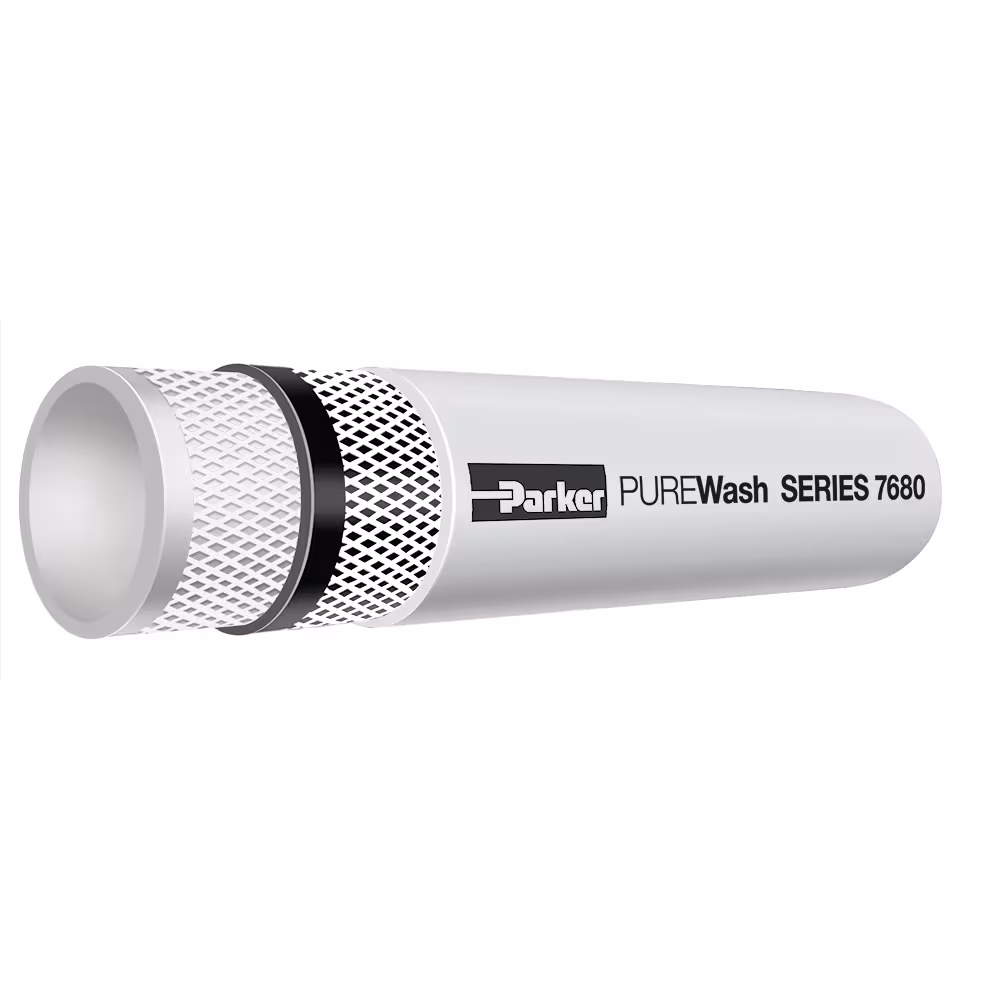

PUREWash Series 7680 hose can be used in virtually every type of food and beverage processing plant. The tube is FDA compliant (not to be used in food transfer) and the cover is non-marking and also available in blue for a cleaner look.
Technical Specifications
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM) FDA Compliant, White FDA Compliant |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Cover Color: | Blue, White |
| Specifications Met: | FDA (not to be used in food contact/transfer) |
| Weight: | 0.11 to 0.24 kg/m, 0.25 to 0.52 lb/ft |
| Inside Diameter: | 0.50 to 1 inch, 12.7 to 25.4 mm |
| Compatible Fitting: | HY Series |
| Application: | Equipment Sanitation, Food & Beverage Processing, Preventative Maintenance |
| Hose Reinforcement Material: | 4 Plies of Textile |
| Minimum Bend Radius: | 5 to 8 inch, 127 to 203 mm |
| Outside Diameter: | 0.875 to 1.438 inch, 22.2 to 36.5 mm |
| Maximum Operating Pressure: | 300 psi, 20.7 bar |
| Maximum Operating Temperature: | 212 °F, 100 °C |
Additional information
| Part Number | 7680-8-BLU-RL, 7680-8-WHT-RL, 7680-12-BLU-BX, 7680-12-BLU-RL, 7680-12-WHT-RL, 7680-16-BLU-RL, 7680-16-WHT-RL |
|---|
