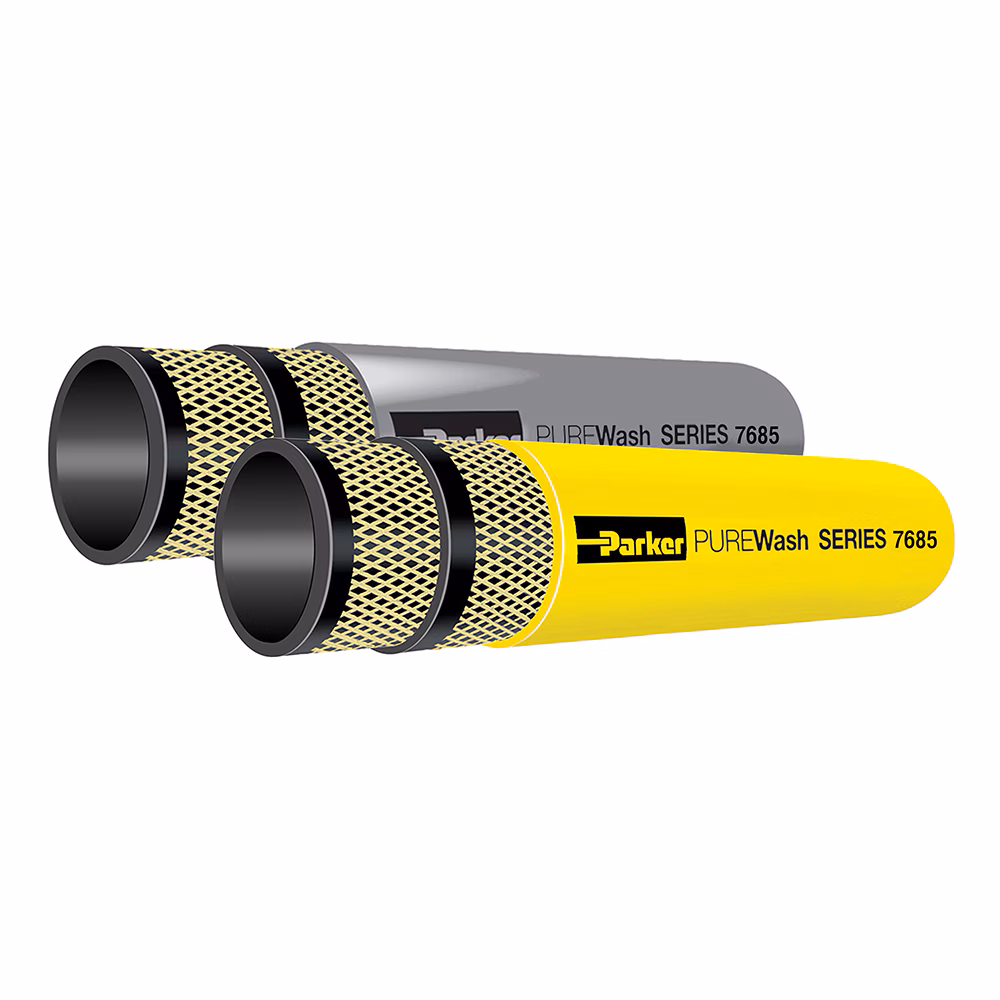

7685
Certification: N/A
Description
PUREWash Series 7685 is a high pressure washdown hose that can be used in virtually every type of food and beverage processing plant and in general industrial applications.
Technical Specifications
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Black |
| Cover Structure: | Smooth |
| Minimum Operating Temperature: | -40 °F |
| Cover Color: | Gray, Yellow |
| Media: | Food & Beverage (Food & Beverage Processing Plants) |
| Specifications Met: | n/a |
| Inside Diameter: | 0.375 inch, 9.5 mm |
| Compatible Fitting: | HY Series |
| Hose Reinforcement Material: | 4 Plies |
| Outside Diameter: | 0.765 inch, 19.43 mm |
| Weight: | 0.21 lb/ft, 0.31 kg/ft |
| Minimum Bend Radius: | 4 inch, 102 mm |
| Maximum Operating Pressure: | 1500 psi, 103 bar |
| Application: | Food Transfer |
| Maximum Operating Temperature: | 250 °F, 121 °C |
Additional information
| Part Number | 7685-6-GRA-RL, 7685-6-YEL-RL |
|---|
