Gambrinus Red 10 SM
BfR Class 2, CE 1935/2004, DM 26744.0, FDA
Description

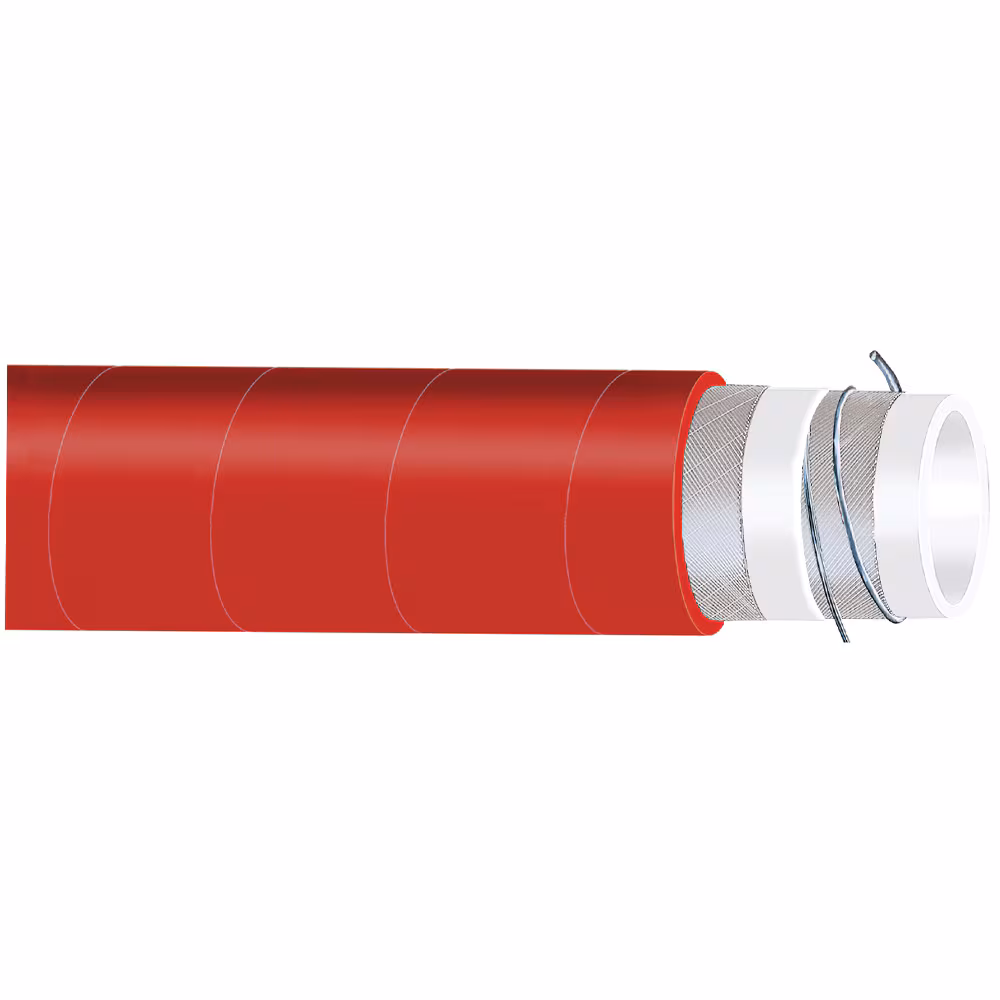

Gambrinus Red 10 bar SM is a food grade beer and wine suction and transfer hose for fixed and mobile installation.
Technical Specifications
| Weight: | 0.67 to 4.60 kg/m, 0.45 to 3.09 lb/ft |
| Industry: | Food & Beverage |
| Hose Inner Tube Material: | Ethylene Propylene Diene Monomer (EPDM), Phtalates Free, Smooth |
| Brand: | Parker |
| Maximum Operating Temperature: | 120 °C, 248 °F |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Maximum Operating Pressure: | 10 bar, 150 psi |
| Product Type: | Food Grade Hose, Transfer Hose, Suction Hose |
| Design Factor: | 3:1 |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Ethylene Propylene Diene Monomer (EPDM) |
| Vacuum Pressure Rating: | 0.9 bar, 675.06 mm-Hg, 26.58 inch-Hg |
| Materials of Construction: | Rubber |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 3.150 to 22.407 inch, 80 to 560 mm |
| Product Style: | Suction and Delivery |
| Media: | Food & Beverage |
| Specifications Met: | BfR Class 2, CE 1935/2004, DM 26744.0, FDA |
| Compatible Fitting: | Refer to www.parker.com/crimpsource-euro |
| Inside Diameter: | 3/4 to 4 inch, 19 to 102 mm |
| Length: | 20 to 40 m |
| Application: | Food & Beverage Processing |
| Hose Reinforcement Material: | Synthetic Textile Fabric with Embedded Steel Wire Helix |
| Operating Features: | Sterilization at 130 °C for Max 30 Min. |
| Outside Diameter: | 1.142 to 4.567 inch, 29 to 116 mm |
Additional information
| Part Number | IH36242501/40, IH36242502/40, IH36242503/40, IH36242504/40, IH36242505/40, IH36242506/40, IH36242507/40, IH36242508/40, IH36242509/40, IH36242510/40, IH36242511/40, IH36242512/40, IH36242513/20 |
|---|
