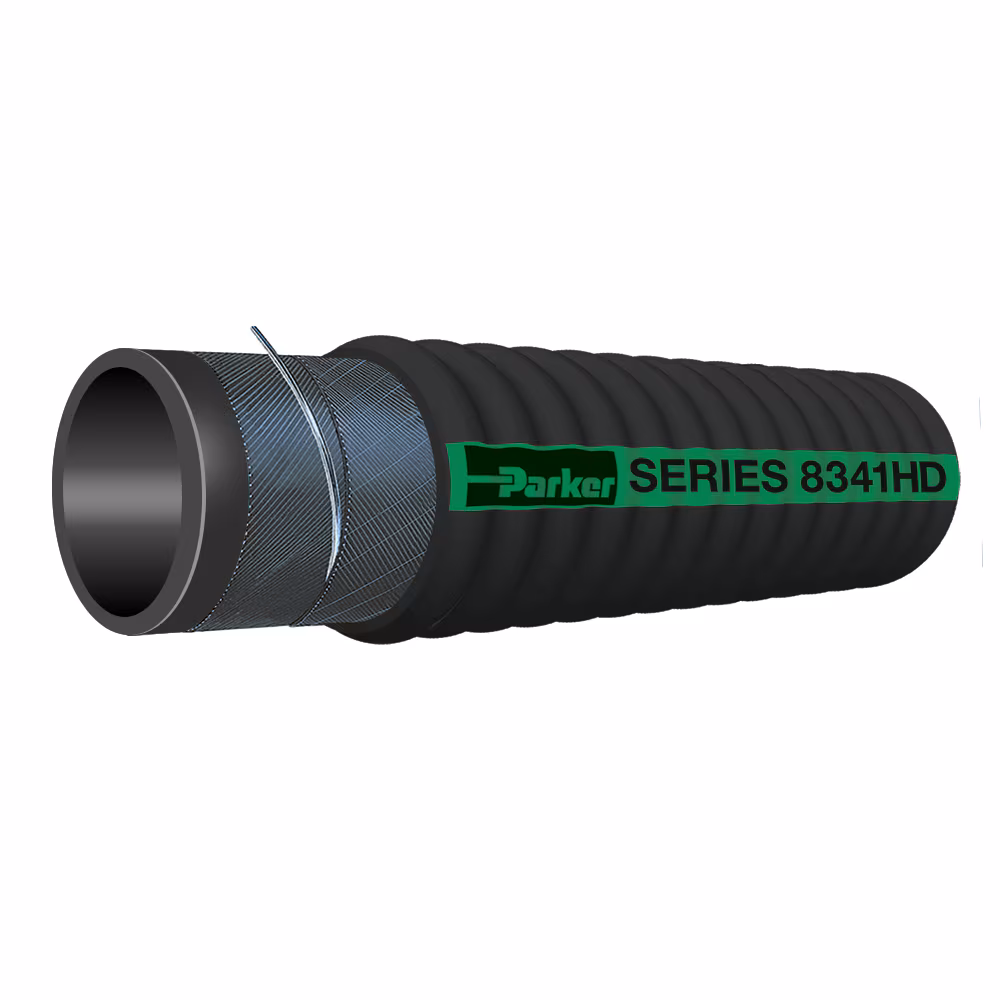

8341HD
Certification: N/A
Description
Parker’s new DAY-LITE 8341HD® designed for use in daylighting to both excavate and remove soil allowing to safely expose utility lines and underground pipes.
Technical Specifications
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Weight: | 9.8 lb/ft, 4.4 kg/ft |
| Maximum Operating Temperature: | 180 °F, 83 °C |
| Maximum Operating Pressure: | 75 psi, 5 bar |
| Minimum Bend Radius: | 28 inch, 711 mm |
| Design Factor: | 3:1 |
| Hose Inner Tube Material: | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend Static Dissipative |
| Media: | Wet Abrasive Powders |
| Specifications Met: | n/a |
| Vacuum Pressure Rating: | Full |
| Inside Diameter: | 3/16 inch, 203.2 mm |
| Quantity per Box: | 33 ft (1 continuous piece) |
| Outside Diameter: | 9.3 inch, 2.36 mm |
| Application: | Material Handling |
Additional information
| Part Number | 8341HD-8000-33 |
|---|
